YASKAWA P1000 Series

L3
L2
L1
L3 L2 L1L3 L2 L1
E
PE
L31
L21
L11
L3 L2 L1L3 L2 L1
E
PE
A
D
C
A
J
K
B
F
B
E
I
G
H
A – Make sure the ground wire is
grounded
B – Grounding surface (remove any
paint or sealant)
C – Metal plate
D – Enclosure panel
E – Drive
F – Motor cable (braided shield cable,
max. 10 m)
G – Motor
H – Cable shield ground
I – Cable clamp
J – Ground plate (scrape off any
visible paint)
K – EMC noise filter

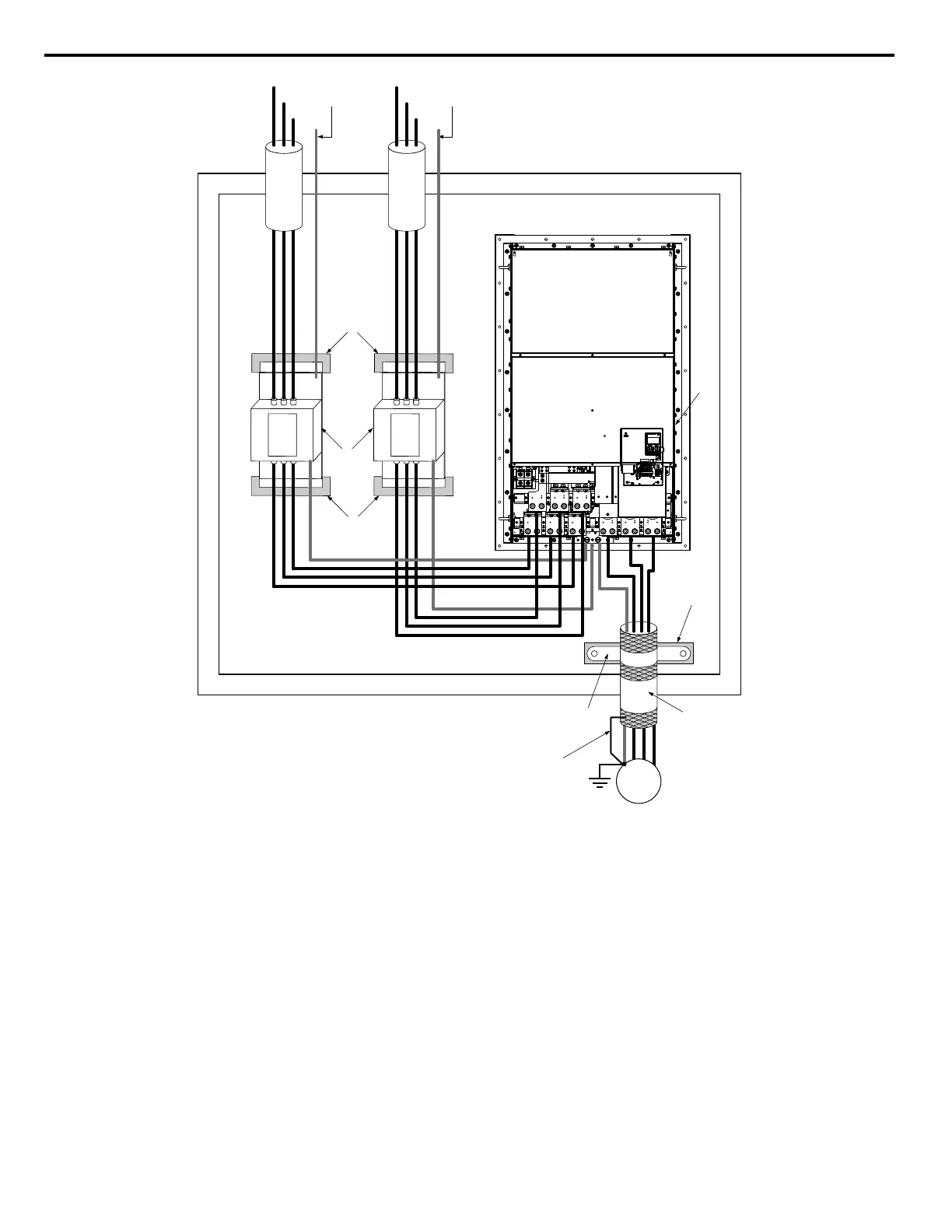

Figure 57 EMC Filter and Drive Installation for CE Compliance
10 Standards Compliance
84
YASKAWA TOEP YAIP1U 04A YASKAWA AC Drive – P1000 6-Phase/12-Pulse Input Installation Manual
