YASKAWA PROFINET V1000 User Manual

4 Option Components
10 YASKAWA ELECTRIC SIEP C730600 70B V1000 Option SI-EP3/V Technical Manual
 Communication Modular Connector CN1 Port 1/Port 2
The communication modular connector CN1 on the option is a modular dual RJ45 female connector designated port 1
and port 2. Port 1 and port 2 are the connection point for a customer supplied male Ethernet network communication
cable.

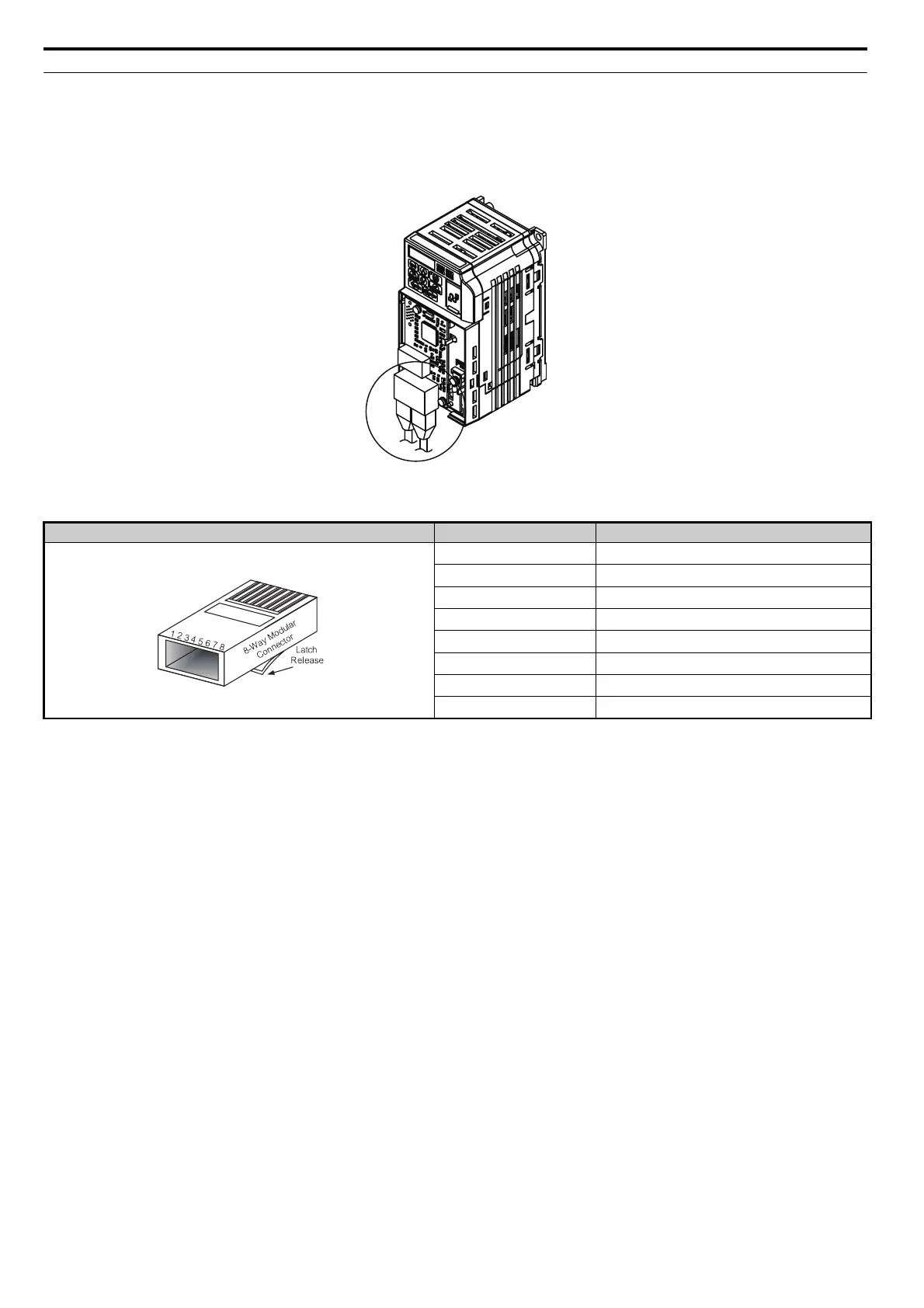

Figure 3
Figure 3 Communication Modular Connector CN1 Port 1/Port 2 (RJ45)
Table 3 Male 8-way Ethernet Modular Connector (Customer-Supplied)
Male EtherNet 8-Way Modular Connector Pin Description
1 (Pair 2) Transmit data (TXD) +
2 (Pair 2) Transmit data (TXD) -
3 (Pair 3) Receive data (RXD) +
4 (Pair 1) Not used
<1>
<1> Not used for 10 Mbps and 100 Mbps networks.
5 (Pair 1) Not used <1>
6 (Pair 3) Receive data (RXD) -
7 (Pair 4) Not used
<1>
8 (Pair 4) Not used <1>
V1000
PROFINET_E_conditional.fm 10 ページ ２０１６年６月２０日 月曜日 午後８時２分

YASKAWA PROFINET V1000 Specifications

General

Product Name	YASKAWA PROFINET V1000
Protocol	PROFINET
Series	V1000
Frequency	50/60 Hz
Protection Class	IP20
Operating Temperature	-10°C to +50°C
Humidity	95% (non-condensing)
Altitude	1000m
Storage Temperature	-20 to +60°C (-4 to 140°F)
