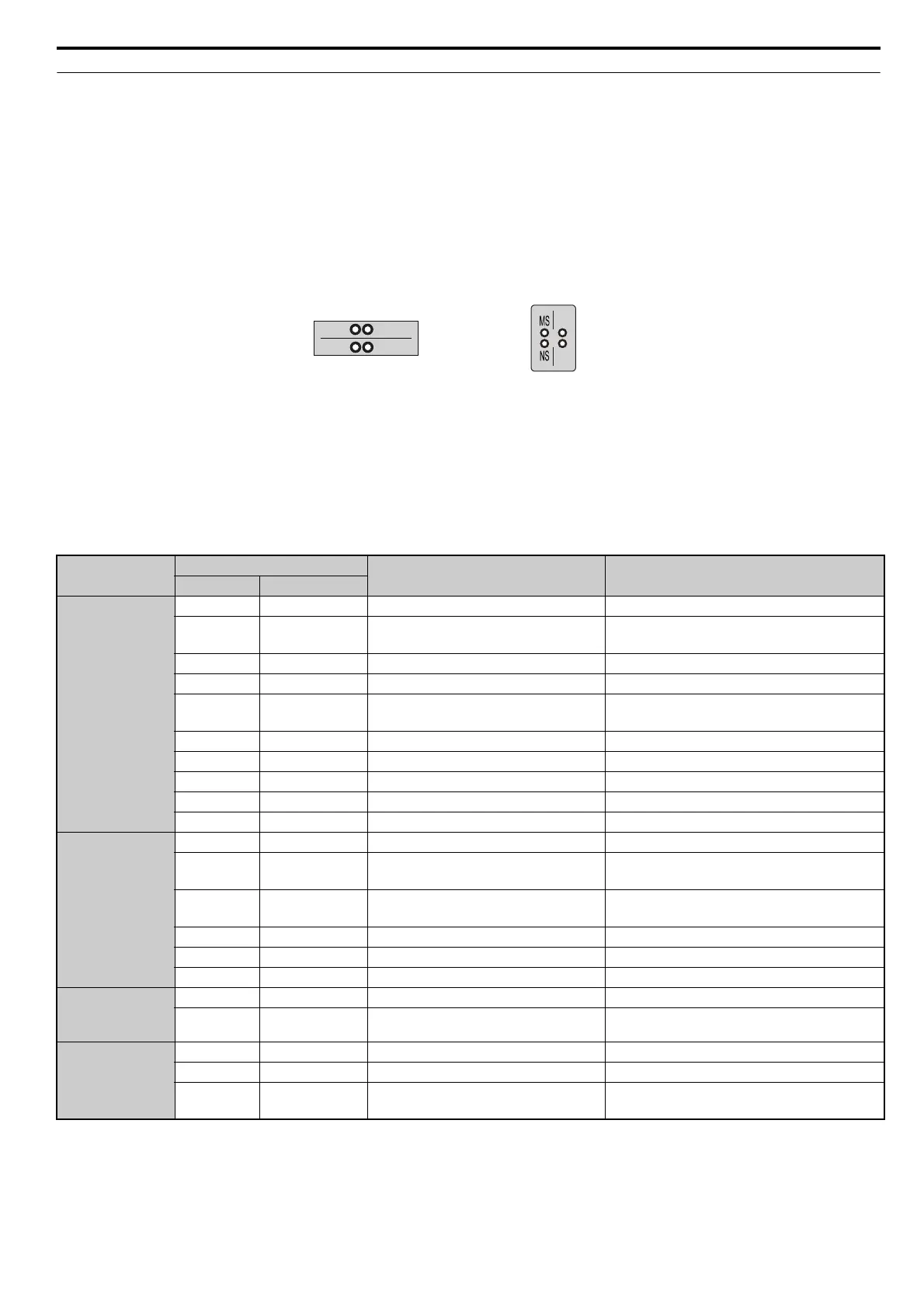

Page #11 background imageLoading...
Page #11 background image
4 Option Components
YASKAWA ELECTRIC SIEP C730600 70B V1000 Option SI-EP3/V Technical Manual 11
Option LED Display
The option has six LEDs:
Bi-color Status LEDs:
Module status (MS) red/green
Network status (NS) red/green
Ethernet LEDs (2 each):
Network speed-10/100 yellow
Link status and network activity-Link/Act green
Figure 4
Figure 4 Option LED Labels
The operational states of the option LEDs after the power-up diagnostic LED sequence is completed are described in
Tabl e 4 . The states with a number in parenthesis are the number of pulses of 250 ms on, 250 ms off cycles, followed by
500 ms off, then repeating the cycle. Wait at least 2 seconds for the power-up diagnostic process to complete before
verifying LED states.
Table 4 Option LED States
Name
Indication
Operating Status Description
Color Status
MS
(visible through
drive cover)
OFF Power supply OFF Power is not being supplied to the drive.
Green ON Option operating
The option is operating normally and
initialization is complete.
Green Flashing (1) Diagnostics Diagnostic data available.
Green Flashing (2) Configuration tool Identified by a configuration tool.
Red ON Default MAC or fatal error occurred.
Default MAC address has been programmed or
the option has detected an unrecoverable error.
Red Flashing (1) Configuration error (non-fatal) Configuration error.
Red Flashing (2) No IP (non-fatal) No IP address assigned.
Red Flashing (3) No station name (non-fatal) No station name assigned.
Red Flashing (4) Init failure (non-fatal) Failed to initialize module.
Green/Red Flashing Option self-test The option is in self-test mode.
NS
(visible through
drive cover)
OFF Offline or Power supply OFF
Green ON Connected
Connection established with I/O controller and
in RUN mode.
Green Flashing Connected and stopped
Connection established with I/O controller and
in STOP mode.
Red ON BUS fault Unrecoverable BUS fault.
Red Flashing (1) Lost communication Host communication is temporarily lost.
Red Flashing (2) Lost link No link detected to network.
10/100
(visible at
RJ45 jack)
Yellow OFF 10 Mbps is established
Yellow ON 100 Mbps is established
LINK/ACT
(visible at
RJ45 jack)
Green OFF Link is not established
Green ON Link is established
Green Flashing
Link is established and there is network
activity
GA700 Label1000-Series Label
NS MS
PROFINET_E_conditional.fm 11 ペー 2016年6月20日 月曜日 午後8時2分

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the YASKAWA PROFINET V1000 and is the answer not in the manual?

YASKAWA PROFINET V1000 Specifications

General IconGeneral
Product NameYASKAWA PROFINET V1000
ProtocolPROFINET
SeriesV1000
Frequency50/60 Hz
Protection ClassIP20
Operating Temperature-10°C to +50°C
Humidity95% (non-condensing)
Altitude1000m
Storage Temperature-20 to +60°C (-4 to 140°F)
