5 Installation Procedure
18 YASKAWA ELECTRIC SIEP C730600 70B V1000 Option SI-EP3/V Technical Manual
10. For IP66/UL Type 4X enclosure models, press firmly on the connector release tab holding the LED operator
cable (CN1) in place and disconnect the cable.

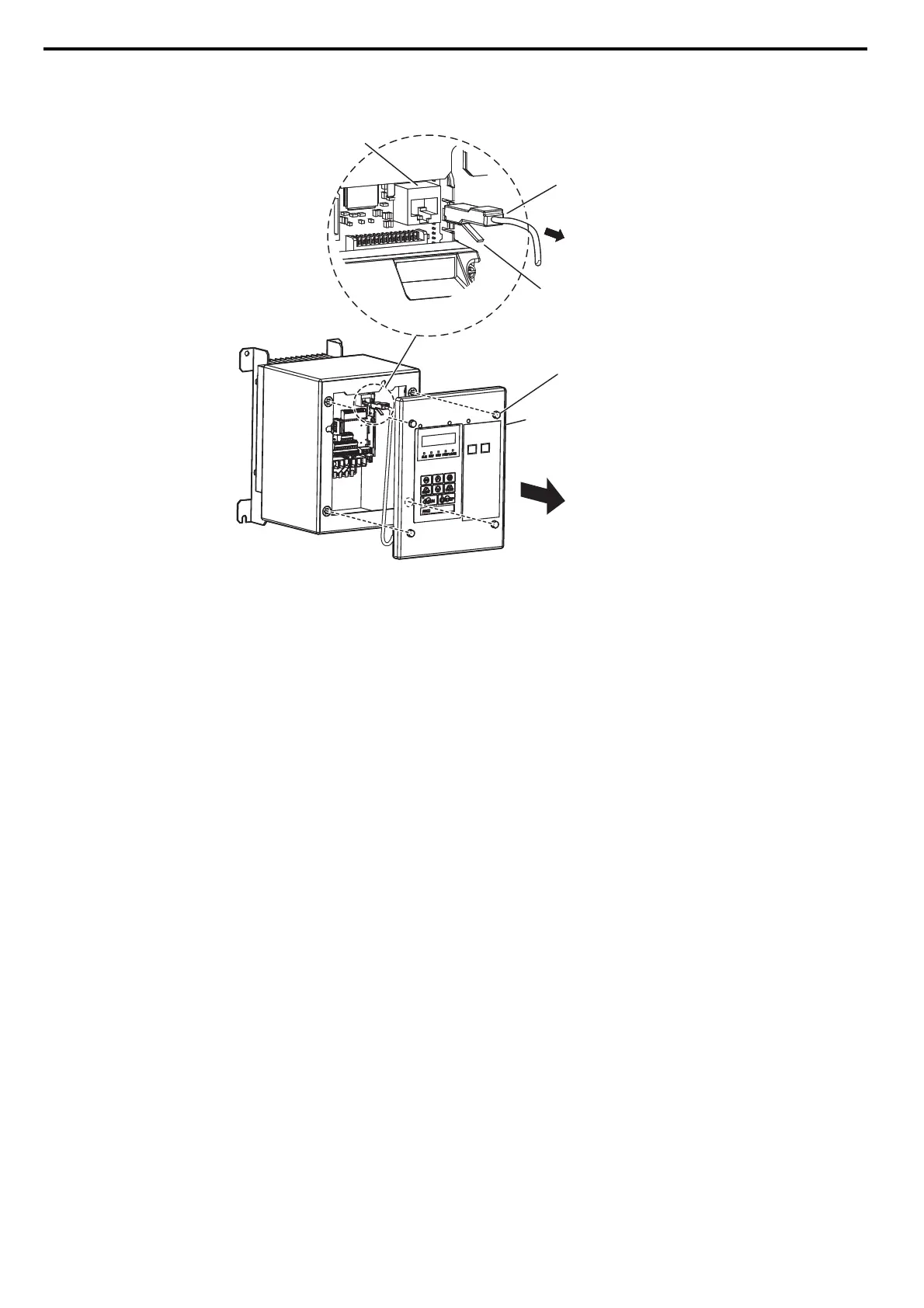

Figure 13
Figure 13 Remove the LED Operator Cable
Remove LED operator cable
Connector release tab
Front cover
Front cover bolt
CN1 connector
V1000
