5 Installation Procedure
YASKAWA ELECTRIC SIEP C730600 70B V1000 Option SI-EP3/V Technical Manual 17
7. For models CIMR-VBA0001F to BA0003F, 2A0001F to 2A0006F, loosen the screws attaching the conduit
bracket to the drive to remove the conduit bracket.

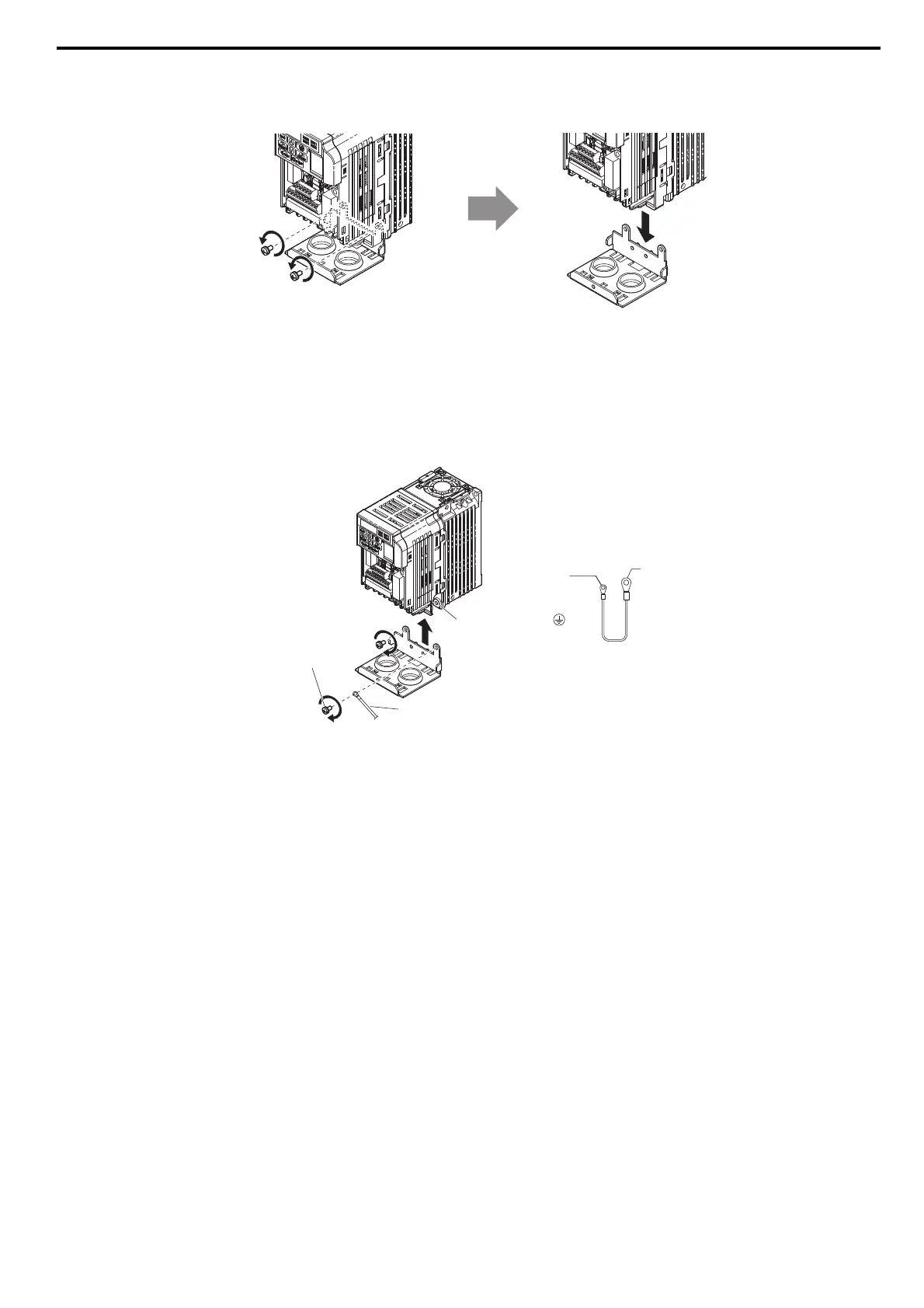

Figure 11
Figure 11 Remove the UL Type 1 Conduit Bracket
8. On UL Type 1 enclosure models (CIMR-VBA0001F to BA0003F, 2A0001F to 2A0006F), the screw for the drive
ground terminal also acts as one of the screws that attaches the conduit bracket to the drive. Reattach the
conduit bracket according to Figure 12 and connect the drive-side of the ground wire to the drive ground
terminal.
Note: The four different ground wires packaged with the option connect the option to different drive models. Select the proper ground
wire depending on drive size. Refer to Table 7 on page 16 for ground wire selection by drive model.
Figure 12
Figure 12 Reattach the UL Type 1 Conduit Bracket and Connect the Ground Wire for models
CIMR-VBA0001F to BA0003F, 2A0001F to 2A0006F
9. For IP20/UL Type 1 enclosure models, go to Step 17. on page 21.
V1000
Ground terminal
Ground wire
Drive ground terminal/
conduit bracket screw
Ground wire
Drive-side
connector
Screw size:
M3.5 to M6
Option
connector
Screw size: M3
V1000
