5 Installation Procedure
YASKAWA ELECTRIC SIEP C730600 70B V1000 Option SI-EP3/V Technical Manual 21

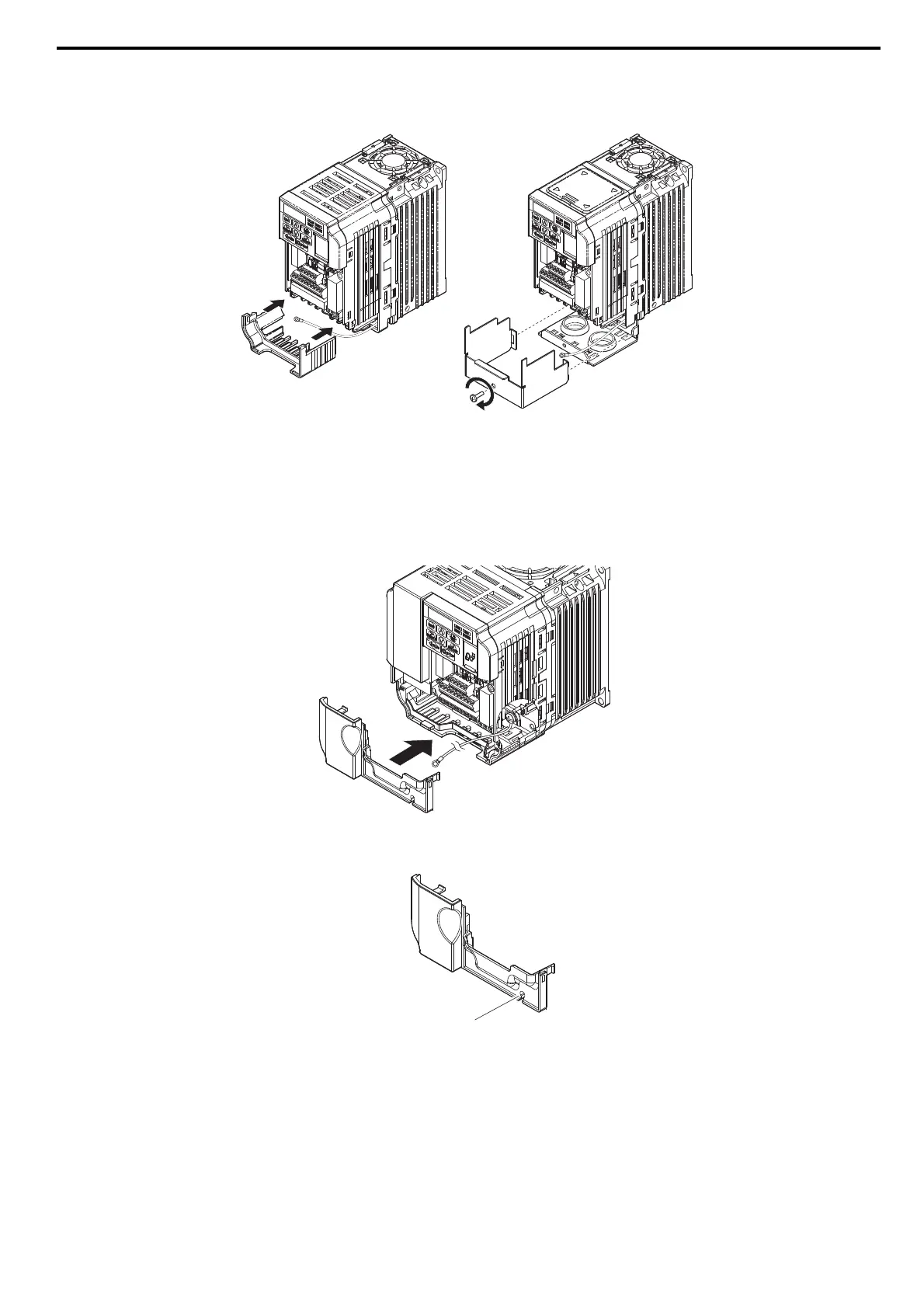

17. For IP20/Open-Chassis or IP20/UL Type 1 enclosure models, reattach the bottom cover. Keep the ground wire
inside of the bottom cover when reattaching.
Figure 19
Figure 19 Reattach the Bottom Cover
18. On models CIMR-VBA0006 to BA0018, 2A0008 to 2A0069, and 4A0001 to 4A0038, reattach the
terminal cover.
Refer to Figure 20 and Figure 21 for drive models CIMR-VBA0006 to BA0018, 2A0008 to 2A0020,
and 4A0001 to 4A0011, which require routing the ground wire through the provided notch when reinstalling
the terminal cover.
Figure 20
Figure 20 Reattach the Terminal Cover
(Models CIMR-VBA0006 to BA0018; 2A0008 to 2A0069; 4A0001 to 4A0038)
Figure 21
Figure 21 Terminal Cover Ground Wire Notch
(Models CIMR-VBA0006 to BA0018; 2A0008 to 2A0020; 4A0001 to 4A0011)
IP20/Open-Chassis IP20/UL Type 1 Enclosure
V1000
V1000
Ground wire
routing notch
V1000
