5 Installation Procedure
YASKAWA ELECTRIC SIEP C730600 70B V1000 Option SI-EP3/V Technical Manual 19
11. For IP66/UL Type 4X enclosure models, remove the lower terminal cover from the drive, if provided. Apply
pressure using fingers on the left and right tabs. Lift and pull the cover forward to release (see Figure 14).
Note: The lower terminal cover is required for secure mounting of the option on certain models. Use Table 8 to find the lower terminal
cover part number by model. Contact your Yaskawa representative for ordering, if this part is not available in your drive.

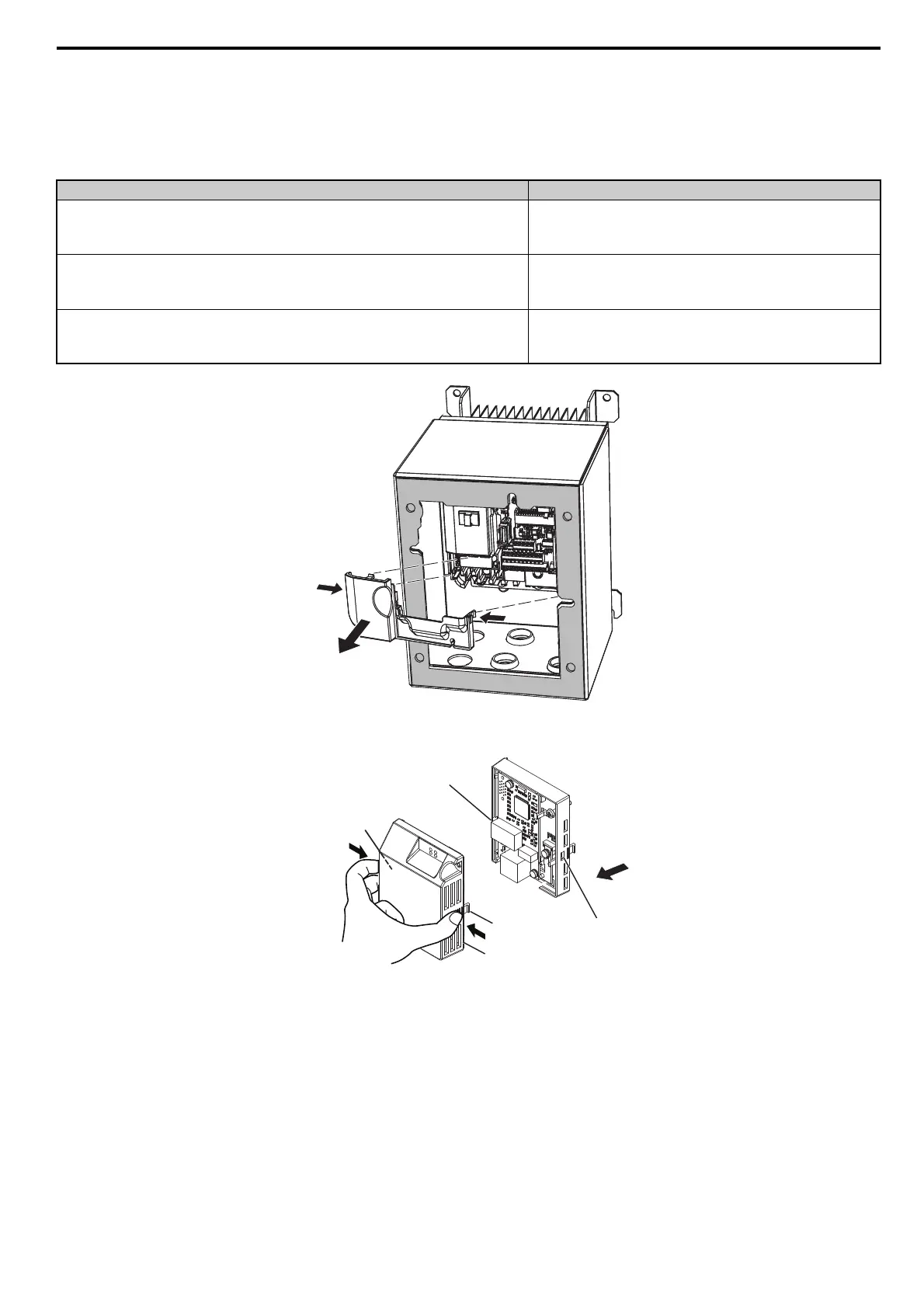

Table 8 IP66/UL Type 4X Lower Terminal Cover Part Number by Model
Figure 14
Figure 14 Remove IP66/UL Type 4X Lower Terminal Cover
12. For IP66/UL Type 4X enclosure models, remove the option cover.
Figure 15
Figure 15 Remove the Option Cover
Drive Model CIMR-V Terminal Cover Part Number
BA0006, BA0010
2A0010, 2A0012
4A0001 to 4A0009
CVST31300
BA0012
2A0020
4A0011
CVST31301
BA0001 to BA0003
2A0001 to 2A0008, 2A0018, 2A0030 to 2A0069
4A0018 to 4A0038
–
V1000
Option Cover
Mounting Tab
Mounting
Slot
Mounting
Slot
Mounting Tab
V1000
