YASKAWA PROFINET V1000 - Cyclic and Acyclic Messaging Mechanisms

8 Communication
YASKAWA ELECTRIC SIEP C730600 70B V1000 Option SI-EP3/V Technical Manual 39

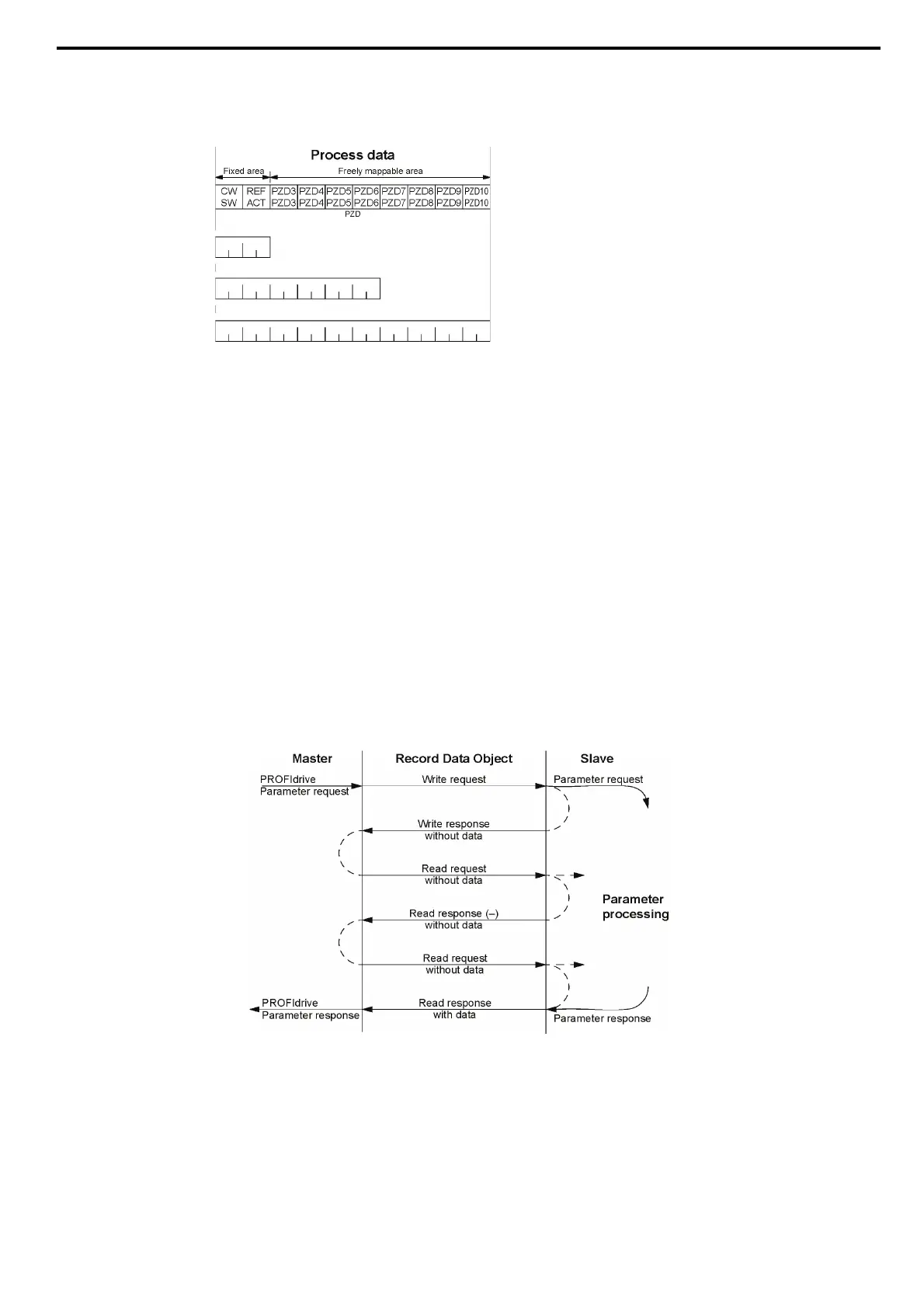

 Cyclic Messaging
SI-EP3/V supports cycle times of 8 to 512 ms.
CW: Control Word
SW: Status Word
REF: Reference
ACT: Actual Value
PZD: Configurable inputs and outputs
 Yaskawa Acyclic Parameter Access Mechanism
All drive parameters can be read and written under address 0x8000 by performing a read or write with the index value of
the corresponding parameter address in the drive. Refer to the drive Technical Manual for a list of these parameter
addresses.
 PROFIdrive Acyclic Parameter Access Mechanism
A PROFIdrive acyclic parameter access mechanism can be used to access PROFIdrive parameters and drive parameters
using an index of 0xB02E and the structure in Figure 26 for write and read requests.
Requests and responses between the IO device and the IO controller or the IO supervisor are transferred with the Record
Data Objects.
Figure 34
Figure 35 PROFIdrive Acyclic Parameter Access Mechanism Structure
