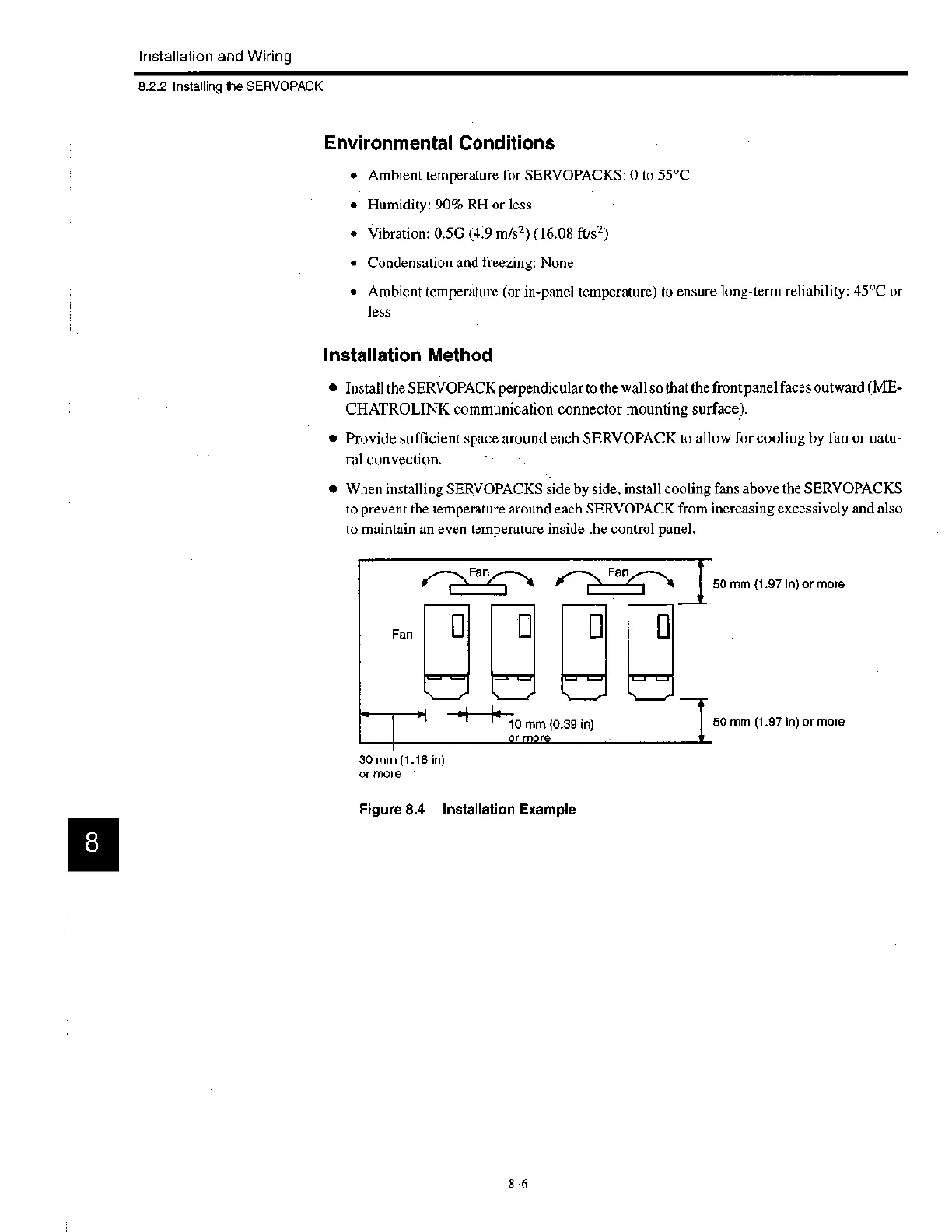

YASKAWA SGDB Series User Manual

Installation and Wiring
8.2.2 Installing the SERVOPACK
Environmental Conditions
• Ambient temperature for SERVOPACKS: 0 to 55°C
• Humidity: 90% RH or less
• Vibration: 0.5G (4.9 m/s2) (16.08 ft/s2)
• Condensation and freezing: None
• Ambient temperature (or in-panel temperature) to ensure long-term reliability: 45°C or
less
Installation Method
• Install the SERVOPACK perpendicular to the wall so that the front panel faces outward (ME-
CHATROLINK communication connector mounting surface).
• Provide sufficient space around each SERVOPACK to allow for cooling by fan or natu-
ral convection.
• When installing SERVOPACKS side by side, install cooling fans above the SERVOPACKS
to prevent the temperature around each SERVOPACK from increasing excessively and also
to maintain an even temperature inside the control panel.
Fan Fan
50 mm (1.97 in) or more
8
Fan
10 mm (0.39 in)
30 mm (1.18 in)
or more
Figure 8.4 Installation Example
50 mm (1.97 in) or more
8 -6

YASKAWA SGDB Series Specifications

General

Series	SGDB
Category	Servo Drives
Control Method	Sine-wave PWM control
Communication Interface	MECHATROLINK-II, MECHATROLINK-III
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Encoder error
Ambient Temperature	0°C to 55°C (non-freezing)
Vibration Resistance	5.9 m/s2 at 10 to 55 Hz
Shock Resistance	49 m/s2
Humidity	90% RH or less (non-condensing)
