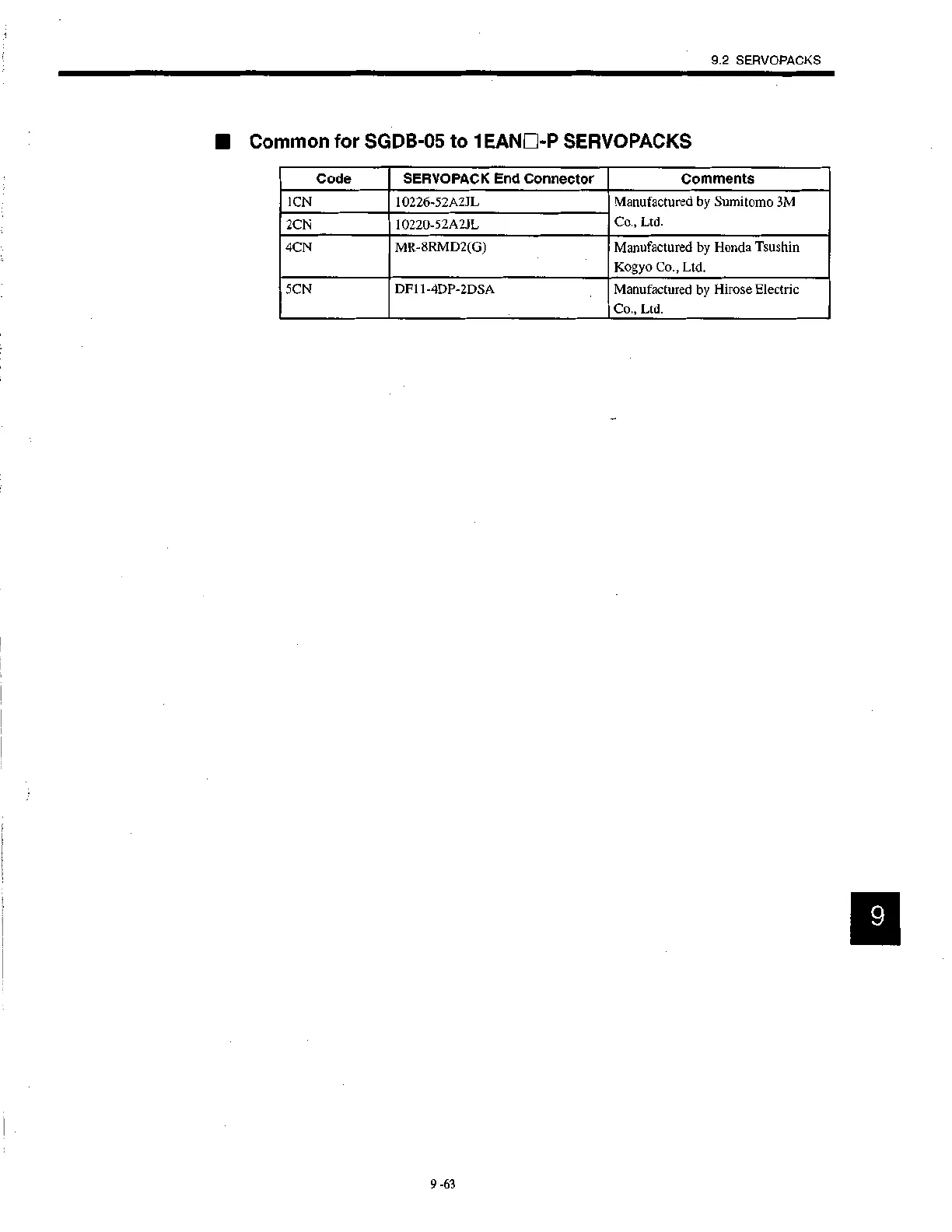

9.2 SERVOPACKS

Code

SERVOPACK End Connector Comments

1CN

10226-52A2JL Manufactured by Sumitomo 3M

Co., Ltd.

2CN 10220-52A2JL

4CN MR-8RMD2(G)

Manufactured by Honda Tsushin

Kogyo Co., Ltd.

5CN

DF11-4DP-2DSA

Manufactured by Hirose Electric

Co., Ltd.

■ Common for SGDB-05 to lEAND-P SERVOPACKS
