EN 16 YASKAWA Europe TOMP_C710606_75A V1000 IP66 - Quick Start Guide
4 Keypad Operation
4 Keypad Operation

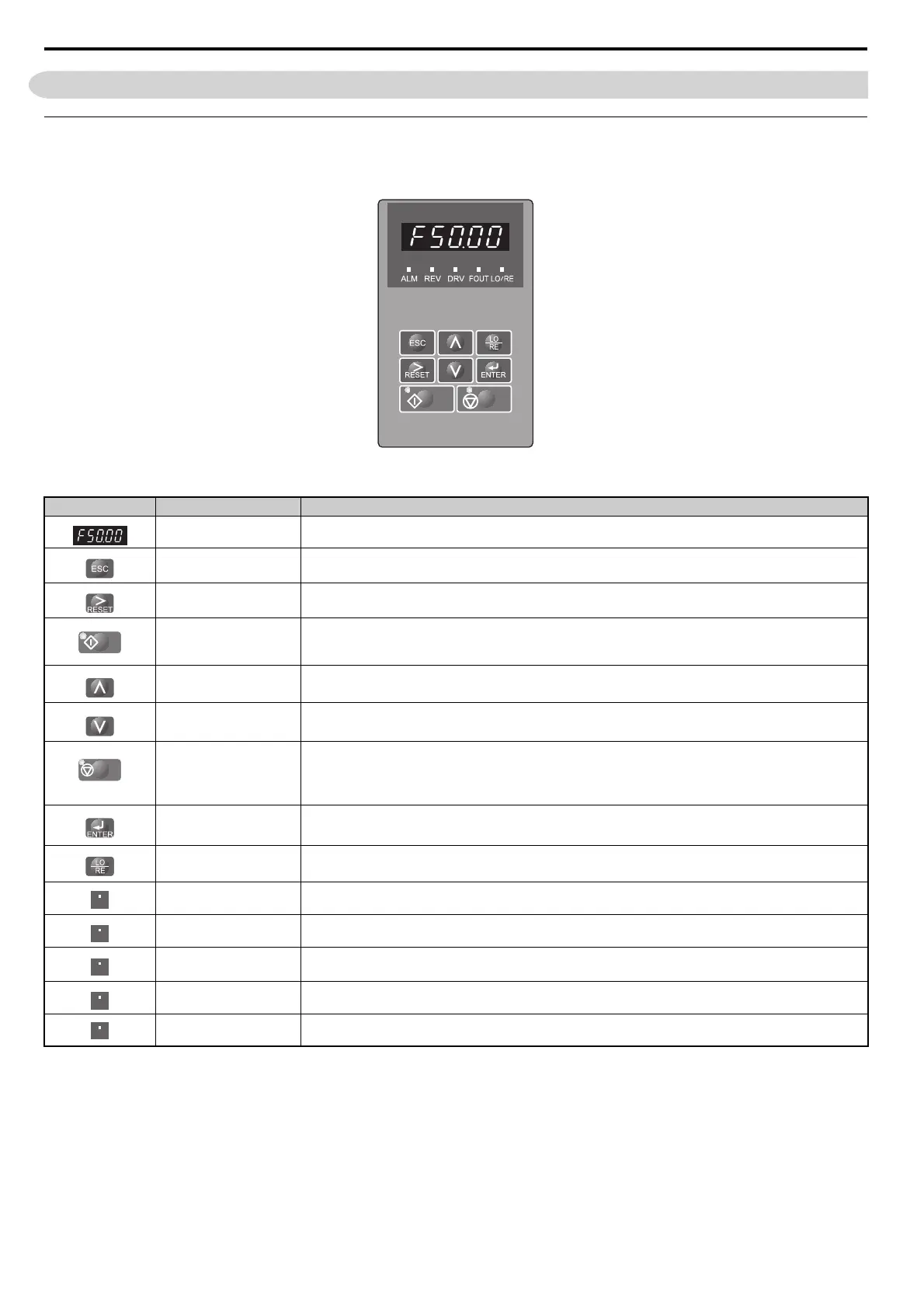

LED Operator and Keys
The LED operator is used to program the drive, to start/stop it, and to display fault information. The LEDs indicate the drive status.
Keys and Functions
Display Name Function
Data Display Area Displays the frequency reference, parameter number, etc.
ESC Key Returns to the previous menu.
RESET Key
Moves the cursor to the right.
Resets a fault.
RUN Key
Starts the drive in the LOCAL mode. The Run LED
is on, when the drive is operating the motor.
flashes during deceleration to stop or when the frequency reference is 0.
Up Arrow Key Scrolls up to select parameter numbers, setting values, etc.
Down Arrow Key Scrolls down to select parameter numbers, setting values, etc.
STOP Key
Stops the drive in the LOCAL mode. The Stop LED
• is on when the drive is not operating the motor.
• flashes during deceleration at a fast-stop or stop by interlock operation.
• is off during run, deceleration to stop, or when the frequency reference is 0.
ENTER Key Selects modes, parameters and is used to store settings.
LO/RE Selection Key Switches drive control between the operator (LOCAL) and the control circuit terminals (REMOTE).
ALM LED Light
Flashing: The drive is in an alarm state.
On: The drive is in a fault state and the output is stopped.
REV LED Light
On: The motor rotation direction is reverse.
Off: The motor rotation direction is forward.
DRV LED Light
On: The drive is ready to operate the motor.
Off: The drive is in the Verify, Setup, Parameter Setting or Auto tuning mode.
FOUT LED Light
On: The output frequency is displayed on the data screen.
Off: Anything else than the output frequency is displayed on the data screen.
LO/RE LED Light
On: The drive is in the LOCAL mode.
Off: The drive is in the REMOTE mode.
RUN
STOP
RUN
STOP
ALM
REV
DRV
FOUT
LO
/
RE
TOMP_C710606_75A_0_0_prePrint.pdf 48 21.12.2010 13:52:24
