VAN-V19001E [V1000→GA500]
9/35

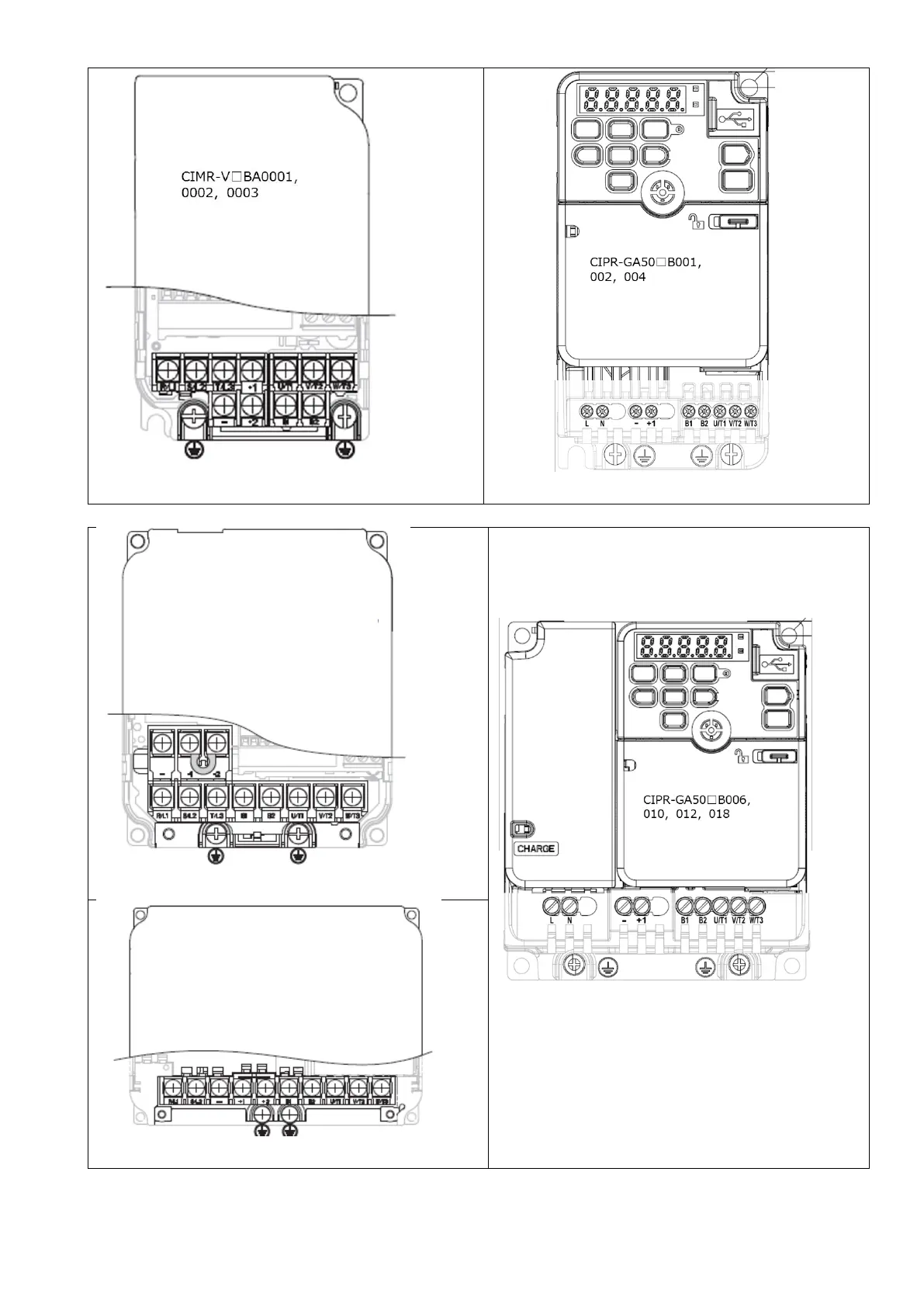

Figure 11: V1000 main circuit terminal layout (single-phase)
(VBA0006 to 12)
Figure 13: GA500 main circuit terminal layout (single-
phase) (GA50B006 to 18)
Figure 12: V1000 main circuit terminal layout (single-phase)
(VBA0018)
Figure 9: V1000 main circuit terminal layout (single-phase)
(VBA0001 to 03)
Figure 10: GA500 main circuit terminal layout (single-phase)
(GA50B001 to 004)
Model type:
CIMR-VBA0006, 0010, 0012
Model type:
CIMR-VBA0018
Model type:
Model type:
Model type:
