YASKAWA V1000 Replacing Guide

VAN-V19001E [V1000→GA500]
22/35
4. Mounting Dimensions and Peripheral Devices
4-1. External Dimensions and Mounting Dimensions
The GA500 standard specifications are IP20-certified.
Install the optional UL Type 1 kit to change the GA500 enclosure type to UL TYPE 1.
Note: The GA500 mounting hole size is larger than the V1000 but the screws for installing the V1000 can be used to
install the GA500.
V1000
GA500
Enclosure type: IP20 (supported as standard)
Enclosure type: UL Type 1 (supported via an option)

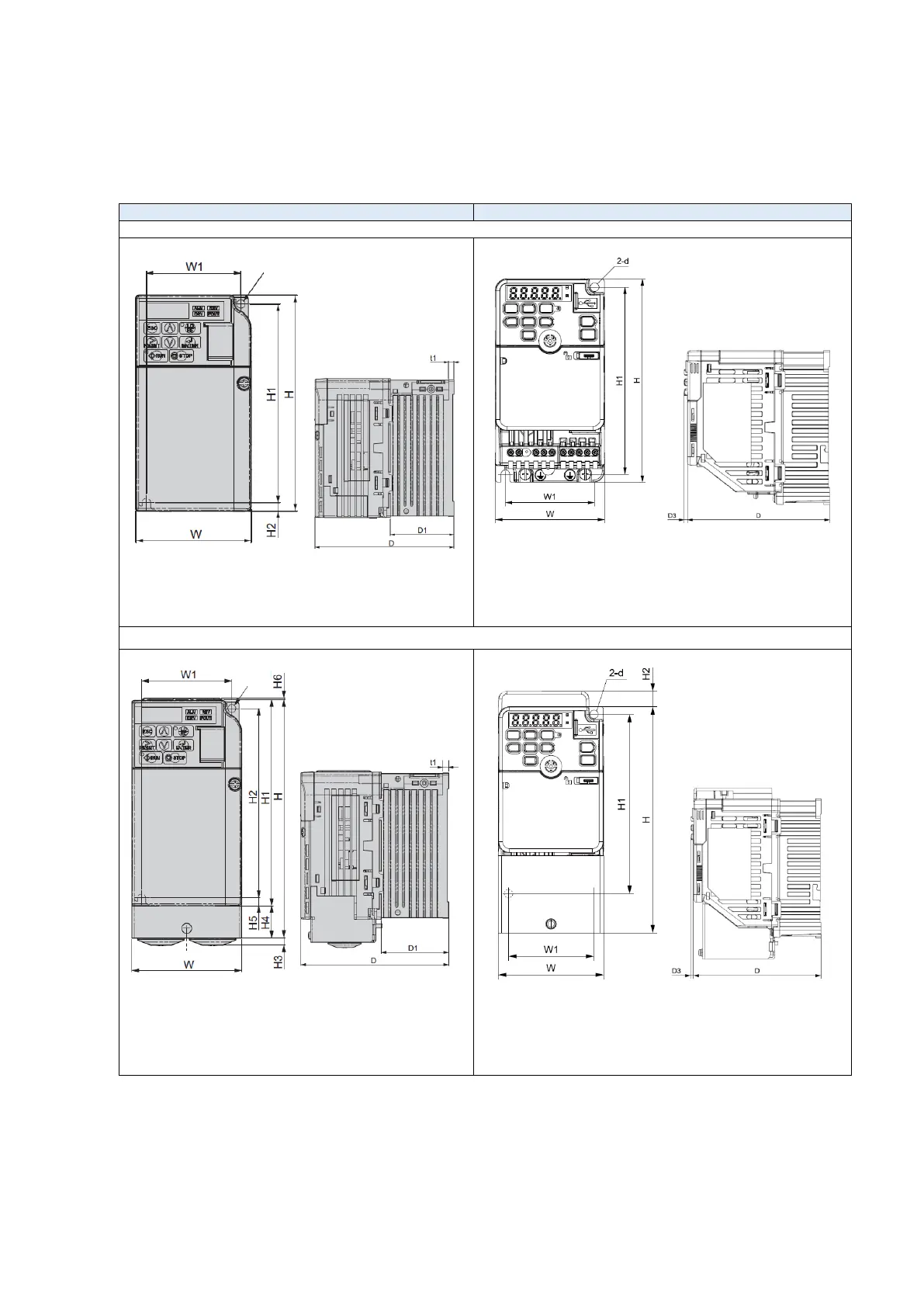

Figure 17: External and mounting dimensions for the V1000 and GA500
For 2-M4
For
2-M4

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
