4 Option Components
14 YASKAWA ELECTRIC TOBP C730600 60C V1000 Option SI-EN3/V Installation Manual
u Communication Connector CN1
The communication connector on the option is a modular RJ45 female connector designated
CN1.
CN1 is the connection point for a customer-supplied male Ethernet network communication
cable.
Figure 3

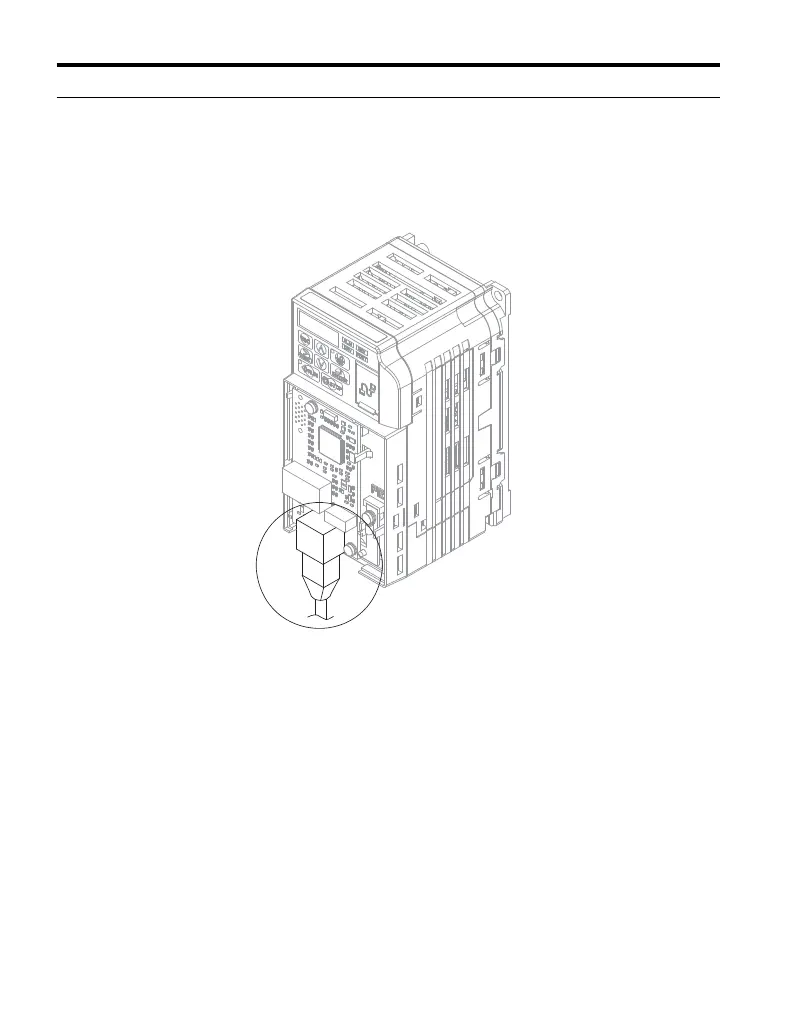

Figure 3 Communication connector CN1 (RJ45)
