4 Option Components

YASKAWA ELECTRIC TOBP C730600 60C V1000 Option SI-EN3/V Installation Manual 15

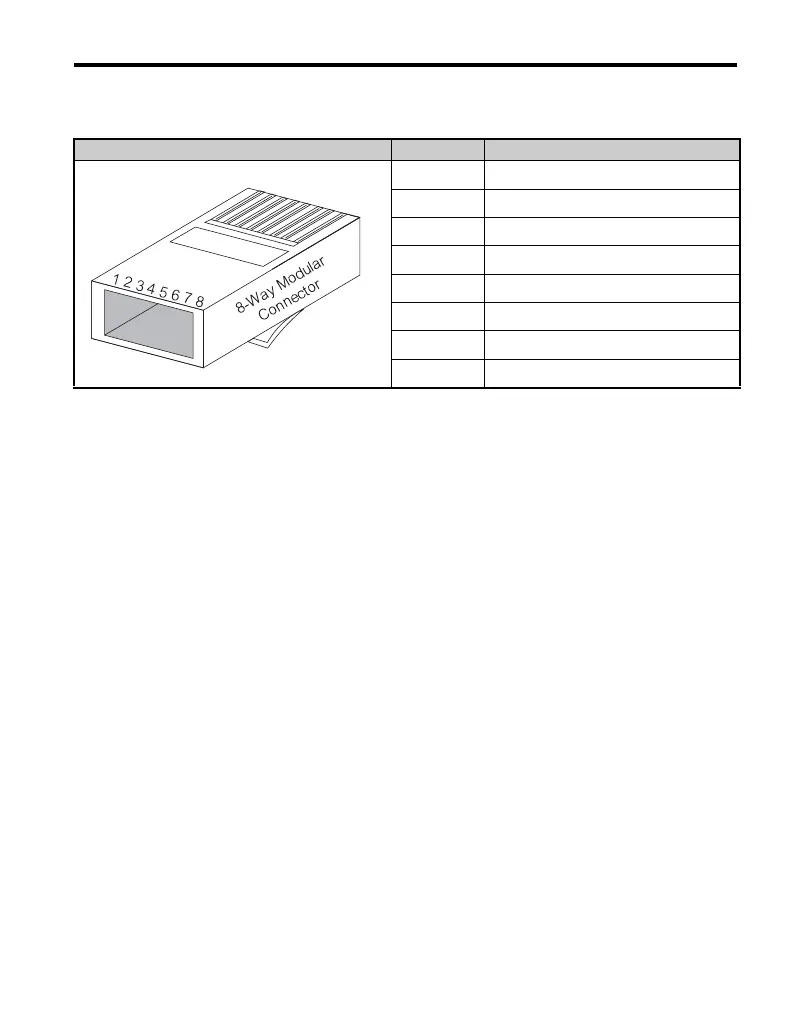

Table 3 Male 8-way Ethernet Modular Connector (Customer Supplied)

Male EtherNet 8-Way Modular Connector Pin Description

1 (Pair 2) Transmit data (TXD) +

2 (Pair 2) Transmit data (TXD) -

3 (Pair 3) Receive data (RXD) +

4 (Pair 1) Not used

<1>

<1> Not used for 10 Mbps and 100 Mbps networks.

5 (Pair 1) Not used

<1>

6 (Pair 3) Receive data (RXD) -

7 (Pair 4) Not used

<1>

8 (Pair 4) Not used <1>
