5 Installation Procedure

YASKAWA ELECTRIC TOBP C730600 60C V1000 Option SI-EN3/V Installation Manual 31

Connection Diagram

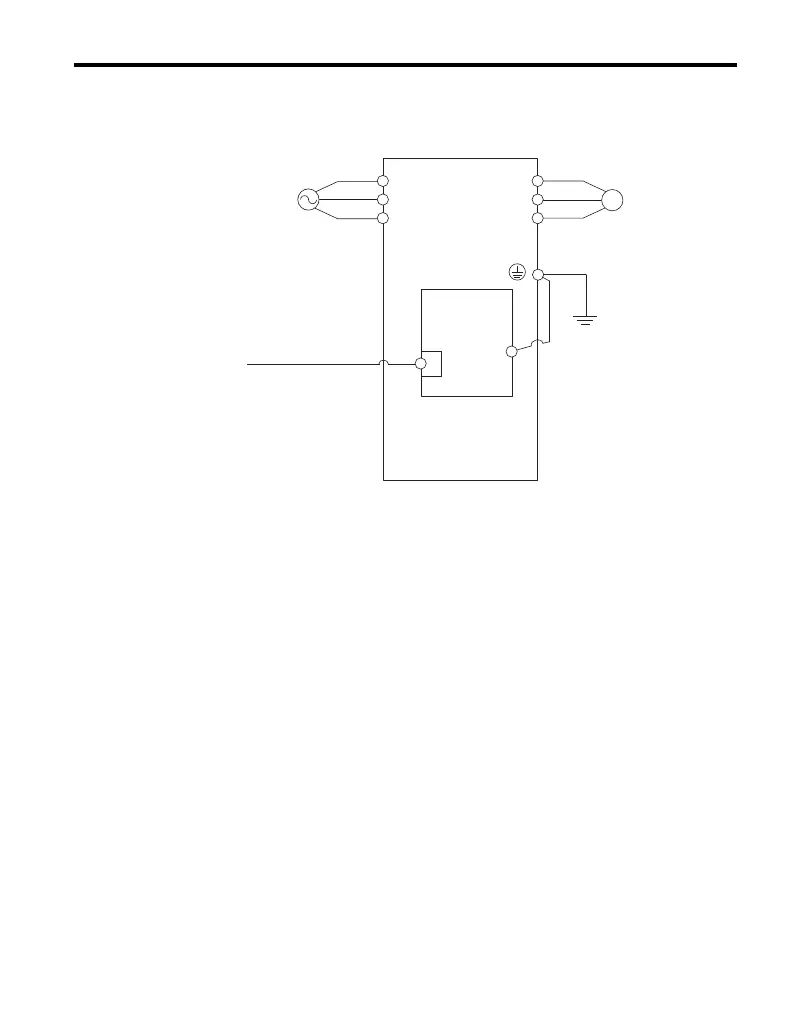

Figure 19 Wiring Diagram

<1> The ground wire provided in the option shipping package must be connected during installation.

V1000

M

U

V

W

R

S

T

SI-EN3/V

EtherNet/IP

Option

FE

<1>

EtherNet/IP Master

EtherNet/IP Cable

Moto

r

Power

V1000
