Attach the option cover by aligning the tabs with the mounting holes, seat the front
cover into place, and tighten the screw on the front.

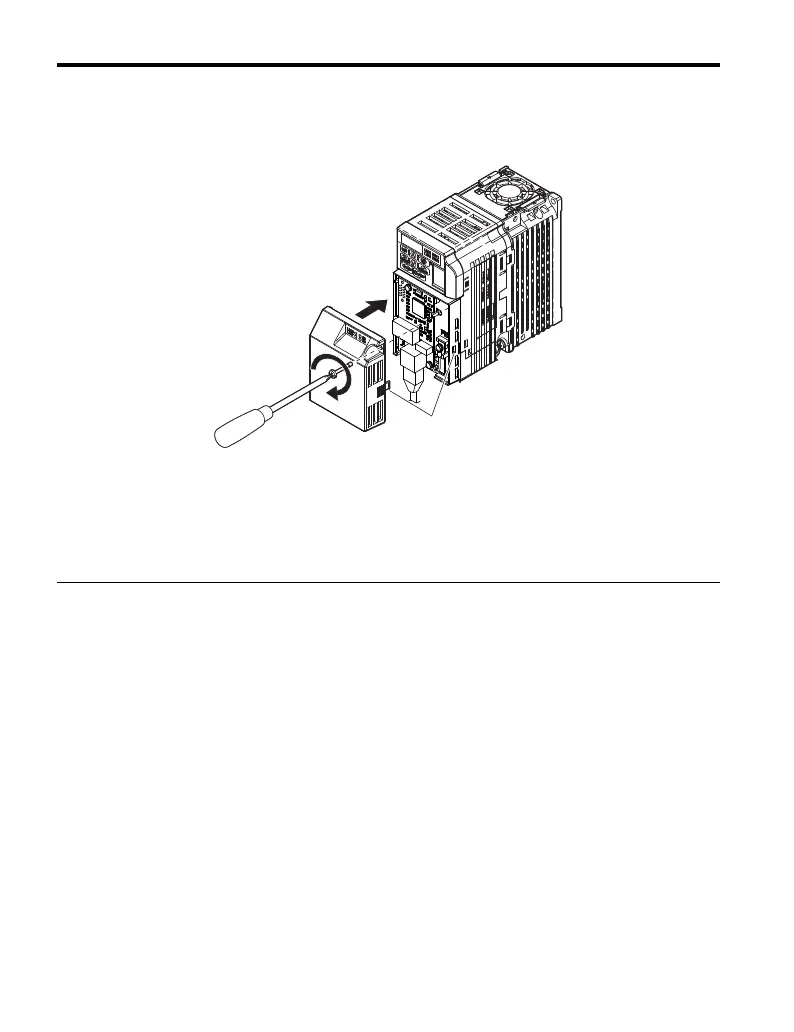

Figure 19
Figure 20 Attach the Option Cover
Note: Take proper precautions when wiring the option so that the front covers will easily fit back onto
the drive. Make sure no cables are pinched between the front covers and the drive when
replacing the covers.
16.
Set drive parameters in Table 6 for proper option performance.
u
EDS Files
For easy network implementation of drives equipped with the option, an EDS file can be
obtained from:
U.S.: http://www.yaskawa.com
Europe: http://www.yaskawa.eu.com
Japan: http://www.e-mechatronics.com
Other areas: Check the back cover of these manuals.
Note: Download the EDS file for SI-EN3/V option. The SI-EN3/V will not function as a slave in the
network without the appropriate EDS file.
