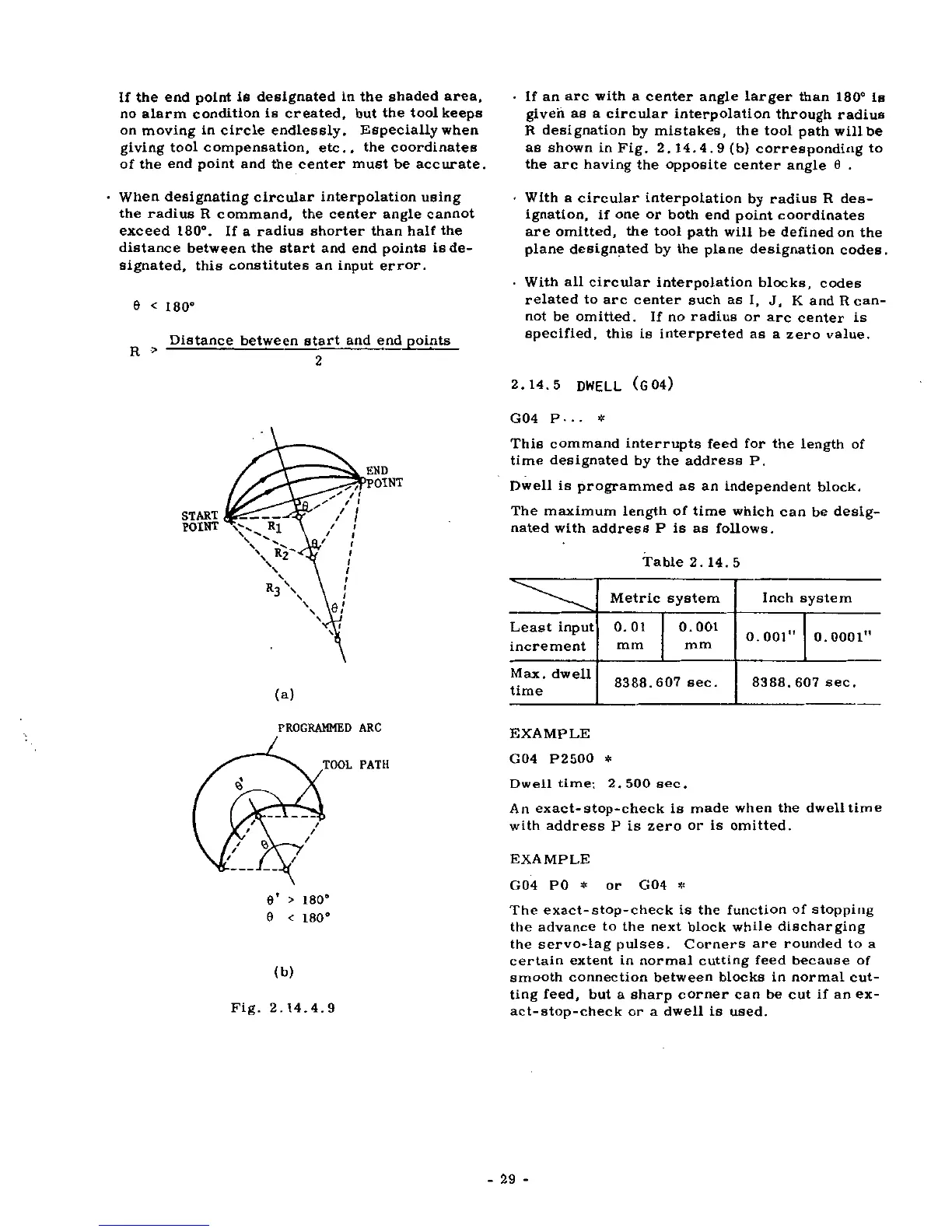

If
the
end
point
is
designated
in
the
shaded
area,
no
alarm
condition
is
created,
but
the
tool
keeps
on
moving
in
circle
endlessly.
Especially
when
giving
tool
compensation,
etc.,
the
coordinates
of
the
end
point
and
the
center
must
be
accurate.
If
an
arc
with
a
center
angle
larger
than
180°
is
given
as
a
circular
interpolation
through
radius
R
designation
by
mistakes,
the
tool
path
will
be
as
shown
in
Fig.
2.
14.4.9
(b)
corresponding
to
the
arc
having
the
opposite
center
angle
0
.
When
designating
circular
interpolation
using
the
radius
R
command,
the
center
angle
cannot
exceed
180°.
If
a
radius
shorter
than
half
the
distance
between
the
start
and
end
points
is
de¬
signated,
this
constitutes
an
input
error.
With
a
circular
interpolation
by
radius
R
des¬
ignation,
if
one
or
both
end
point
coordinates
are
omitted,
the
tool
path
will
be
defined
on
the
plane
designated
by
the
plane
designation
codes.
With
all
circular
interpolation
blocks,
codes
related
to
arc
center
such
as
I,
J,
K
and
R
can¬
not
be
omitted.
If
no
radius
or
arc
center
is
specified,
this
is
interpreted
as
a
zero
value.
0
<
180°
Distance
between
start
and
end
points
R
>
2
2.14.5
DWELL
(604)
G04
P-..
*
This
command
interrupts
feed
for
the
length
of
time
designated
by
the
address
P.
Dwell
is
programmed
as
an
independent
block.
The
maximum
length
of
time
which
can
be
desig¬
nated
with
address
P
is
as
follows.
END
'OINT
77-
START
POINT
Rl
\
t
Table
2.14.5
/
i
I
R3\
I
Inch
system
Metric
system
0.001
Least
input
increment
0.
01
0.001"
0.0001"
mm
mm
Max.
dwell
time
8388.
607
sec.
8388.
607
sec.
(a)
PROGRAMMED
ARC
EXAMPLE
G04
P2500
*
TOOL
PATH
6’
Dwell
time:
2.500
sec.
An
exact-stop-check
is
made
when
the
dwell
time
with
address
P
is
zero
or
is
omitted.
/
/
EXAMPLE
G04
P0
*
or
G04
*
The
exact-stop-check
is
the
function
of
stopping
the
advance
to
the
next
block
while
discharging
the
servo-lag
pulses.
Corners
are
rounded
to
a
certain
extent
in
normal
cutting
feed
because
of
smooth
connection
between
blocks
in
normal
cut¬
ting
feed,
but
a
sharp
corner
can
be
cut
if
an
ex¬
act-stop-check
or
a
dwell
is
used.
0’
>
180°
0
<
180°
(b)
Fig.
2.14.4.9
-
29
-
