YASKAWA Z1000 User's Manual Supplement

14 Replace Table D.7 on page 338
uu
Precautionary Notes on External Heatsink (IP00/Open-Type Enclosure)
When using an external heatsink, UL compliance requires covering exposed capacitors in the main circuit to prevent injury
to surrounding personnel.
The portion of the external heatsink that projects out can be protected with the enclosure or with the appropriate capacitor
cover after completing drive installation. Use Table D.7 to match drive models with available capacitor covers. Order capacitor
covers from a Yaskawa representative or directly from the Yaskawa sales department.

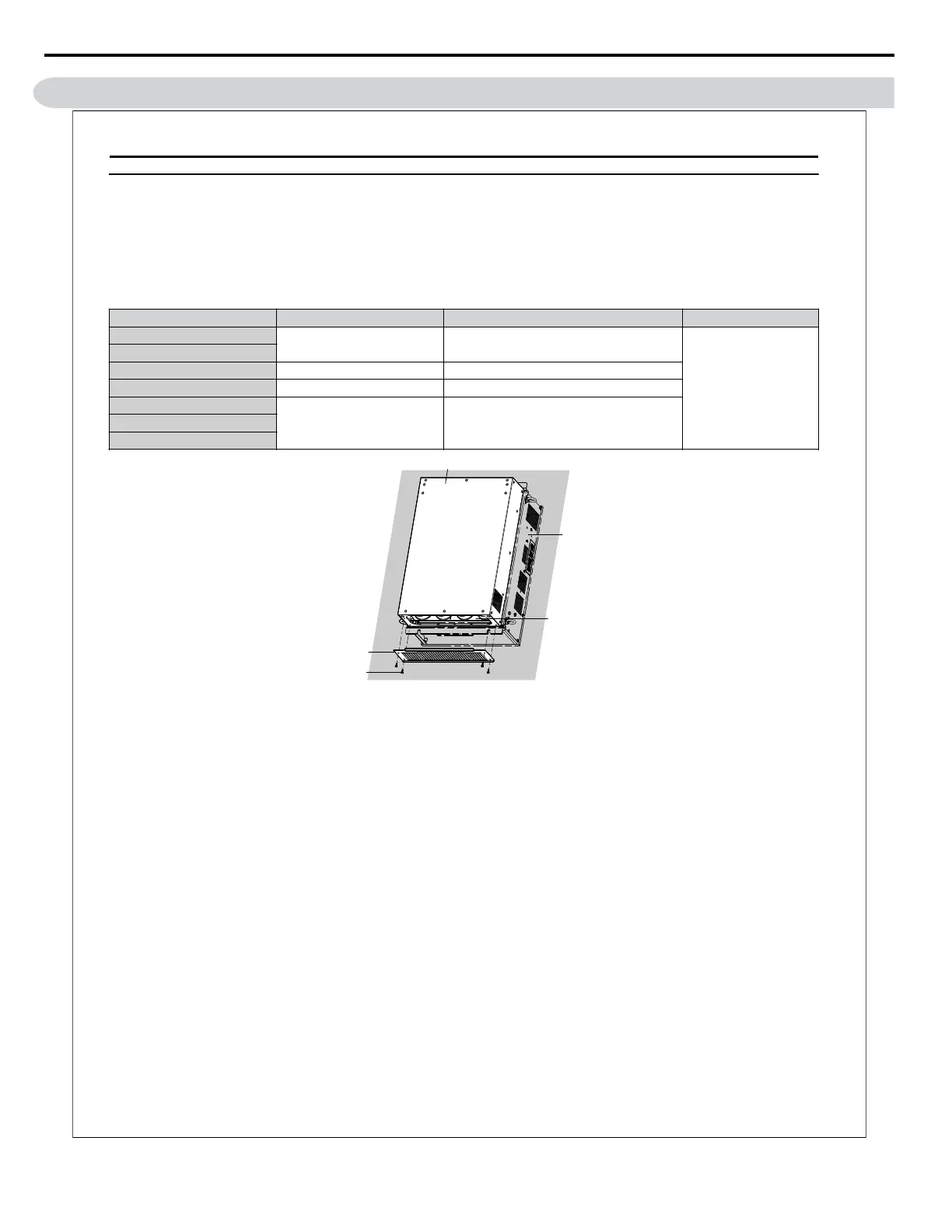

Table D.7 Capacitor Cover
Model CIMR-Zoo
Code Number Model Figure
2A0343
100-061-278 ECAT31698-11
Figure D.9
2A0396
4A0361 100-061-278 ECAT31698-11
4A0414 100-061-279 ECAT31740-11
4A0480
100-061-280 ECAT31746-114A0515
4A0590
A
B
C
D
E
A– Drive (outside panel)
B– Drive (inside panel)
C– Opening to capacitors
D– Installation screws
E – Capacitor cover
Figure D.9 Capacitor Cover
D.3 UL/cUL Standards
352
YASKAWA ELECTRIC TOEP C710616 45B YASKAWA AC Drive – Z1000 User Manual
14 Replace Table D.7 on page 338
24
YASKAWA TOEP YAISUP 04A YASKAWA AC Drive – Z1000 User Manual Supplement

YASKAWA Z1000 Specifications

General

Model	Z1000
Category	Controller
Humidity	95% RH or less (non-condensing)
Control Method	V/F Control
Frequency Range	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 meters without derating
Cooling Method	Forced Air
Enclosure Rating	IP20
Voltage Class	200V, 400V
