YASKAWA Z1000 User's Manual Supplement

12 Replace Table D.2 on page 333
nn
EMC Filters
Install the drive with the EMC filters listed below for CIMR-Zo2A0343, 2A0396, and 4A0361 to 4A0590.
Table D.2 EN61800-3 Filters
Model CIMR-Zoo
Filter Data (Manufacturer: Schaffner)
Type Rated Current (A) Weight (lb)
Dimensions
[W x D x H] (in)
Y x X (in)
Three-Phase 200 V Class
2A0343
2A0396
FS5972-600-99 600 24.3 10.2 × 5.3 × 15.2 9.3 × 4.7
Three-Phase 400 V Class
4A0361 FS5972-410-99 410 23.1 10.2 × 4.5 × 15.2 9.3 × 4.7
4A0414
4A0480
FS5972-600-99 600 24.3 10.2 × 5.3 × 15.2 9.3 × 4.7
4A0515
4A0590
FS5972-800-99 800 69.4 11.8 × 6.3 × 28.2 10.8 × 8.3
H
D
W
Y
XX

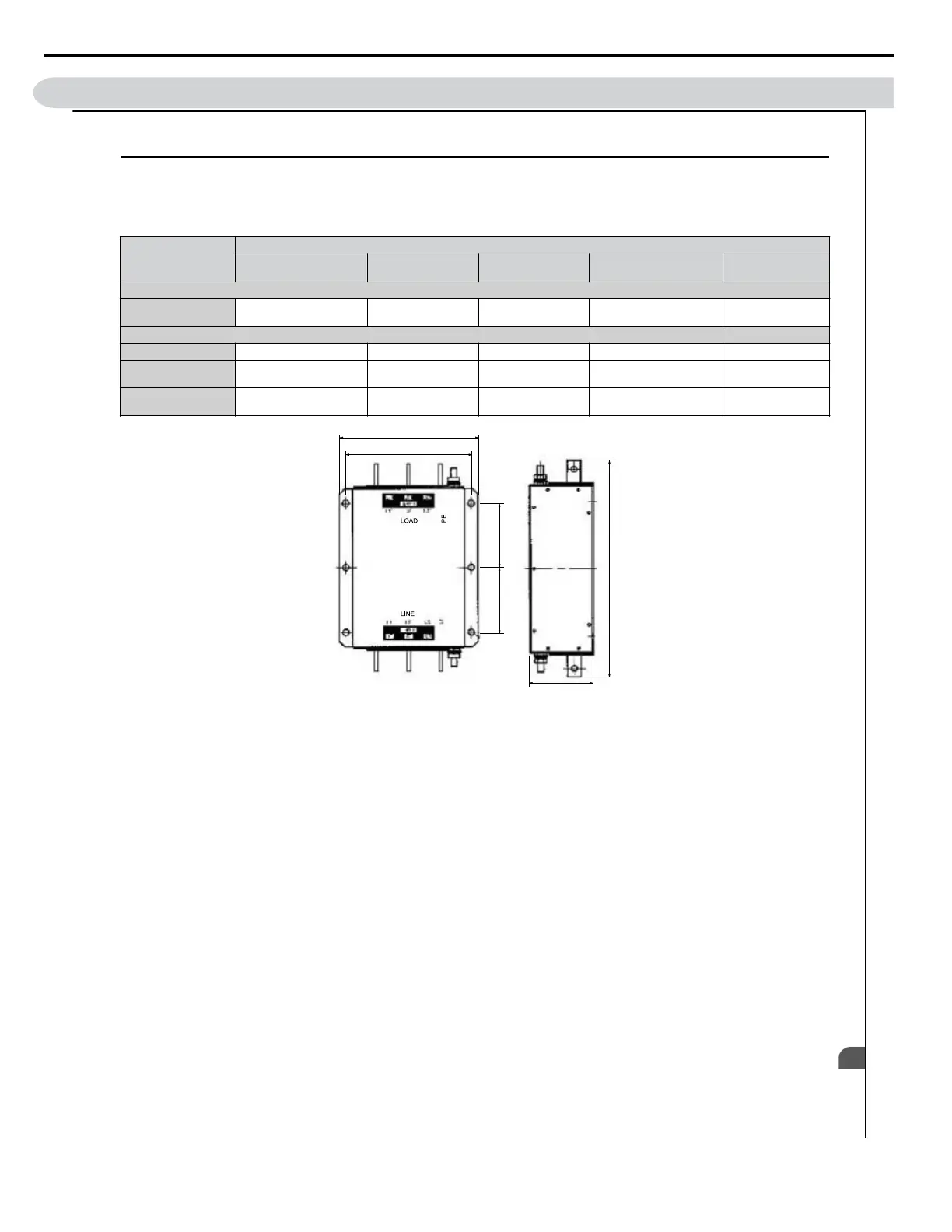

Figure D.6 EMC Filter Dimensions
D.2 European Standards
YASKAWA ELECTRIC TOEP C710616 45B YASKAWA AC Drive – Z1000 User Manual
347
D
Standards Compliance
12 Replace Table D.2 on page 333
22
YASKAWA TOEP YAISUP 04A YASKAWA AC Drive – Z1000 User Manual Supplement
