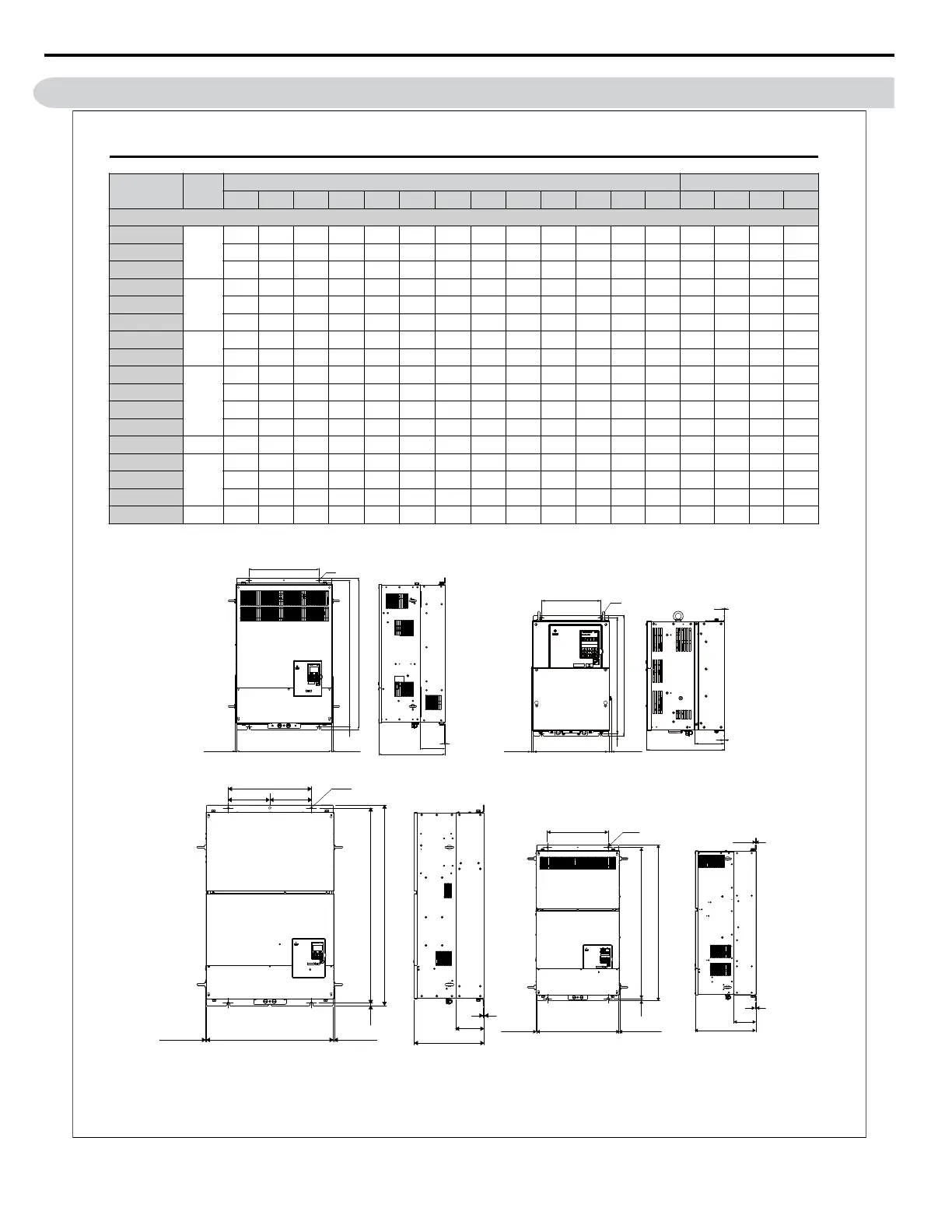

YASKAWA Z1000 User's Manual Supplement

4 Replace pages 51 and 52
Drive Model
CIMR-Zoo
Figure
Dimensions (in) Diameter (in)
W D W1 W2 W3 W4 W5 D1 D2 D3 D4 D5 D6 d5 d6 d7 d8
400 V Class
4A0005F
1
1.42 4.15 1.08 - - - - 3.43 3.07 1.74 - - - 0.87 1.10 1.38 -
4A0008F 1.42 4.15 1.08 - - - - 3.43 3.07 1.74 - - - 0.87 1.10 1.38 -
4A0011F 1.42 4.15 1.08 - - - - 3.43 3.07 1.74 - - - 0.87 1.10 1.38 -
4A0014F
2
1.42 4.15 1.06 - - - - 4.04 3.39 1.78 - - - 0.87 1.38 - -
4A0021F 1.42 4.15 1.06 - - - - 4.04 3.39 1.78 - - - 0.87 1.38 - -
4A0027F 1.42 4.15 1.06 - - - - 4.04 3.39 1.78 - - - 0.87 1.38 - -
4A0034F
3
1.77 4.11 1.50 - - - - 3.98 3.74 1.89 - - - 0.87 1.38 1.73 -
4A0040F 1.77 4.11 1.50 - - - - 3.98 3.74 1.89 - - - 0.87 1.38 1.73 -
4A0052F
4
2.68 4.19 1.46 - - - - 4.45 4.29 2.72 - - - 1.10 1.97 - -
4A0065F 2.68 4.19 1.46 - - - - 4.45 4.29 2.72 - - - 1.10 1.97 - -
4A0077F 2.68 4.19 1.46 - - - - 4.45 4.29 2.72 - - - 1.10 1.97 - -
4A0096F 2.68 4.19 1.46 - - - - 4.45 4.29 2.72 - - - 1.10 1.97 - -
4A0124F 5 3.31 6.22 3.33 1.14 1.02 0.59 0.61 3.74 3.64 3.23 2.48 2.28 - 0.87 1.10 1.38 1.97
4A0156F
6
4.61 7.12 3.90 1.85 1.26 1.18 2.17 7.32 7.20 6.73 5.47 4.21 3.98 0.87 1.10 1.97 2.44
4A0180F 4.61 7.12 3.90 1.85 1.26 1.18 2.17 7.32 7.20 6.73 5.47 4.21 3.98 0.87 1.10 1.97 2.44
4A0240F 4.61 7.12 3.90 1.85 1.26 1.18 2.17 7.32 7.20 6.73 5.47 4.21 3.98 0.87 1.10 1.97 2.44
4A0302F 7 6.10 9.06 5.71 2.95 1.50 - - 8.62 7.52 6.65 5.35 4.76 - 0.87 1.10 1.97 2.44
nn
IP00/Open-Type Enclosure Drives
Figure 1
H1
H
Max. W2
Max. W2
D
D1
t1
W
4-d
H2
W1
D1
D
W
H1
H2
H
Max W2Max W2
6-d
Figure 3
t1
W1
W3 W3
Figure 2
W1
4-d
H1
H
H2
Max W2
W
t2
t1
D1
D
Max W2
D1
D
t2
H1
H2
H
4-d
W1
W
Max W2
t1
Figure 4
Max W2
2.2 Mechanical Installation
52
YASKAWA ELECTRIC TOEP C710616 45B YASKAWA AC Drive – Z1000 User Manual
4 Replace pages 51 and 52
8
YASKAWA TOEP YAISUP 04A YASKAWA AC Drive – Z1000 User Manual Supplement

YASKAWA Z1000 Specifications

General

Model	Z1000
Category	Controller
Humidity	95% RH or less (non-condensing)
Control Method	V/F Control
Frequency Range	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 meters without derating
Cooling Method	Forced Air
Enclosure Rating	IP20
Voltage Class	200V, 400V
