Drive
Model
CIMR-Zoo
Dimensions (in)
Figure W H W1 W2 W3 H1 H2 H3 H4 H5 A B
2A0143
2A0169
2A0211
2A0273
4 13.4 31.6 9.6 – – 30.7 0.9 0.5 1.2 0.4 12.8 28.6
2A0343
2A0396
5 19.7 31.5 14.6 2.2 0.3 30.4 0.6 0.6 0.7 0.5 19.1 29.1
400 V Class
4A0005
4A0008
4A0011
1 6.7 14.8 5.9 – – 14 – – – – 4.6 12.8
4A0014
4A0021
4A0027
1 6.7 18.3 5.9 – – 17.5 – – – – 4.6 16.3
4A0034
4A0040
2 7.9 21.1 5.1 – – 20.5 – – – – 7.6 18.6
4A0052
4A0065
4A0077
4A0096
2 12 22.5 11.2 – – 21.9 – – – – 9.4 20
4A0124 3 10.9 28.4 6.7 – – 27.8 0.8 0.4 0.9 0.3 10.2 26.1
4A0156
4A0180
4A0240
4 13.4 31.6 9.6 – – 30.7 0.9 0.5 1.2 0.4 12.8 28.6
4A0302 5 17.9 41.9 12.8 – – 40.9 1.1 0.6 1.1 0.5 17.1 38.6
4A0361
4A0414
4A0480
5
19.7 31.5 14.6 2.2 0.3 30.4 0.6 0.6 0.7 0.5 19.1 29.1
19.7 37.4 14.6 2.2 0.3 36.3 0.6 0.6 0.7 0.5 19.1 35.0
26.4 44.9 17.3 4.2 0.3 43.7 0.7 0.6 0.7 0.6 25.7 42.2
4A0515
4A0590
6
26.4 44.9 17.3 4.2 0.3 43.7 0.7 0.6 0.7 0.6 25.7 42.2
26.4 44.9 17.3 4.2 0.3 43.7 0.7 0.6 0.7 0.6 25.7 42.2
uu
HOA Keypad Remote Usage
nn
Remote Operation
The HOA keypad mounted on the drive can be removed and connected to the drive using an extension cable up to 3 m (9.8
ft.) long to facilitate operation when the drive is installed in a location where it can not be easily accessed.
The HOA keypad can also be permanently mounted remote locations such as panel doors using an extension cable and an
installation support set (depending on the installation type).
Note: Refer to Peripheral Devices & Option s on page 239 for information on extension cables and installation support sets.

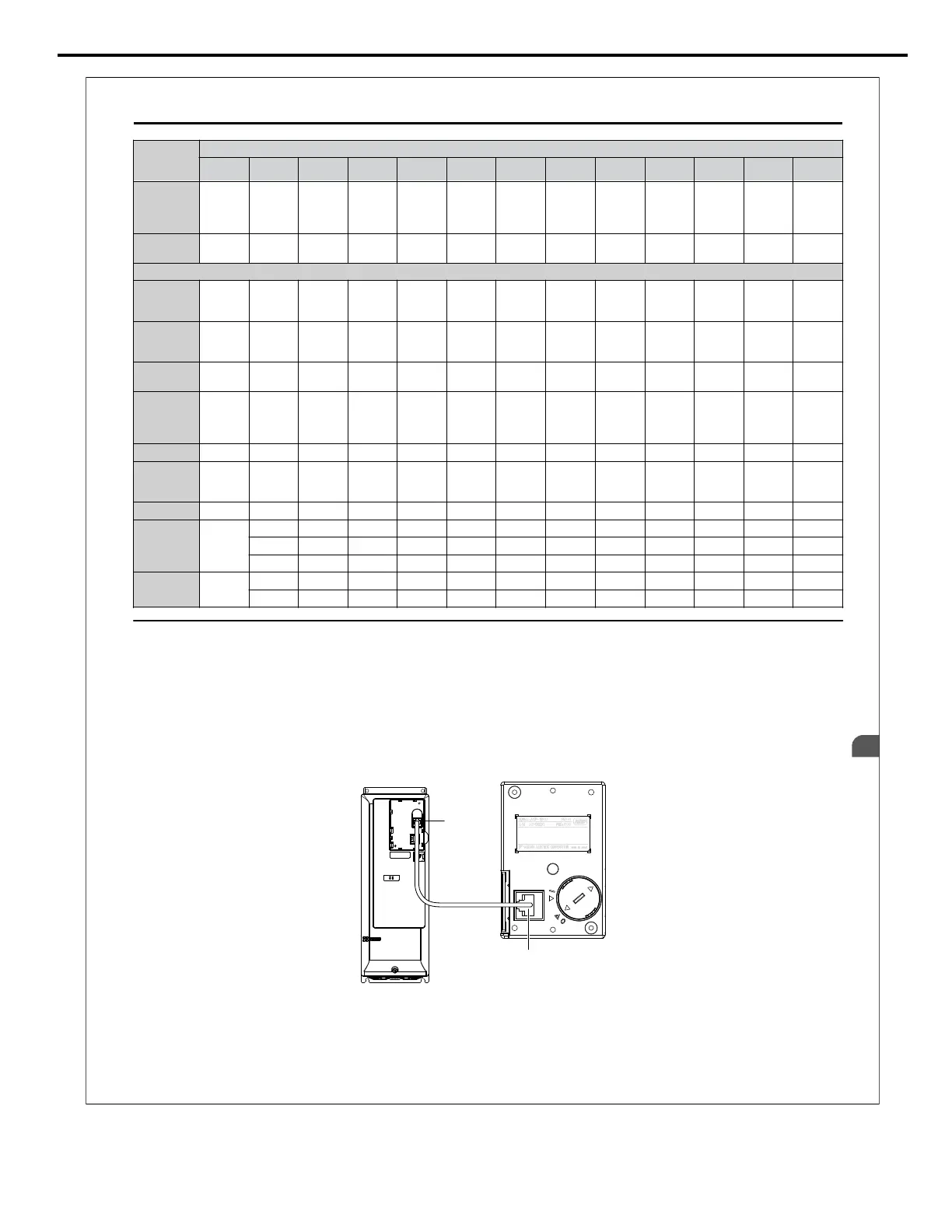

Figure 2.4 Communication Cable Connection
2.2 Mechanical Installation
YASKAWA ELECTRIC TOEP C710616 45B YASKAWA AC Drive – Z1000 User Manual
43
2
Mechanical Installation
