YASKAWA Z1000 User's Manual Supplement

2 Insert Figure 1.7 on page 33
nn
Three-Phase AC 400 V CIMR-Zoo4A0414A
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
M
A– Fan guard
B– Cooling fan
C– Fan bracket
D– HOA Keypad
E – Drive cover 1
F – Drive cover 2
G– Terminal cover
H– USB port (type-B)
I – Front cover screw
J– Front cover
K– Circulation fan
L – Terminal board
M– Mounting hole
N– Optional 24 V DC power supply
connector cover
O– Heatsink

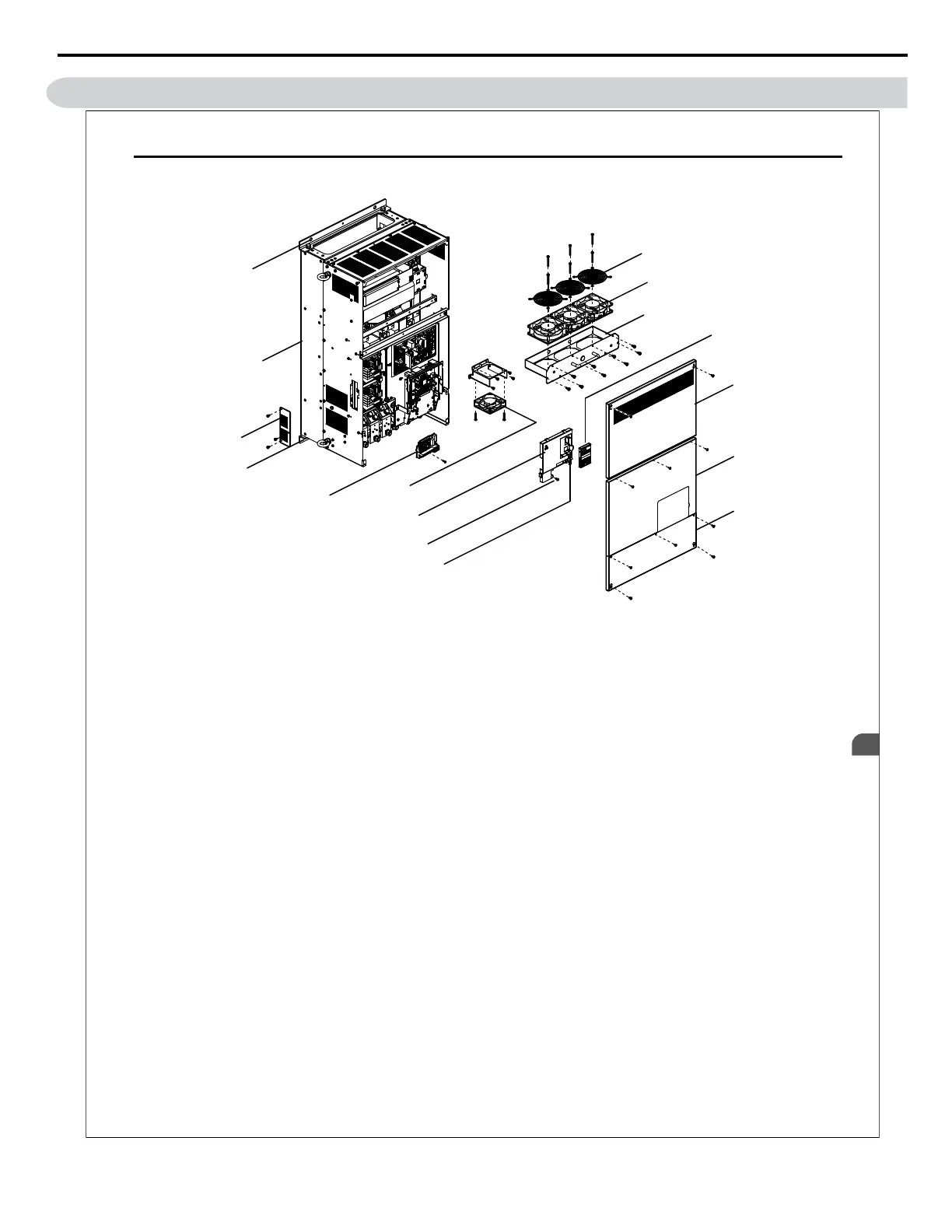

Figure 1.7 Exploded view of IP00/Open Type Enclosure Components (CIMR-Zoo4A0414A)
1.5 Component Names
YASKAWA ELECTRIC TOEP C710616 45B YASKAWA AC Drive – Z1000 User Manual
33
1
Receiving
2 Insert Figure 1.7 on page 33
YASKAWA TOEP YAISUP 04A YASKAWA AC Drive – Z1000 User Manual Supplement
5
