| Getting Started | 38

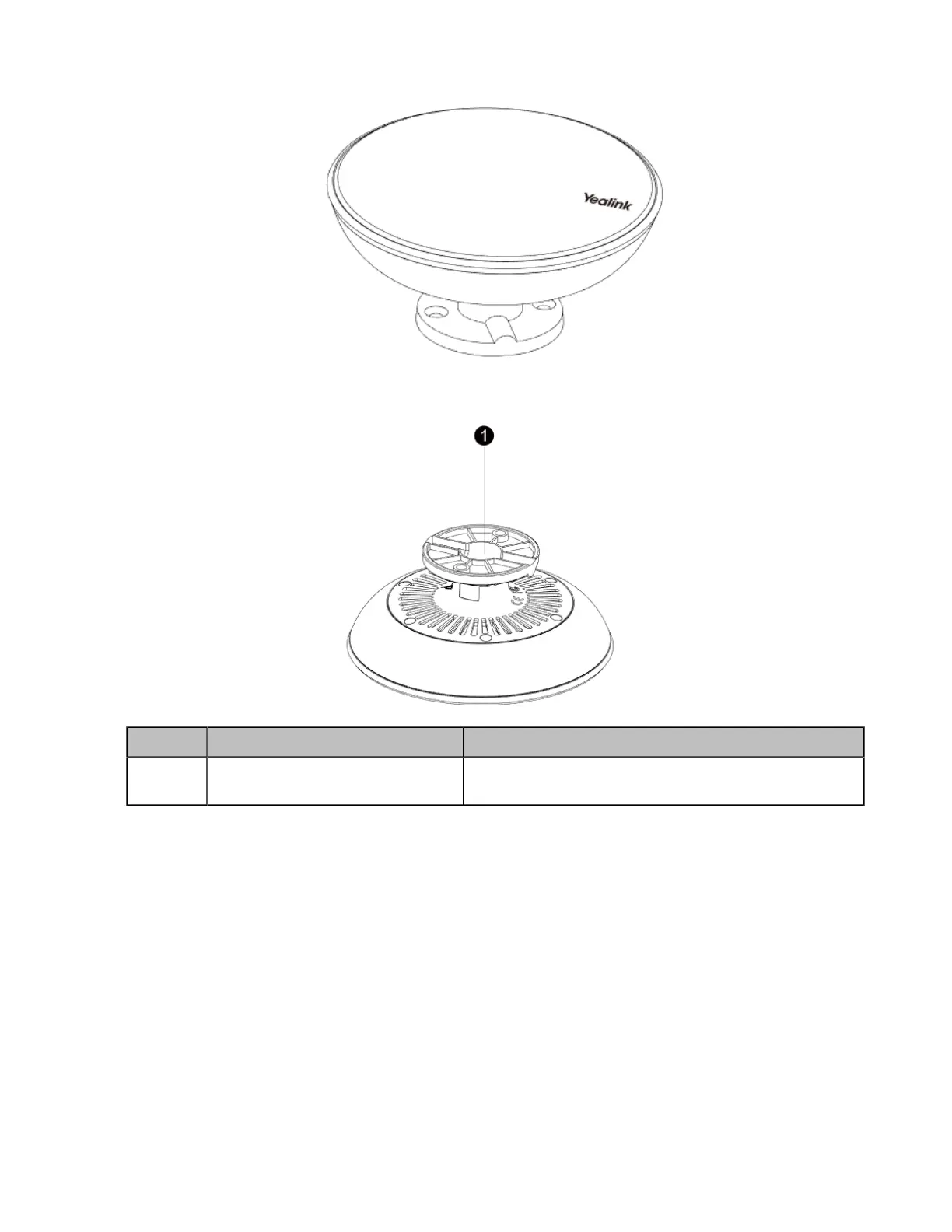

Rear Panel of VCM38

Name Description

1 PoE Connect to the VC Hub/Phone port on the VCS

endpoint.

VCM34

VCM34 is a brand-new video conferencing microphone array which can work as the audio input device

for Yealink Video Conferencing System. Thanks to its built-in 3-microphone array and superior audio

technology, VCM34 owns a 20ft (6m) and 360° voice pickup range, regarding as an ideal solution for any

conference room that needs the best audio experience.

Front Panel of VCM34

Default Chapter2
