Yealink SIP-T40P User Manual

User Guide for the SIP-T40P IP Phone
138

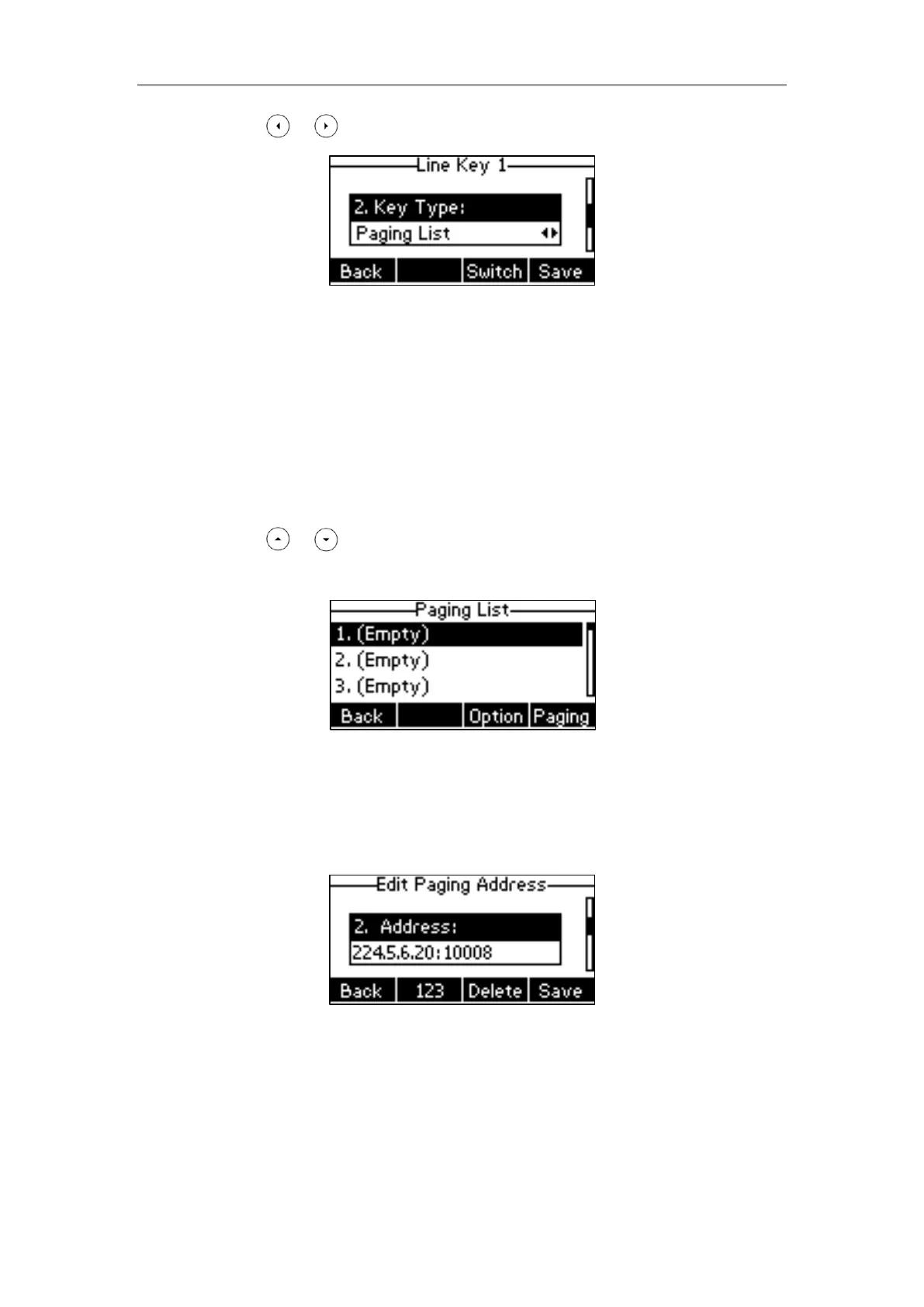

4. Press or , or the Switch soft key to select Paging List from the Key Type field.
5. (Optional.) Enter the string that will appear on the LCD screen in the Label field.
6. Press the Save soft key to accept the change or the Back soft key to cancel.
Paging list key is configurable via web user interface at the path Dsskey->Line Key.
To configure paging list via phone user interface:
1. Press the paging list key when the phone is idle.
If the paging list key is not configured, you can also press Menu->Features->Paging List
to configure the paging list.
2. Press or to select a desired paging group.
The default tag is Empty if it is not configured before.
3. Press the Option soft key, and then press the Edit soft key.
4. Enter the multicast IP address and port number (e.g., 224.5.6.20:10008) in the Address
field.
The valid multicast IP addresses range from 224.0.0.0 to 239.255.255.255.
5. Enter the group name in the Label field.
6. Enter the desired channel in the Channel field.
The valid channel ranges from 0 to 30.
7. Press the Save soft key to accept the change.
8. Repeat steps 2 to 7, you can add more paging groups.

Yealink SIP-T40P Specifications

General

Wi-Fi	No
Quality of Service (QoS) support	Yes
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
Power consumption (typical)	3.23 W
Battery voltage	5 V
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Display diagonal	2.3 \
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	G.711, G.722, G.726, G.729A, G.729B
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	189 mm
Width	212 mm
Height	175 mm
Package depth	256 mm
Package width	620 mm
Package height	233 mm
Package weight	6400 g
