Yealink SIP-T40P User Manual

Advanced Phone Features
139
Paging list is configurable via web user interface at the path Directory->Multicast IP.

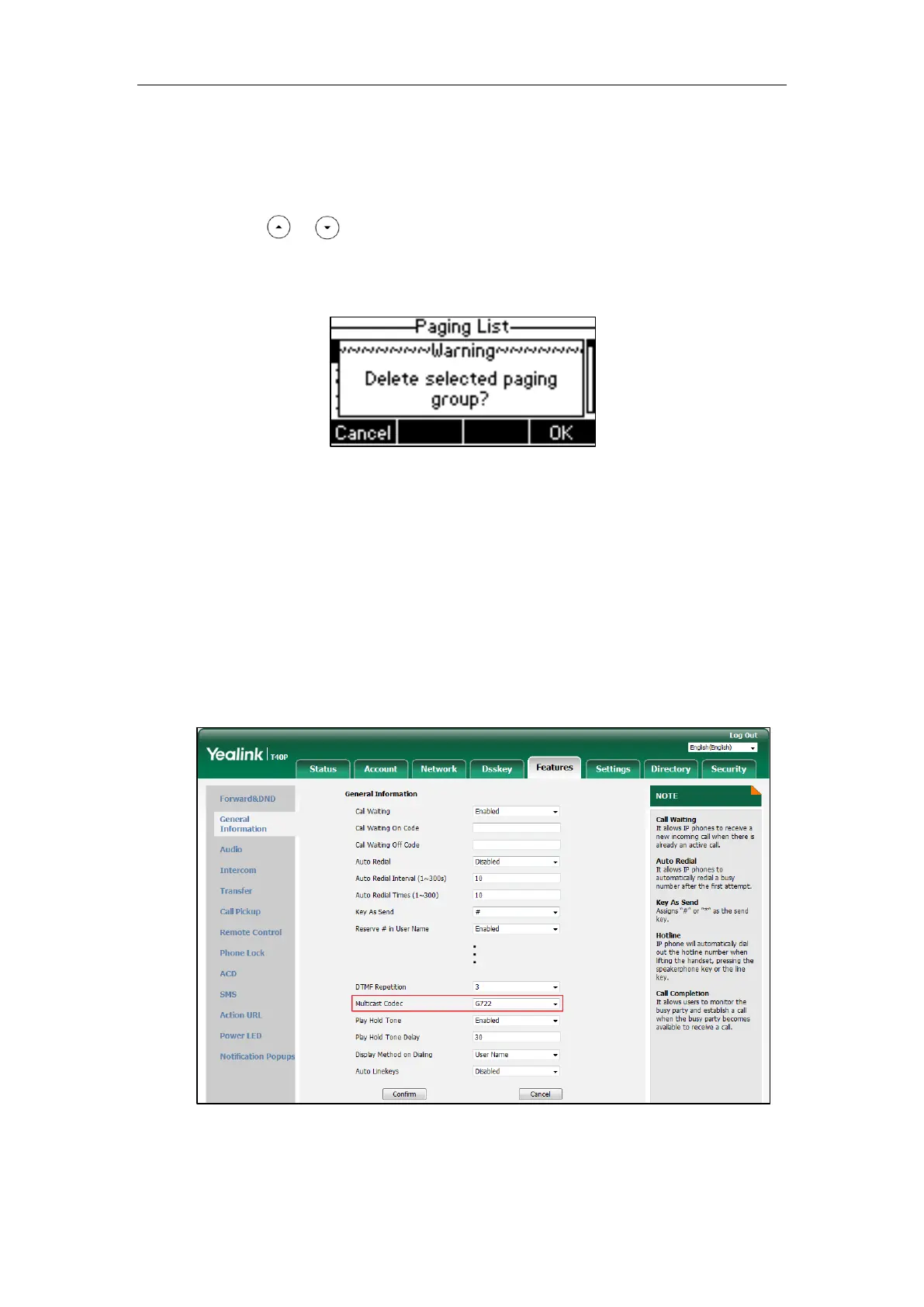

To delete a paging group via phone user interface:
1. Press the paging list key when the phone is idle.
2. Press or to select a desired paging group.
3. Press the Option soft key, and then select Delete soft key.
The LCD screen prompts “Delete selected paging group?”.
4. Press the OK soft key to accept the change or the Cancel soft key to cancel.
If you want to delete all paging groups, you can press the Del All soft key.
You can also configure the phone to use a default codec for sending multicast RTP stream via
web user interface.
To configure a default codec for multicast paging via web user interface:
1. Click on Features->General Information.
2. Select the desired codec from the pull-down list of Multicast Codec.
The default codec is G722.

Yealink SIP-T40P Specifications

General

Wi-Fi	No
Quality of Service (QoS) support	Yes
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
Power consumption (typical)	3.23 W
Battery voltage	5 V
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Display diagonal	2.3 \
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	G.711, G.722, G.726, G.729A, G.729B
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	189 mm
Width	212 mm
Height	175 mm
Package depth	256 mm
Package width	620 mm
Package height	233 mm
Package weight	6400 g
