TA410/810 User Manual
56/63

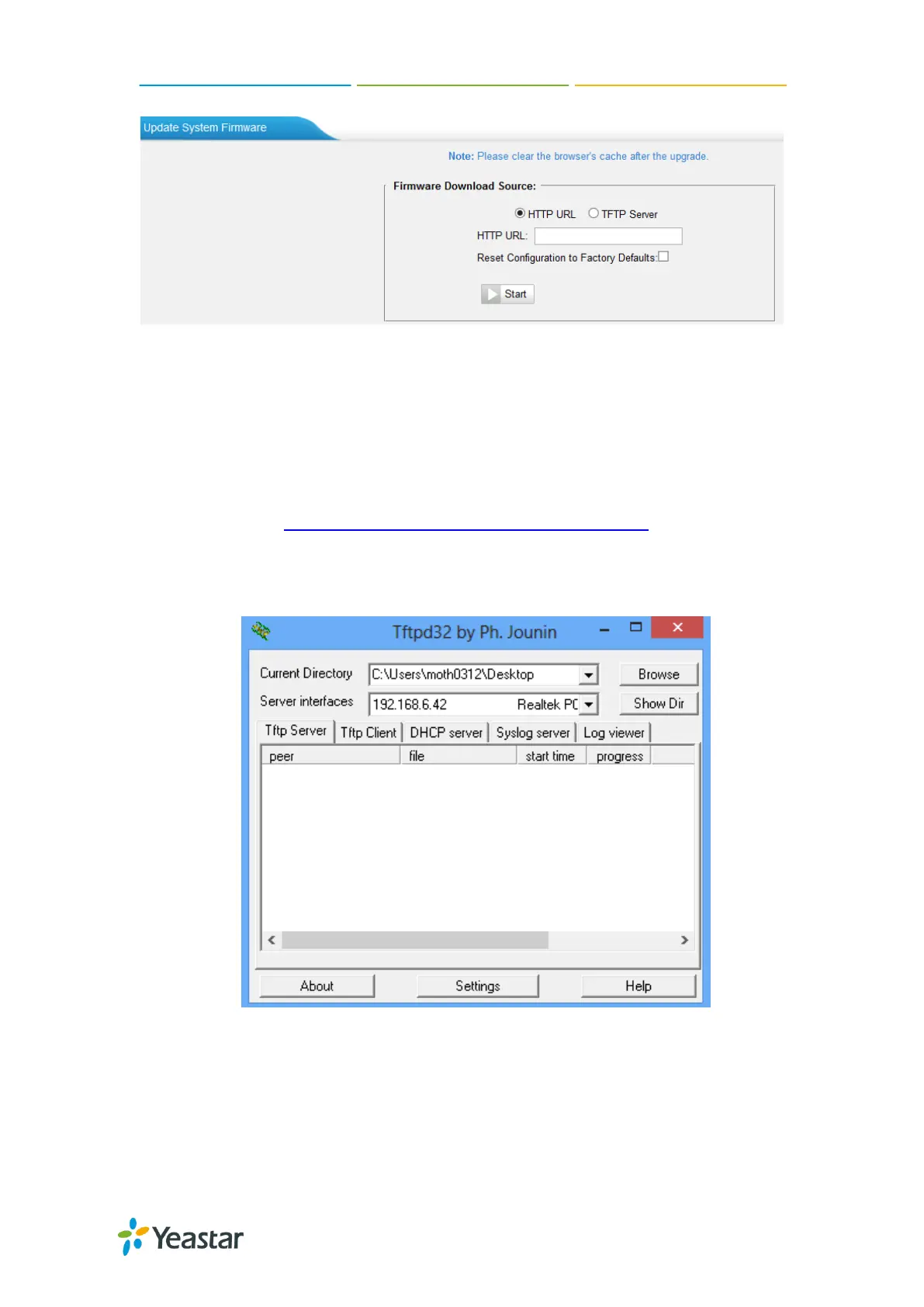

Figure 11-8 Upgrade through HTTP
Upgrade through TFTP
Step1.Download firmware file from Yeastar website.
Step2. Create a tftp Server (For example, tftpd on Windows).
1) Install tftpd32 software on computer.
Download link: http://tftpd32.jounin.net/tftpd32_download.html
2) Configure tftpd32.
On option “Current Directory”, click “Browse” button, choose the firmware file
(BIN file) upgraded patch.
Figure 11-9 Configure Tftpd32
Step3.Logon the TA410/810’s Web page and go to System→System
Preferences→Firmware Update, choose “TFTP Server”.
1) TFTP Server: fill in IP address of tftpd32 server (your PC’s IP address).
2) File Name: enter the name of firmware update. It should be a BIN file name.
3) Click “Start” to upgrade.
