Yeastar Technology TA810 - Packet Capture Tool; Port Monitor Tool Usage

TA410/810 User Manual
63/63

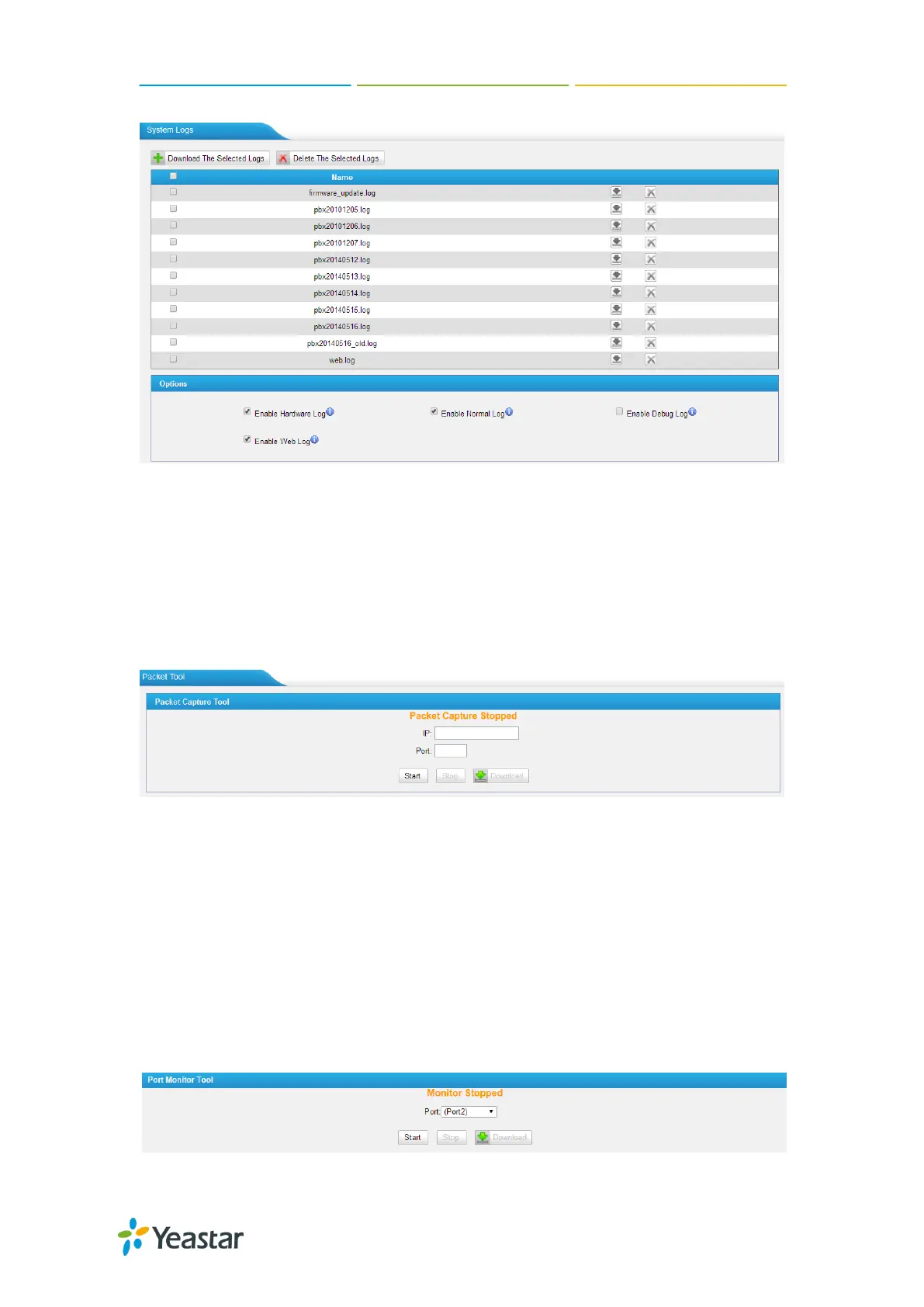

Figure 13-2 System Logs
Packet Tool
This feature is used to capture packets for technician. Integrate packet capture tool
“Wireshark” in TA410/810. Users also could specify the destination IP address and
port to get the packets.
Figure 13-3 Packet Tool
 IP
Specify the destination IP address to get the packets.
 Port
Specify the destination Port to get the packets.
Port Monitor Tool
This tool is used to debug a FXO port. Select a FXO port and click “Start” to monitor
the FXO port, stop monitoring by clicking “Stop” button.
Figure 13-4 Port Monitor Tool
