TA410/810 User Manual
9/63
1) Configure a Port->IP route on TA410/810, choose PSTN trunk in the field
“Call Source”, and choose the SPS trunk in the field “Call Destination”.
2) Create one inbound route on your SIP server and select the SIP trunk created
just now.
3) When an incoming call reaches PSTN trunk on TA41/810, You will hear a
dial tone, then dial an extension number of the SIP Server, it will be routed to
the destination of the SIP server inbound route.
Note: if you want the call to go directly to the destination number of your SIP
server, you don’t have to create an inbound route on SIP server, instead set a
Hotline number on TA410/810 route.

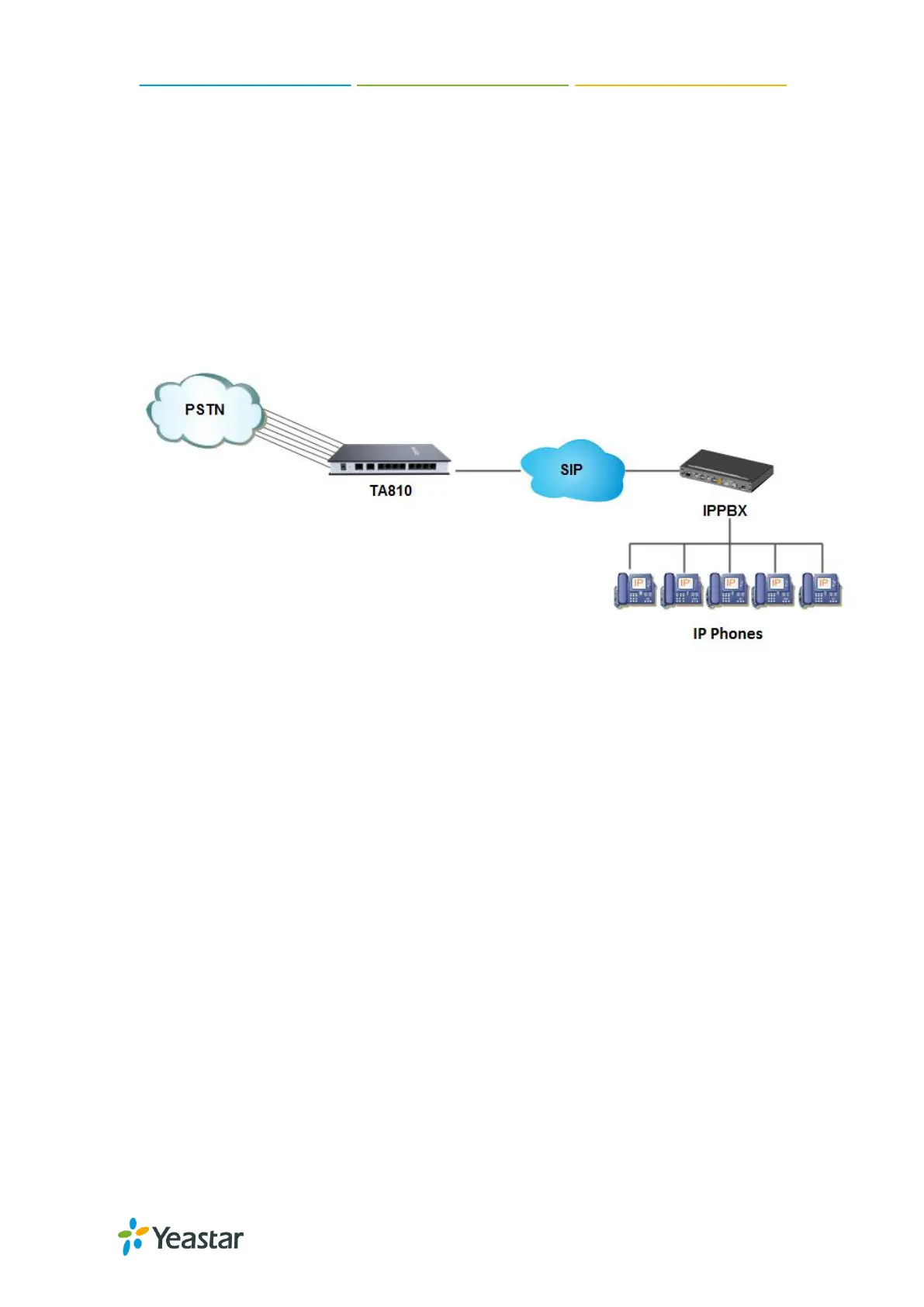

Figure 2-2 Connect IPPBX and TA FXO Gateway
For incoming calls from the PSTN to TA410/810, TA410/810 will forward the call to a
configured SIP extension or to an inbound destination of IPPBX like IVR.
Connect TA FXO Gateway and FXS Gateway
TA FXO gateway can be connected to a FXS gateway using SPS/SPX Mode. Imagine
this, the FXO gateway is set up in Site A, and the FXS gateway in Site B. People in
Site B can make and receive calls using the local PSTN lines (which is connnected to
Site A’s provoider). With this solution, you can call a local number using a local PSTN
line wherever you are.
