YOKOGAWA 436101 Operation Guide

31IM 04P02B01-02E
Installing/Replacing the Plotter Pen (Pen Model)
1. Open the door.
If recording is in progress, press the
RCD
key to stop the recording.
2. Open the display and key panel section.

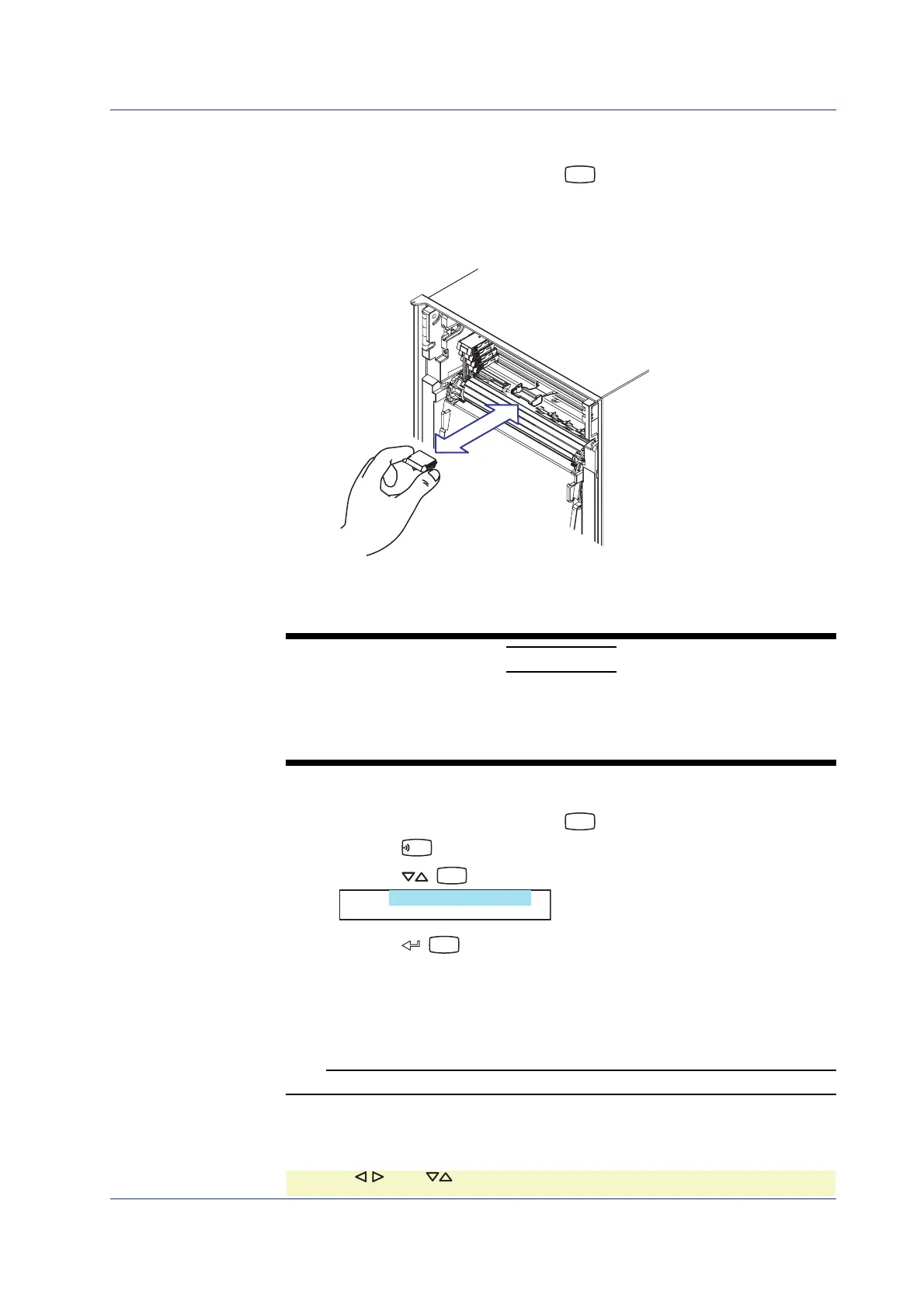

3. Hold the plotter pen cartridge and pull it out from the pen holder.
4. Remove the cap from the new plotter pen and insert the pen firmly into the pen
holder.
5. Return the display and key panel section to its original position.
Installing/Replacing the Ribbon Cassette (Dot Model)
CAUTION
• Improper cassette insertion may cause the color to change or damage the
ribbon.
• Do not apply upward force to the printer carriage. If you do, the carriage position
may be offset, and the recorder may not print correctly.
1. Open the door.
If recording is in progress, press the
RCD
key to stop the recording.
2. Press the
FUNC
key.
3. Press the (
DISP
) key several times to display Ribbon exchange.
Func=Ribbon exchange
4. Press the (
CH UP
) key.
The printer carriage moves near the center position, and Ribbon exchange =
End is displayed.
5. Open the display and key panel section.
Hold the left and right tabs and pull the display and key panel section toward
you. The section opens upward.
Note
If the recorder is OFF, hold the printer carrige and move it near the center position.
Preparing to Record
* When the key or key is pressed while holding down the SHIFT key, the operation is
reversed as when the respective key is pressed by itself.
