YOKOGAWA 436101 Operation Guide

46 IM 04P02B01-02E
Switching the Display Screen
The screen switches each time the
DISP
key is pressed. Screen 01 through 15 are
switched in order. Screens that are set to “Skip” (See “Display Types” on the page 48)
are skipped. Below is a display example.

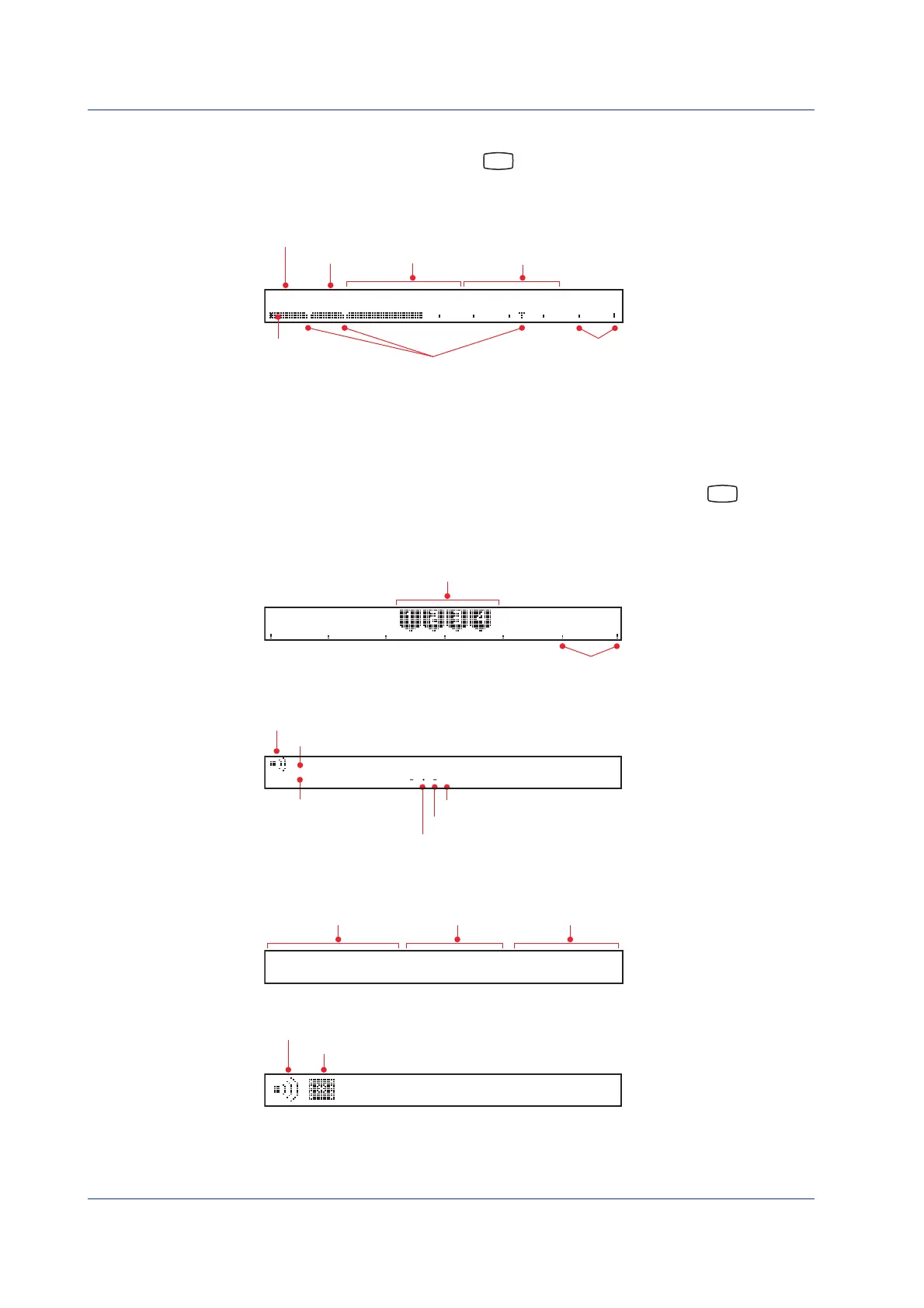

Display Example (1-channel digital + bar graph display)
Channel No.
Alarm point mark
Scale
Bar graph
Unit
Measured value
Alarm status
01 H -200.0mV
• Channel Auto Switching
On screens that show the measured values and computed values, the displayed
channel is automatically switched in ascending order. The switching interval can be
set to 1 s, 2 s, 3 s, 4 s, or 5 s.
• Switching the Displayed Channel Using Keys
If auto switching is not specified, the channel switches each time the
CH UP
key is
pressed in ascending order. All channels are displayed in order.
Display Example (Flag Display)
Scale
Flag (the number indicates the channel No.)
Display Example (Alarm Status Display)
Measurement channel
Symbol indicating an alarm
Computation
channel
Channel on which an alarm is occurring
Channel on which an alarm is not occurring
Channel on which an alarm is not set
:123456 789 012 345678 901234
:ABCDEF GJ P ABCDEF GJKMNP
... ...... ......
...... ......
.....
Display Example (Date/Time and Chart Speed Display)
The date format can be specified.
Date Tme Chart speed
Aug.31.2005 11:26:37 12000mm/h
Display Example (Status Display)
Remaining amount of chart paper is less than approx. 2 cm (/F1 option)
Alarm status
Recording/Displaying Data
