Changing the Displayed Information

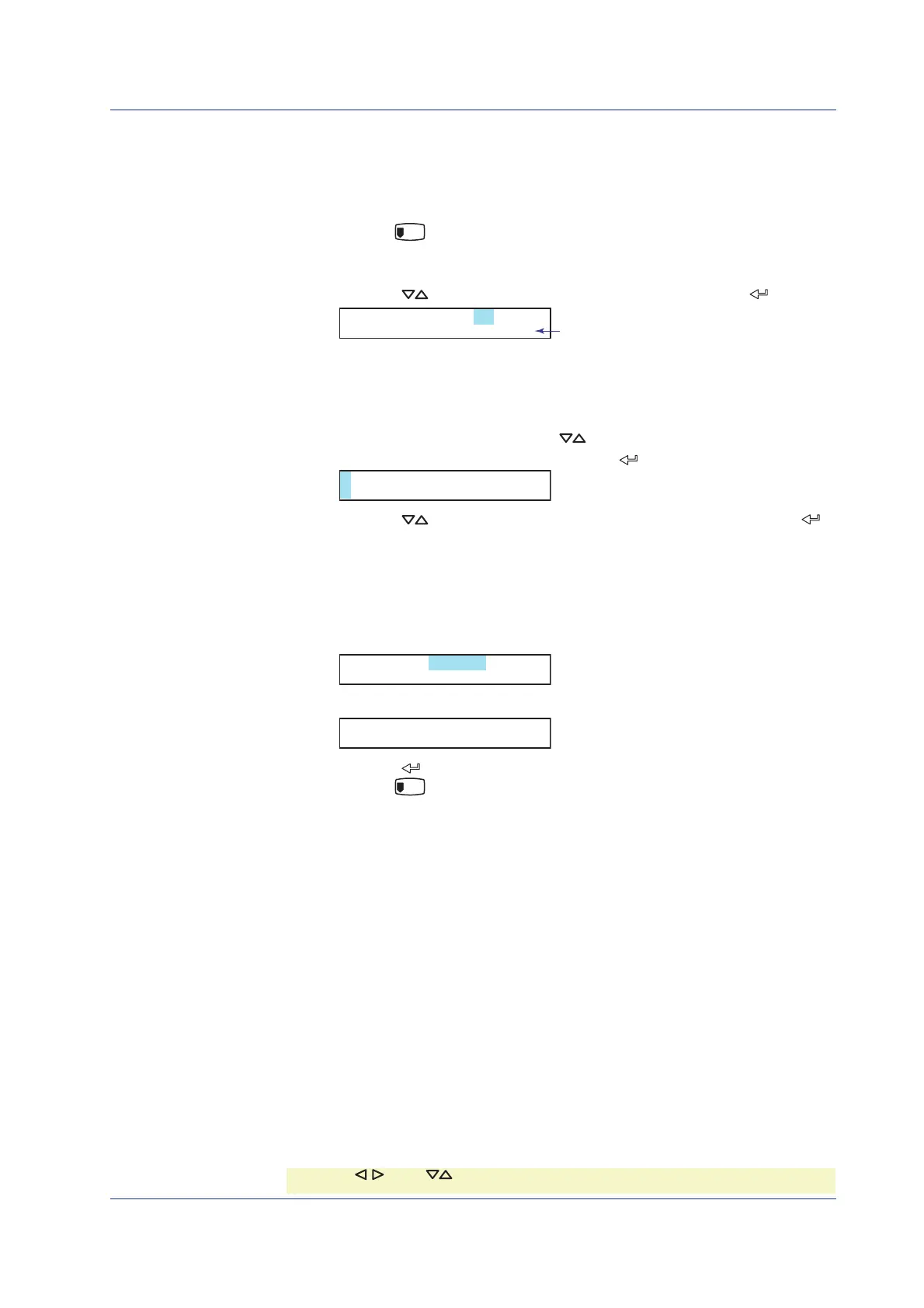

Different display types can be registered to screens 01 to 15. As an example, the
procedure of assigning 1-channel digital display (tag display) to screen 02 is explained
below.
1.
Hold the
MENU
1
key for 3 seconds to show the data display setup screen.
Selecting the Screen Number
2.
Press the key to select screen number 02 and then press the key.
Screen number=02
Displays the current display type name.
A sample screen of the display type appears. A section of the display blinks to
indicate that this is a data display setup screen.
Selecting the Display Type
3.
The display switches each time the key is pressed. Select the TAG001A
(Tag_1CH digital) display and then press the key.
TAG001A 200.0 mV
4.
Press the key to set the channel switching interval and then press the
key.
Interval: Sets the channel switching interval. Select the interval from
1 s, 2 s, 3 s, 4 s, 5 s, and manual.
Auto1s, Auto2s, Auto3s, Auto4s, Auto5s:
Switches the displayed channel at the specified time interval.
Manual: Switch the displayed channel manually.
Interval=Auto2s
5.
When the Setting complete screen appears, the new setting is applied.
Screen 02
Setting complete
Press the key to register display types to other screens.
Hold the
MENU
1
key down for 3 seconds to exit from the data display setup
screen.
Recording/Displaying Data
* When the key or key is pressed while holding down the SHIFT key, the operation is
reversed as when the respective key is pressed by itself.
