YOKOGAWA ADMAG AXF Series User Manual

IM 01E20F02-01E
9-3
9. GENERAL SPECIFICATIONS

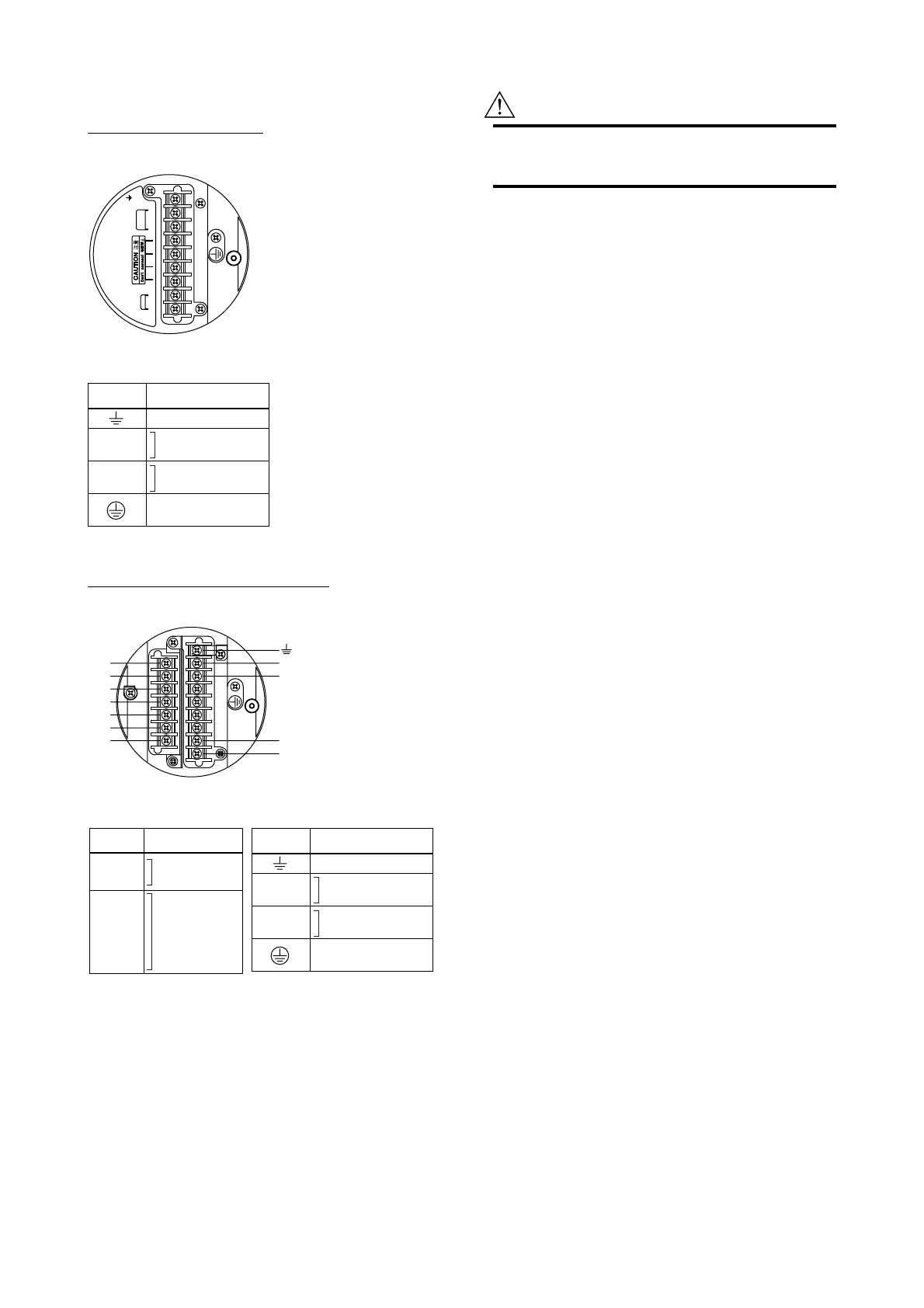

9.3 TERMINAL CONNECTION
Integral Flowmeter AXF
Terminal configuration
F01.EPS
+
SUPPLY
PB
POWER
L
/
+ N
/
-
-
Terminal wiring
T06.EPS
Terminal
Symbols
Description
Protective grounding
(Outside of the terminal)
Power supply
Fieldbus
communication signal
Functional grounding
N/–
L/+
FB+
FB–
Remote Type Converter AXFA14
Terminal configuration
SB
B
A
SA
C
EX2
EX1
FB-
FB+
L/+
N/-
F02.EPS
Terminal wiring
T07.EPS
Terminal
Symbols
EX1
EX2
C
SA
A
B
SB
Description
Flow singal
input
Excitation current
Output
Terminal
Symbols
Description
Protective grounding
(Outside of the terminal)
Power supply
Fieldbus
communication signal
Functional grounding
N/–
L/+
FB+
FB–
CAUTION
Do not connect to these terminals which are
marked “CAUTION Don’t connect”.
