 2-inch Pipe Mounting
2-inch pipe
Mounting fixture
Washer
Clamp screw
Pass the four clamp screws through the mounting fixture,
position it on the 2-inch pipe, and then fasten the AXFA11 in place.
F0325.ai

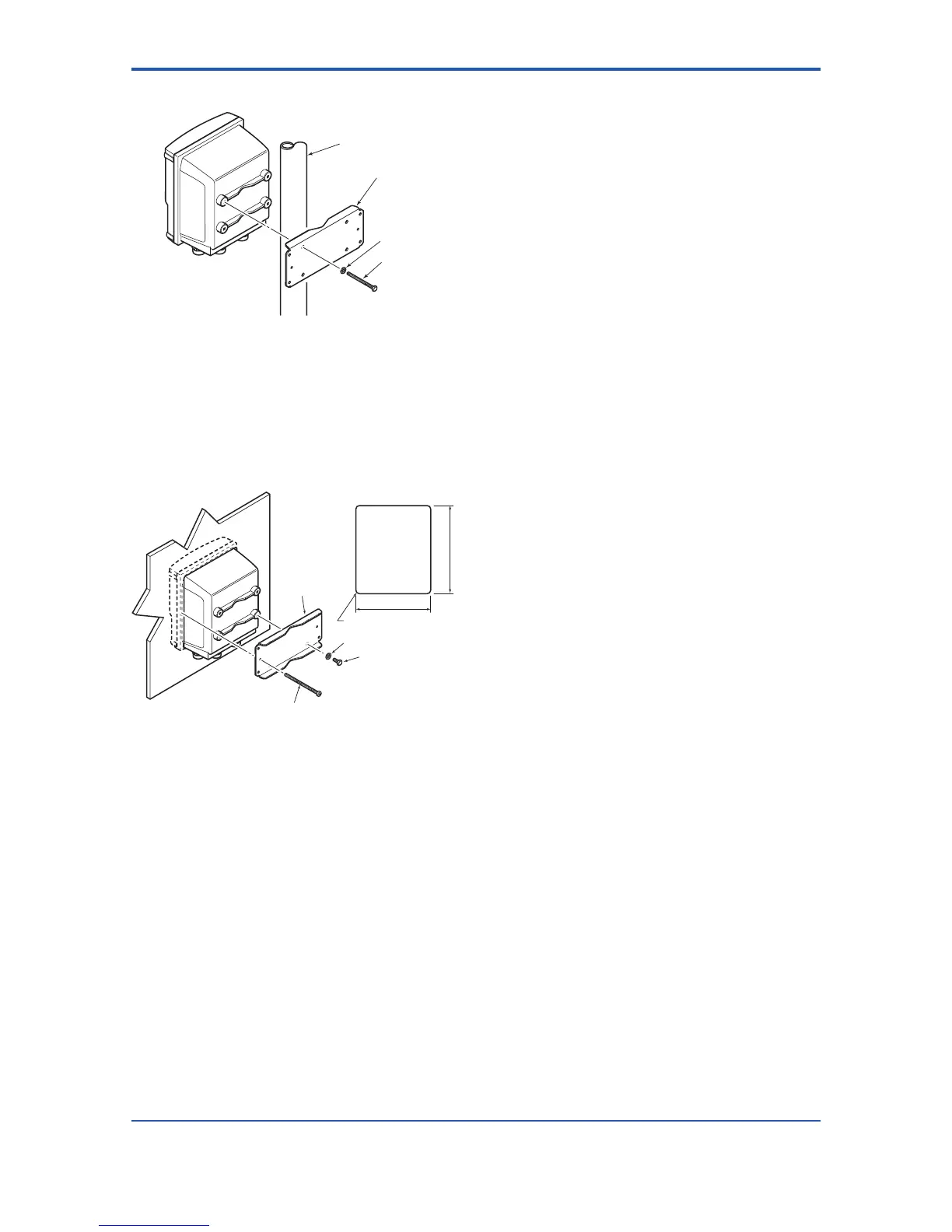

Figure 3.4.4 2-inch Pipe Mounting
 Panel Mounting
Panel cutout
172 (6.8)
R3MAX
Mounting fixture
Unit: mm
(approx. inch)
Washer
Screw
Clamp screw
203 (8.0)
F0326.ai
Fit the AXFA11 into the panel. Then attach the mounting fixture
to the AXFA11 using the screw and the washer, and secure the
instrument with the two clamp screws.
Figure 3.4.5 Panel Mounting
<3. Installation>
28
IM 01E20A01-01EN
