YOKOGAWA AXFA14G User Manual

<3. Installation>
27
IM 01E20A01-01EN

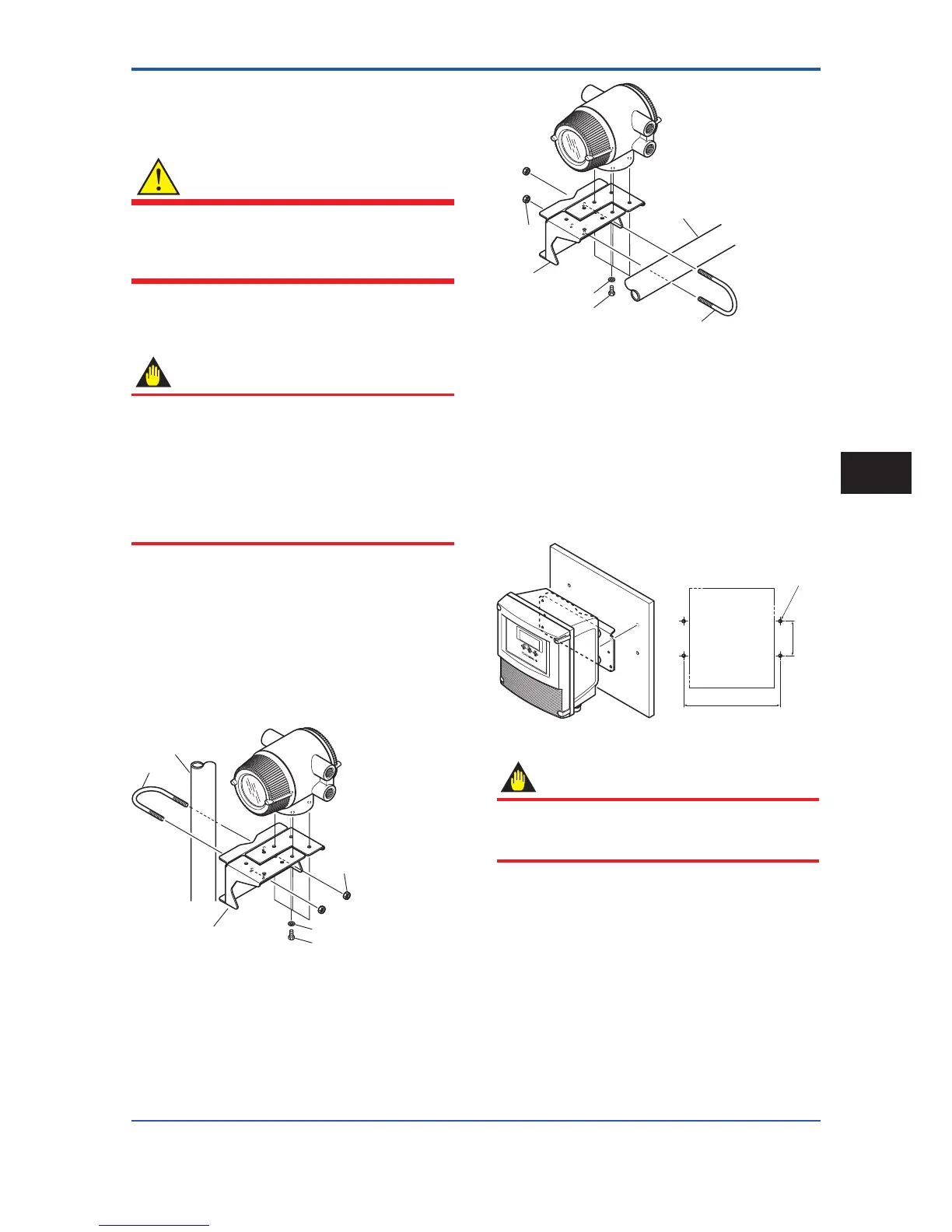

3.4 Installation of Remote
Converter
WARNING
Installationofthemagneticowmetermustbe
performed by expert engineer or skilled personnel.
No operator shall be permitted to perform procedures
relating to installation.
3.4.1 Installation Location
IMPORTANT
Install the instrument in a location where it is not
exposed to direct sunlight. For ambient temperature,
referto“OUTLINE”oftheappropriatemanualwhich
can be downloaded from our website.
The instrument may be used in an ambient humidity
where the RH ranges from 0 to 100%. However, avoid
long-term continuous operation at relative humidity
above 95%.
3.4.2 Mounting of AXFA14
AXFA14 Remote Converter can be mounted on a 2-inch
pipe in a vertical or horizontal position depending on the
installation site.
1. Fixtheinstrumentonthemountingxtureusingfour
screws.
2. Fixthemountingxturewiththeinstrumentinstalled
on a 2-inch pipe using a U-bolt.
F0322.ai
Mounting fixture
2-inch pipe
Nut
Washer
Screw
U-bolt
Figure 3.4.1 2-inch Pipe Vertical Mounting
F0323.ai
Mounting fixture
2-inch pipe
Nut
U-bolt
Washer
Screw
Figure 3.4.2 2-inch Pipe Horizontal Mounting
3.4.3 Mounting of AXFA11
AXFA11 Remote Converter can be mounted using surface
mounting, 2-inch pipe mounting, or panel mounting.
 Surface Mounting (Wall Mounting)
4-ø6 Hole or
M6 Screw
194 (7.64)
65
(2.56)
F0324.ai
Unit: mm
(approx. inch)
For surface mounting, use the mounting
fixture provided, using M6 screws.
These M6 screws must be provided by the user.
Figure 3.4.3 Surface Mounting
IMPORTANT
Mountingxtureonequipmentintendedtobemounted
on a wall or ceiling shall withstand a force of four times
the weight of the equipment (AXFA11: 3.3kg (7.3 lb)).
Installation
3
