<5. Basic Operating Procedures>
52
IM 01E20A01-01EN
5. Basic Operating Procedures
5.1 Operating Procedures Using
the Display Unit
Themodicationofdatasettingsfromthedisplayunitcan
be carried out using the three setting switches (infra-
redswitches)-namely,the“
”“ ”and“ ”
switches. The infra-red switches enable the user to set
parameters without opening the cover.
This chapter will provide a description of basic data
congurationandthemethodstobeusedwiththethree
setting switches. This instrument can also be operated
using a handheld BRAIN Terminal (BT200) or a HART
Congurationtool.(RefertoSection5.5foroperationvia
BRAINTerminalorHARTCongrationtool.)
WARNING
Besuretosetparametersas“Protect”onthewrite
protectfunctionafternishofparametersettingwork.
Under extremely rare case, the infra-red switches may
respond unexpectedly in such conditions as sticking
ball of water or extraneous substances on the surface
of display panel glass according to the principle of
infra-red switch operation. Its probability rises in
such cases as sticking rain water by storm or other
similarsituationandwashingupworknearowmeter
installation place.
Either to illuminate or stop illuminating the infra-red
switchesbytheashlightmaycausethemis-reaction.
Refer to Section 6.3 how to use the write protect
function in detail.
IMPORTANT
Operate the display unit under the condition where
direct sunlight, etc... do not shine to the setting
switches directly when the parameter setting operation
is carried out.
NOTE
• Always use the setting switches with the cover
closed.
• Use these switches with them covered by the
glass window.
• If dirt, dust or other substances surfaces on the
display panel glass, wipe them clean with a soft
dry cloth.
• The operation with dirty gloves may cause a switch
response error.

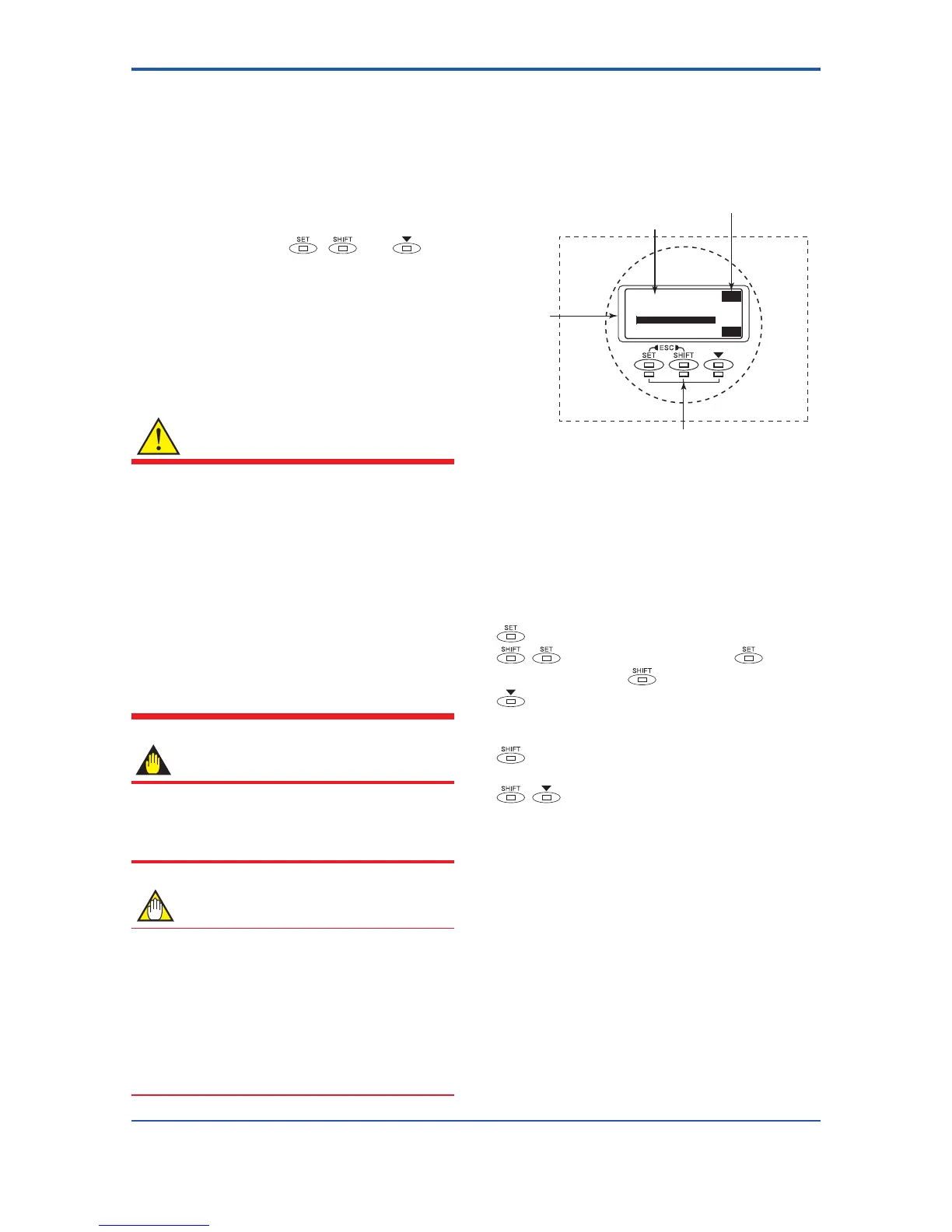

5.2 Operating Panel
CongurationandFunctions
F0501.ai
(1) Data display area
(2) Setting switches
(Infra-red switches)
(3) Display
items
(4) Reversed character display
100.000
FR
m
3
/h
: : :
100
3274m
3
FTL
0
(1) Data display area
1st line (Display Select1), 2nd line (Display Select2),
and 3rd line (Display Select3) can be displayed using
parameter settings. The content corresponding to
selected item is shown with the reversed-character on the
right of the line.
(2) Setting switch operations
:Movethelayerdown,select,andconrm
+ : Move the layer up (Press the switch
while holding down the
switch)
: Move the cursor down (for selection-type
parameters) or increase values (for numeric-type
parameters)
: Move the cursor to the right (for numeric-type
parameters)
+ :Move the cursor up (for selection-type
parameters)
