<5. Basic Operating Procedures>
53
IM 01E20A01-01EN

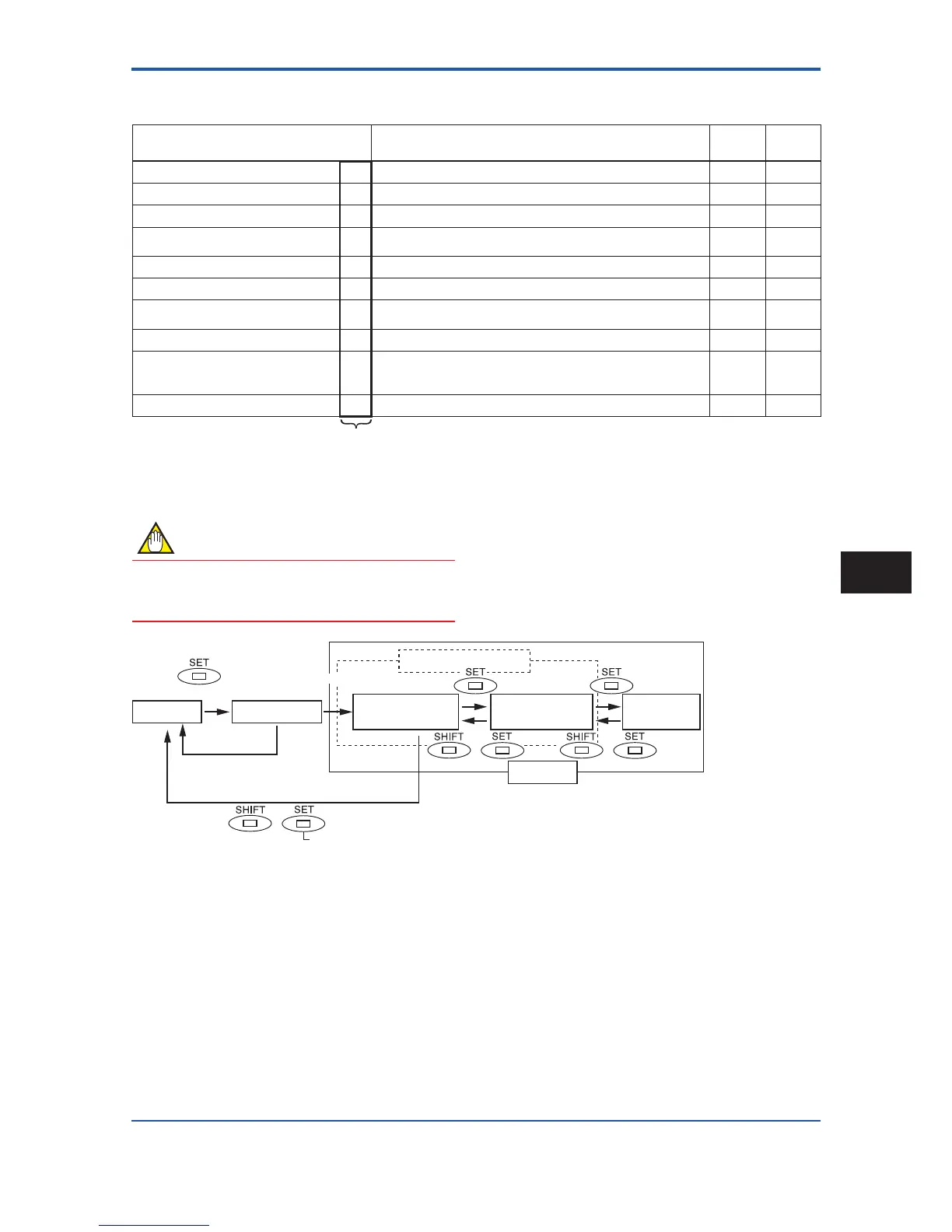

(3) Display items
○: Display, ×: Not display
Displayed items and reversed-character
indication
Content
Disp Select1
Disp Select2
Disp Select3
Instantaneousowrate:% FR Displaystheinstantaneousowrateforthespanasapercentage. ○ ○
Actualinstantaneousowrate FR Displaystheactualreadingforinstantaneousowrate. ○ ○
Instantaneousowrate:mA FR Displaystheinstantaneousowrateforthespanasacurrentoutputvalue. ○ ○
Bargraphindicatinginstantaneousowrate None
Displaystheinstantaneousowrateforthespanasapercentageusingbar
graph.
× ○
Totalizedforward-directionowrate FTL Displaysthetotalizedvalueforowrateintheforwarddirection. ○ ○
Totalizedreverse-directionowrate RTL Displaysthetotalizedvalueforowrateinthereversedirection. ○ ○
Totalizeddifferentialowrate DTL
Displays the differential totalized value for flow rate between forward
totalization and reverse totalization.
○ ○
Tag number TAG Display the tag number (using up to 16 characters). × ○
Diagnosis of electrode adhesion ADH
Displays the adhesion condition in the form of a bar graph. (See the
description for parameters K10 through K15 from Chapter 8: Parameter
Description for more details.)
× ○
Communication type COM Displays the communication type. × ○
(4)
Reversed character display
5.3 Display Unit Setting Methods
NOTE
Thismanualshowstheconrmationofthesetvalue.
Inthecaseofchangingsetting,referto“Parameter
Description”ofuser’smanualaslistedinTable1.1.
(2 seconds or more)
Select “No”
Press the SET switch while holding down the SHIFT switch.
Display Mode Entry Mode
Parameter Search Mode
Major Item Parameter
Search Mode
Sub-item Parameter
Search Mode
Parameter
Replacement Mode
Setting modes
F0502.ai
+
+ +
* The term "mode" is used to refer to a situation
where display and setting are possible.
Select “Yes”
Basic Operating Procedures
5
