4.3 BT200 FUNCTION CONFIGURATION
––WELCOME––
BRAIN TERMINAL
ID: BT200

check connection
push ENTER key
UTIL FEED  
PARAM
01:MODEL
EJ110-DM
02:TAG NO.
TABC-101
03:SELF CHECK
GOOD
OK
HOME SET ADJ ESC
FUNC
1.MENU
2.UPLOAD TO BT200
3.DOWNLOAD TO INST
4.PRINT ALL DATA
CODE CAPS CLR ESC
SET
C10:TAG NO.
TABC-101
TABC-101
F0409.EPS
DATA DIAG PRNT ESC
DATA DIAG PRNT ESC
PARAM
C60:SELF CHECK
GOOD
PARAM
C12:HIGH RANGE
1000 mmH2O
C30:AMP DAMPING
DATA DIAG PRNT ESC
PARAM
C10:TAG NO.
TABC-101
C20:PRESS UNIT
mmH2O
C21:LOW RANGE
0 mmH2O
DATA DIAG PRNT ESC
MENU
J:ADJUST
K:TEST
M:MEMO
P:RECODE
DATA DIAG PRNT ESC
HOME SET ADJ ESC
MENU
A:DISPLAY
B:SENSOR TYPE
MENU
C:SETTING
D:AUX SET 1
E:AUX SET 2
ESC
UTILITY
1.ID
2.security code
3.LANGUAGE SELECT
4.LCD CONTRAST
5.PRINTER ADJUST
CLR 
SLOT

SLOT NO.

00
[Offline]
[Online]
(SC)
(DPharp)

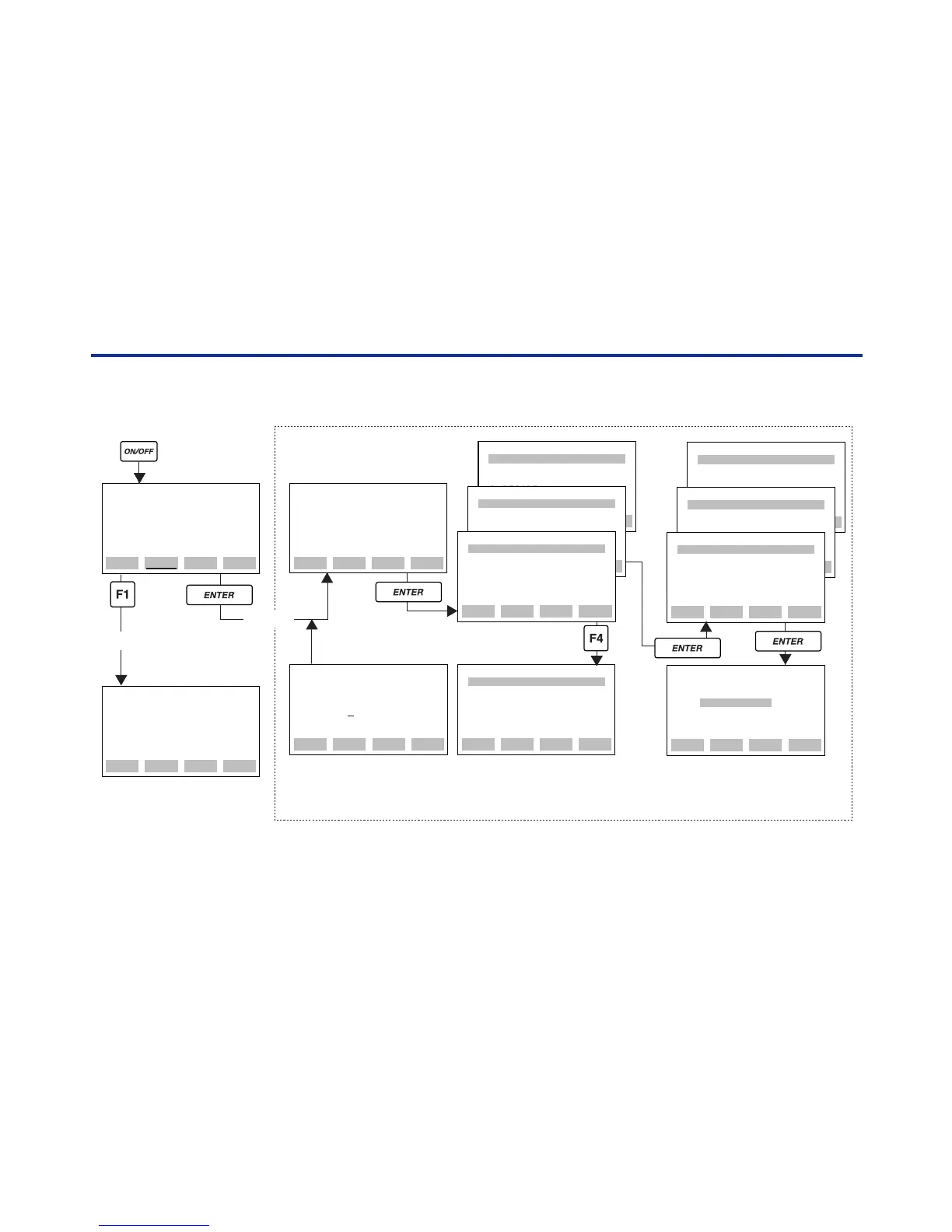

Figure 4.3 BT200 Function Configuration
