4. BT200 BASIC OPERATIONS
4.1 KEY LAYOUT AND DISPLAY

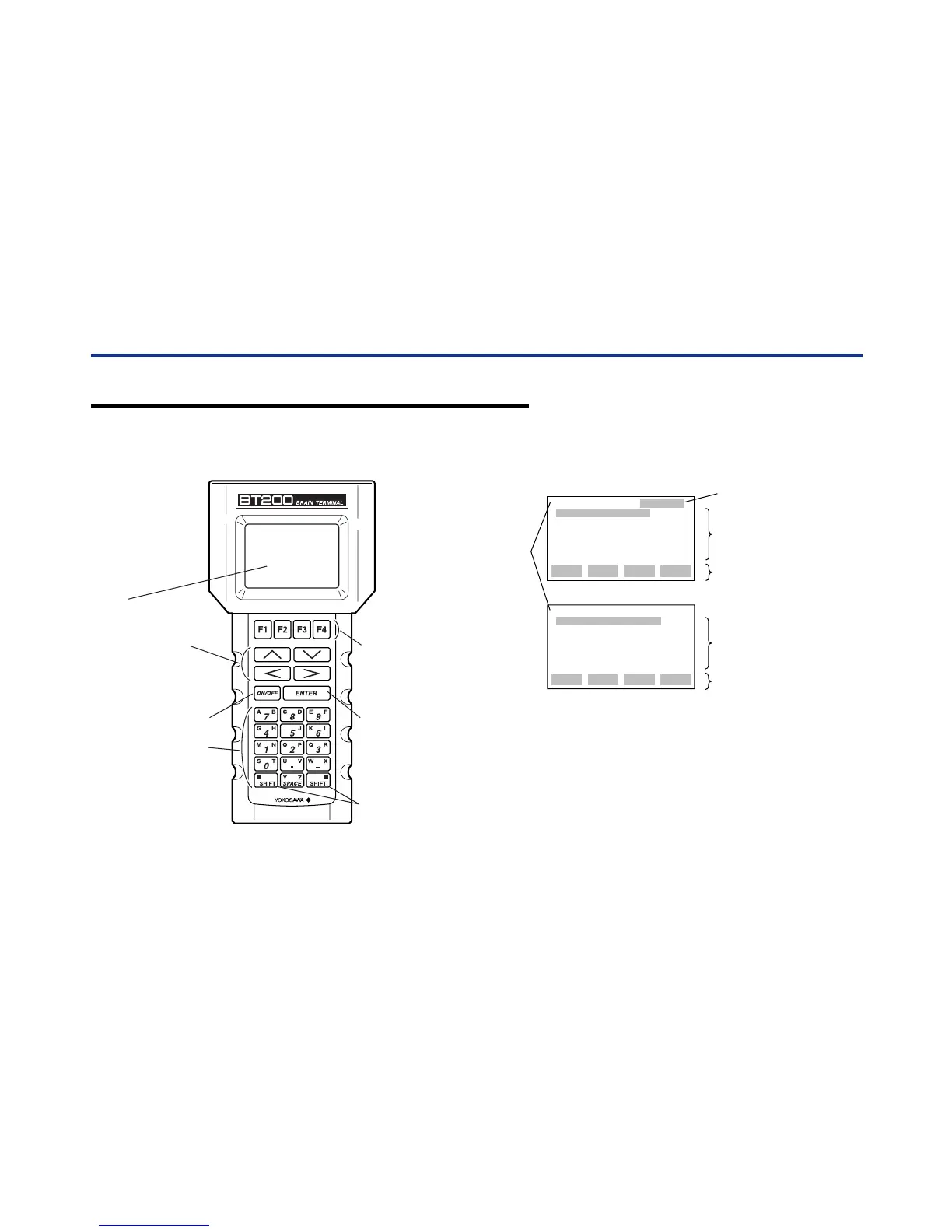

F0401.EPS
LCD
(21 character8 lines)
Movement keys
· Select items.
· Move the cursor.
· Change pages.
Power ON/OFF key
Alphanumeric keys
· Enter digits.
· Enter letters in
combination with the
shift keys.
Shift keys
ENT key
· Enters selected items.
· Sets up input data on the
connected instrument.
· Runs BT200 functions.
Function keys
Use to execute the
commands displayed at 
the bottom of the screen.
PARAM
A10:OUTPUT
100.0 %
A11:ENGR. OUTPUT
1000 mmH2O
A20:AMP TEMP
23 deg C
MENU
A:DISPLAY
B:SETTING
C:ADJUST 
I:CALIBRATION
K:TEST
M:CHECK DATA
BATTERY
HOME SET ADJ ESC
HOME SET ADJ PARM
Panel title
Function commands
MENU PANEL
Messages
Menu choices
(up to six displayed)
PARAMETER PANEL
Parameters
(up to three displayed)
Function commands
Figure 4.1 Key Layout
