(3) CONNECTION TO SIGNAL CONDITIONER
ESC (signal conditioner communication card) or
EXT (extension card) is provided with a BRAIN
TERMINAL connector (see Figure 3.2.b).
A 5-pin connector cable for the BRAIN TERMI-
NAL is supplied when the BRAIN TERMINAL
comes with /C1 options. This cable is also
available at extra cost.

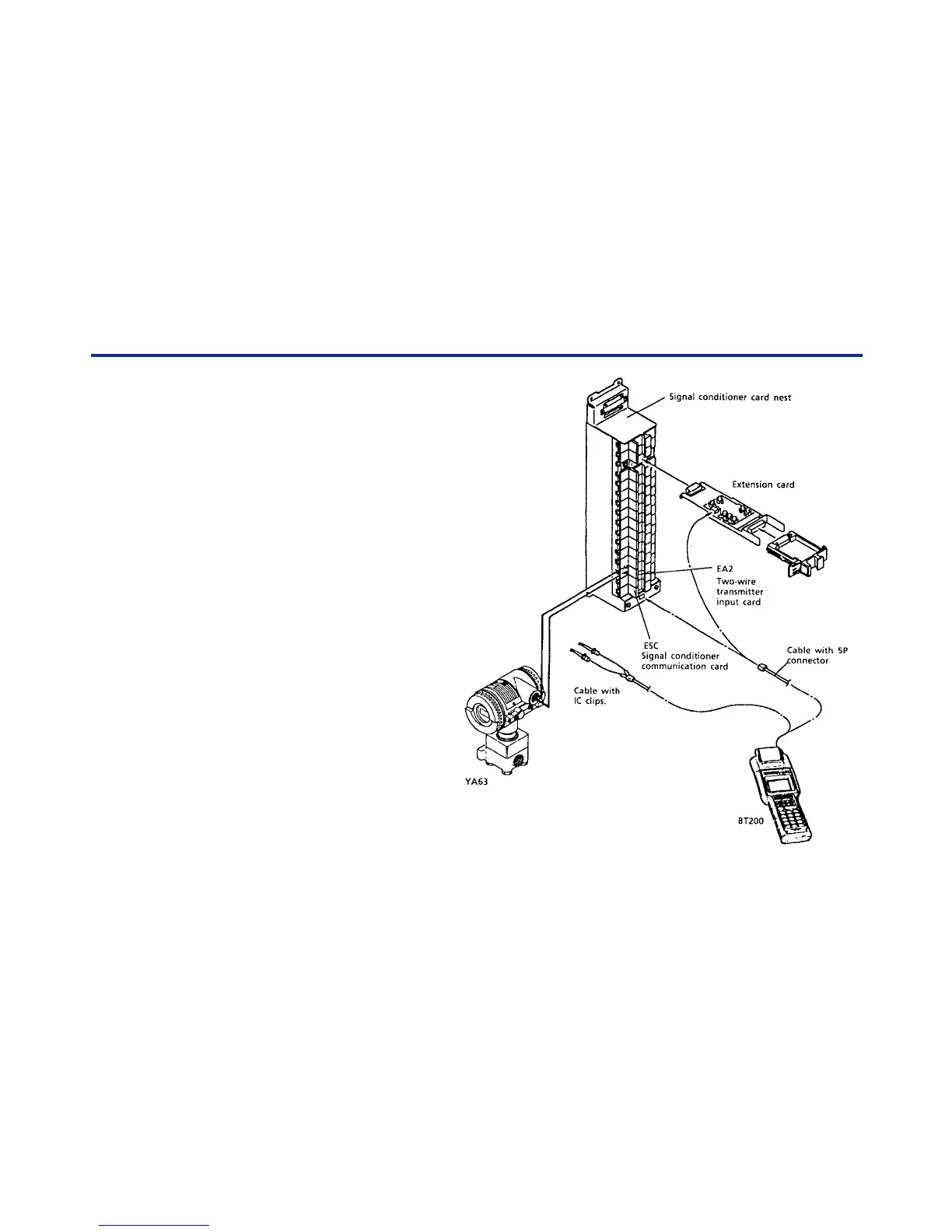

Figure 3.2.b Connection to Signal Conditioner
