2.4 Analyzing/Searching Data

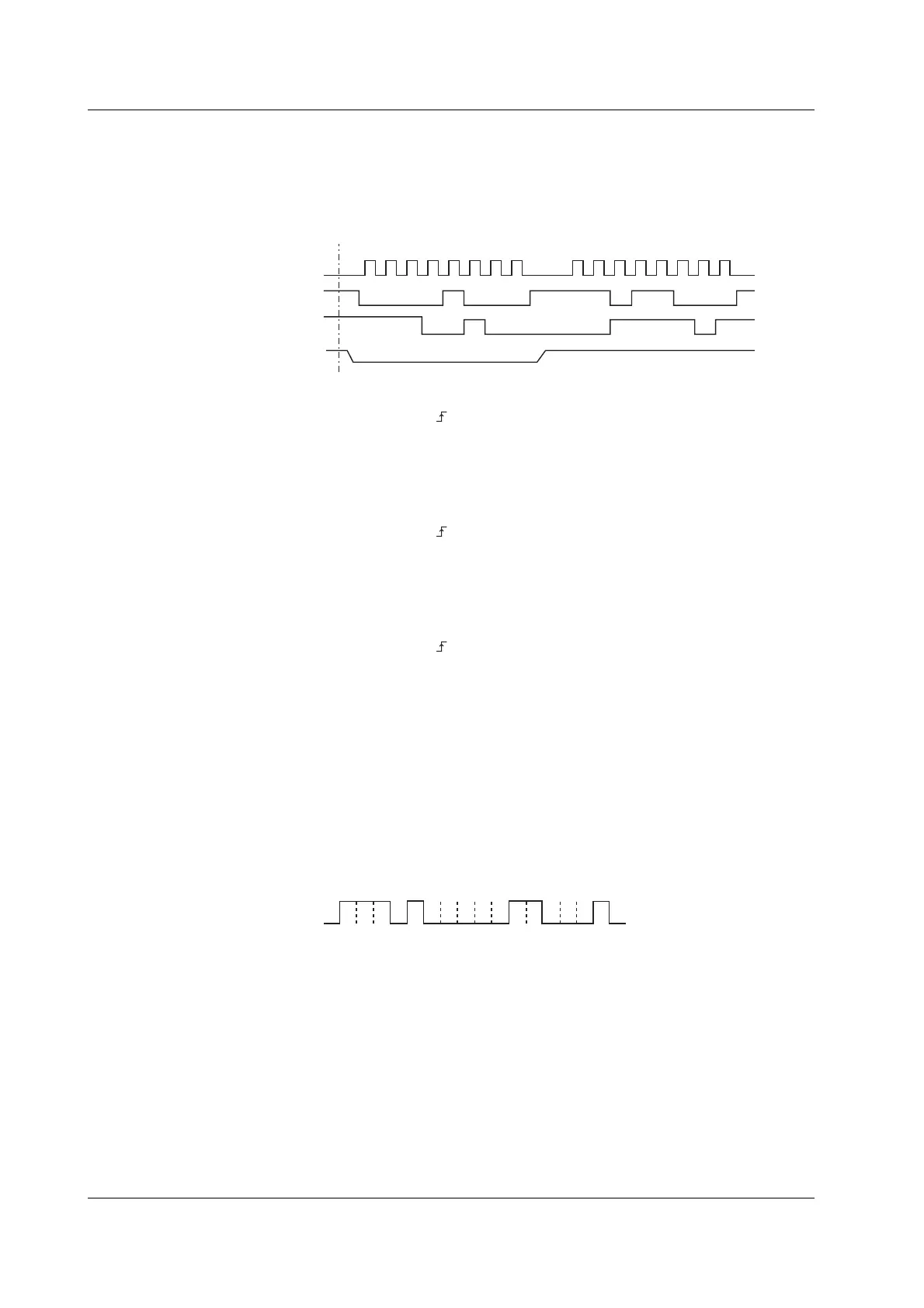

• Setting the Reference Point
Select the reference point used to start the analysis from the following:
Trigger Position: Set the reference point to the trigger position.
Manual: Set the reference point in the range of –5 to +5 divisions.
Clock
Data1
Data2
CS
Reference point
00
0
01000
11
0
11000
11
1
00100
00
1
1110
1
12
3
45678
12
3
45678
Bit order: MSB First
When Clock (CH1) = and CS (CH4) = L
Analysis number (No.): 0
Data1 hexadecimal display (Dt1): 08
Data2 hexadecimal display (Dt2): E4
Enable state of the CS signal (CS): L
When Clock (CH1) =
and CS (CH4) = H
Analysis number (No.): 0
Data1 hexadecimal display (Dt1): D8
Data2 hexadecimal display (Dt2): 3D
Enable state of the CS signal (CS): H
When Clock (CH1) =
and CS (CH4) = X
Analysis number (No.): 0 1
Data1 hexadecimal display (Dt1): 08 D8
Data2 hexadecimal display (Dt2): E4 3D
Enable state of the CS signal (CS): L H
• Setting the Bit Order
Select MSB or LSB according to the data flowing through the bus.
MSB First: Select this when the data input/output signal is flowing through the bus
MSB first.
LSB First: Select this when the data input/output signal is flowing through the bus
LSB first.
Data
1
1
1
0
1
0
0
0
0
0
1
1
0
00
1
When set to MSB First: E831
When set to LSB First: 71C8
Items to Be Analyzed
The following data can be analyzed:
• Historical data.
• Data that is displayed when the waveform acquisition is stopped.
• Loaded acquisition data (ACQ data).
Analysis is performed only on the waveform selected by “Select Record” for historical
data.
