2-14
IM 701610-61E

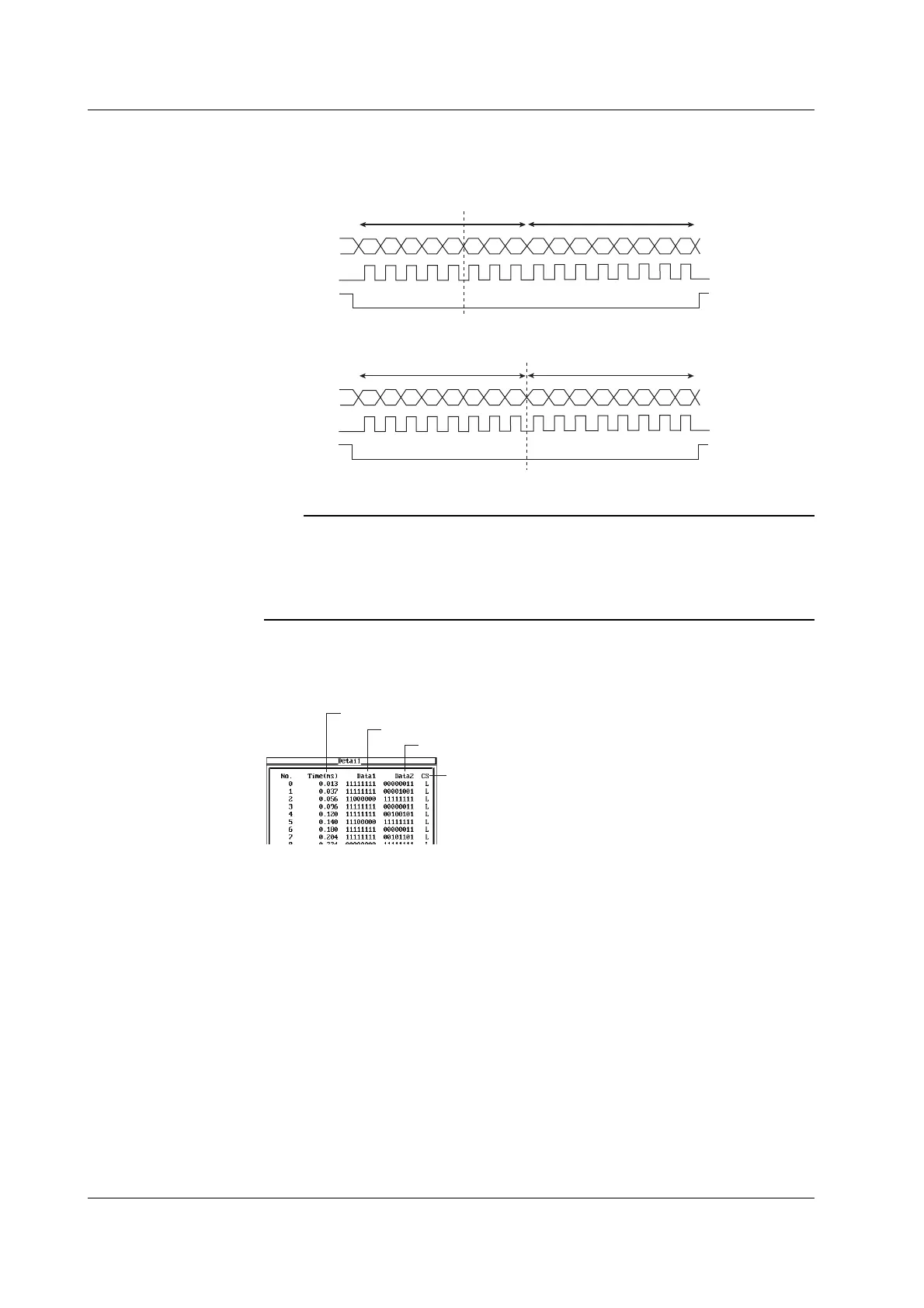

2.4 Analyzing/Searching Data
• When the CS signal is set:
Byte containing the reference point (However, if the reference point is located
between two bytes, the first detected byte after the reference point)
Reference point
No.-1
12
3
45678
Data
Clock
No.0
12
3
45678
Reference point
No.0
12
3
45678
Data
Clock
No.1
12
3
45678
CS
CS
Note
• If you execute the analysis and select (highlight) an arbitrary byte in the list of analysis
results, the Zoom Position moves to the head of that byte. In addition, if you move the Zoom
Position, the highlighting moves to the corresponding byte in the list of analysis results.
• If the CS signal is set and the CS signal waveform on the Main screen does not contain
points of change from H to L or L to H, the data input/output signal is not analyzed.
Detailed Display of the Analysis Results
The figure below shows the detailed display of the analysis results.
Time from the reference point
Binary (or hexadecimal display) of Data1
Binary (or hexadecimal display) of Data2
CS signal state
"*" is displayed to the left of Data1 or Data2 at the byte
where the indefinite data exists
In the detailed display screen, the data corresponding to the specified number is
highlighted.
In the waveform display screen, the data corresponding to the specified number is
displayed in the ZOOM display.
To Next Page
