YOKOGAWA DL1640 User Manual

2-22
IM 701610-61E
2.6 Communication Commands

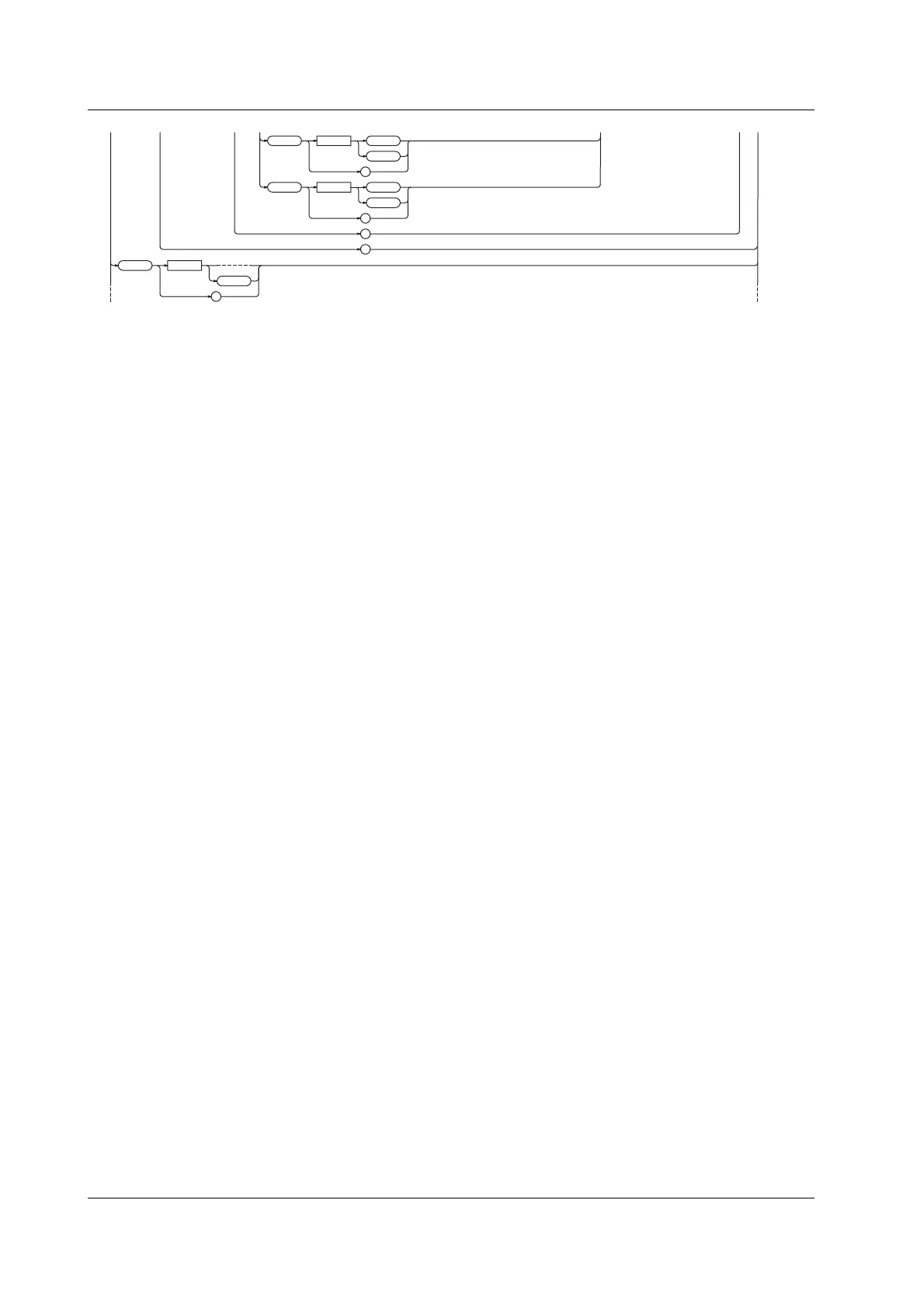

TYPE <Space>
SPIBus
?
SOURce <Space> DATA1
DATA
2
?
TYPE <Space> FRAMe
INDefinite
?
?
?
:SEARch:SPI?
Function Queries all settings related to the SPI analysis
function.
Syntax :SEARch:SPI?
Example :SEARCH:SPI? -> :SEARCH:SPI:ANALYZE:
SETUP:CLOCK:LEVEL 1.000E+00;
HYSTERESIS 0.3;POLARITY RISE;:
SEARCH:SPI:ANALYZE:SETUP:DATA1:
MODE 1;LEVEL 1.000E+00,0.000E+00;:
SEARCH:SPI:ANALYZE:SETUP:DATA2:
MODE 1;LEVEL 1.000E+00,0.000E+00;:
SEARCH:SPI:ANALYZE:SETUP:CS:CHANNEL4:
MODE 1;ESTATE LOW;LEVEL 1.000E+00;:
SEARCH:SPI:ANALYZE:SETUP:CS:
ESTATE LOW;:SEARCH:SPI:ANALYZE:
SETUP:RPOINT TRIGGER;
MPOSITION 0.00000;
BITORDER MSBFIRST;:SEARCH:SPI:
SEARCH:TYPE FRAME;PFORMAT BINARY;
SOURCE DATA1;DATA:BYTE 8;
PATTERN1 “10X10X10”;
PATTERN2 “0X10X10X”;
PATTERN3 “X10X10X1”;
PATTERN4 “01X01X01”;
PATTERN5 “1X01X01X”;
PATTERN6 “X01X01X0”;
PATTERN7 “X10X10X1”;
PATTERN8 “11010101”
:SEARch:SPI:ANALyze?
Function Queries all settings related to the SPI analysis
execution.
Syntax :SEARch:SPI:ANALyze?
Example :SEARCH:SPI:ANALYZE? -> :SEARCH:SPI:
ANALYZE:SETUP:CLOCK:LEVEL 1.000E+00;
HYSTERESIS 0.3;POLARITY RISE;:
SEARCH:SPI:ANALYZE:SETUP:DATA1:
MODE 1;LEVEL 1.000E+00,0.000E+00;:
SEARCH:SPI:ANALYZE:SETUP:DATA2:
MODE 1;LEVEL 1.000E+00,0.000E+00;:
SEARCH:SPI:ANALYZE:SETUP:CS:CHANNEL4:
MODE 1;ESTATE LOW;LEVEL 1.000E+00;:
SEARCH:SPI:ANALYZE:SETUP:CS:
ESTATE LOW;:SEARCH:SPI:ANALYZE:
SETUP:RPOINT TRIGGER;
MPOSITION 0.00000;BITORDER MSBFIRST
:SEARch:SPI:ANALyze:ABORt
Function Aborts the SPI analysis execution.
Syntax :SEARch:SPI:ANALyze:ABORt
Example :SEARCH:SPI:ANALYZE:ABORT
:SEARch:SPI:ANALyze:EXECute
Function Executes the SPI analysis.
Syntax :SEARch:SPI:ANALyze:EXECute
Example :SEARCH:SPI:ANALYZE:EXECUTE
:SEARch:SPI:ANALyze:SETup?
Function Queries all settings related to the SPI analysis
conditions.
Syntax :SEARch:SPI:ANALyze:SETup?
Example :SEARCH:SPI:ANALYZE:SETUP? ->
:SEARCH:SPI:ANALYZE:SETUP:CLOCK:
LEVEL 1.000E+00;HYSTERESIS 0.3;
POLARITY RISE;:SEARCH:SPI:ANALYZE:
SETUP:DATA1:MODE 1;
LEVEL 1.000E+00,0.000E+00;:SEARCH:
SPI:ANALYZE:SETUP:DATA2:MODE 1;
LEVEL 1.000E+00,0.000E+00;:SEARCH:
SPI:ANALYZE:SETUP:CS:CHANNEL4:
MODE 1;ESTATE LOW;LEVEL 1.000E+00;:
SEARCH:SPI:ANALYZE:SETUP:CS:
ESTATE LOW;:SEARCH:SPI:ANALYZE:
SETUP:RPOINT TRIGGER;
MPOSITION 0.00000;BITORDER MSBFIRST
:SEARch:SPI:ANALyze:SETup:BITorder
Function Sets the bit order of the display of the SPI
analysis data results or queries the current
setting.
Syntax :SEARch:SPI:ANALyze:SETup:BITorder
{MSBFirst|LSBFirst}
:SEARch:SPI:ANALyze:SETup:BITorder?
Example :SEARCH:SPI:ANALYZE:SETUP:
BITORDER MSBFIRST
:SEARCH:SPI:ANALYZE:SETUP:BITORDER?
-> :SEARCH:SPI:ANALYZE:SETUP:
BITORDER MSBFIRST
