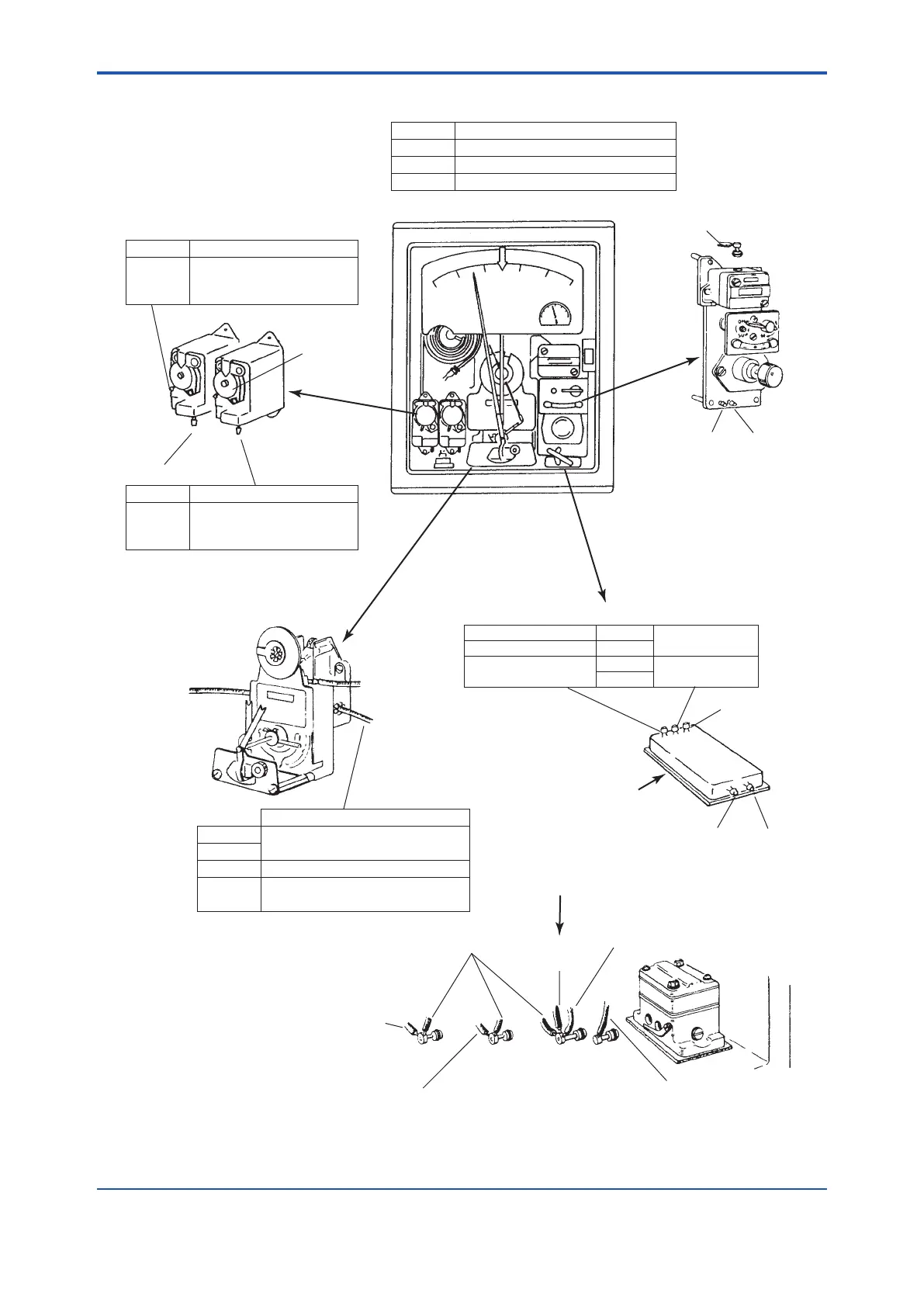

5.13 InternalPneumaticConnectionIdentications
F0524.ai
To integral
restrictor
To proportional bellows
To output gauge
To proportional
bellows
P+I
P
P+D
P+I+D
To derivative restrictor
To nozzle in control unit
Manifold
With Auto-Man Transfer System
To output gauge
Air supply Output
To auto-man
Transfer system
To nozzle in control unit
Auto-man transfer system
Air supply Output
From manifold
Control Unit
Integral bellows
from integral
assembly output
Nozzle
connection
To integral bellows
To manifold
P
P+I
P+D
P+I+D
Proportional Action
Proportional + Integral Actions
Proportional + Derivative Actions
Proportional + Integral + Derivative
Plugged
To Integral Restrictor
Plugged
P
P+I
P+D
P+I+D
To Proportional
Bellows
To Derivative
Restrictor
Key to
Abbreviations
P
P+I
P+D
P+I+D
Proportional Bellows from
Manifold
Derivative assembly output
Tee connecting Deriv. output and
Integral restrictor conns.
P+I
P+I+D
To Manifold
To tee connecting Deriv.
output and Reset restrictor
conns.
P+D
P+I+D
To Proportional Bellows
To tee connecting Deriv.
output and Integral
restrictor conns.
Reset and Derivative Assemblies
Without Auto-Man Transfer System
