2.4 ModelandSufxCodes
Model SufxCodes Description
MC43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pneumatic Indicating Controller
Control Mode -A1 . . . . . . . . . . . . . . . . . . . . . . . . .
-A2 . . . . . . . . . . . . . . . . . . . . . . . . .
-A3 . . . . . . . . . . . . . . . . . . . . . . . . .
-A4 . . . . . . . . . . . . . . . . . . . . . . . . .
-A5 . . . . . . . . . . . . . . . . . . . . . . . . .
-A7 . . . . . . . . . . . . . . . . . . . . . . . . .
-B4 . . . . . . . . . . . . . . . . . . . . . . . . .
On-off
Proportional
Proportional plus derivative
Proportional plus integral
Proportional plus integral plus derivative
Defferential gap
Batch plus proportional plus integral
*1
Auto/Manual
Transfer Switching
N. . . . . . . . . . . . . . . . . . . . . . .
C. . . . . . . . . . . . . . . . . . . . . . .
None
With 2-position switch, regulator
Remote Pneumatic
Set Point
-N . . . . . . . . . . . . . . . . . .
-P . . . . . . . . . . . . . . . . . .
None
With remote pneumatic set point
*2
Style *A . . . . . . . . . . . . . . . Style A
Base Instrument Option
/ (refer to GS 02M04B01-00EN)
Measuring Element and Option
/// (refer to GS 02M04B01-00EN)
*1: Batch plus proportional plus derivative not additional for pneumatic set point and /TRS (refer to additional feature below).
*2: Remote pneumatic set point is not available together with option TRS or ECRB.

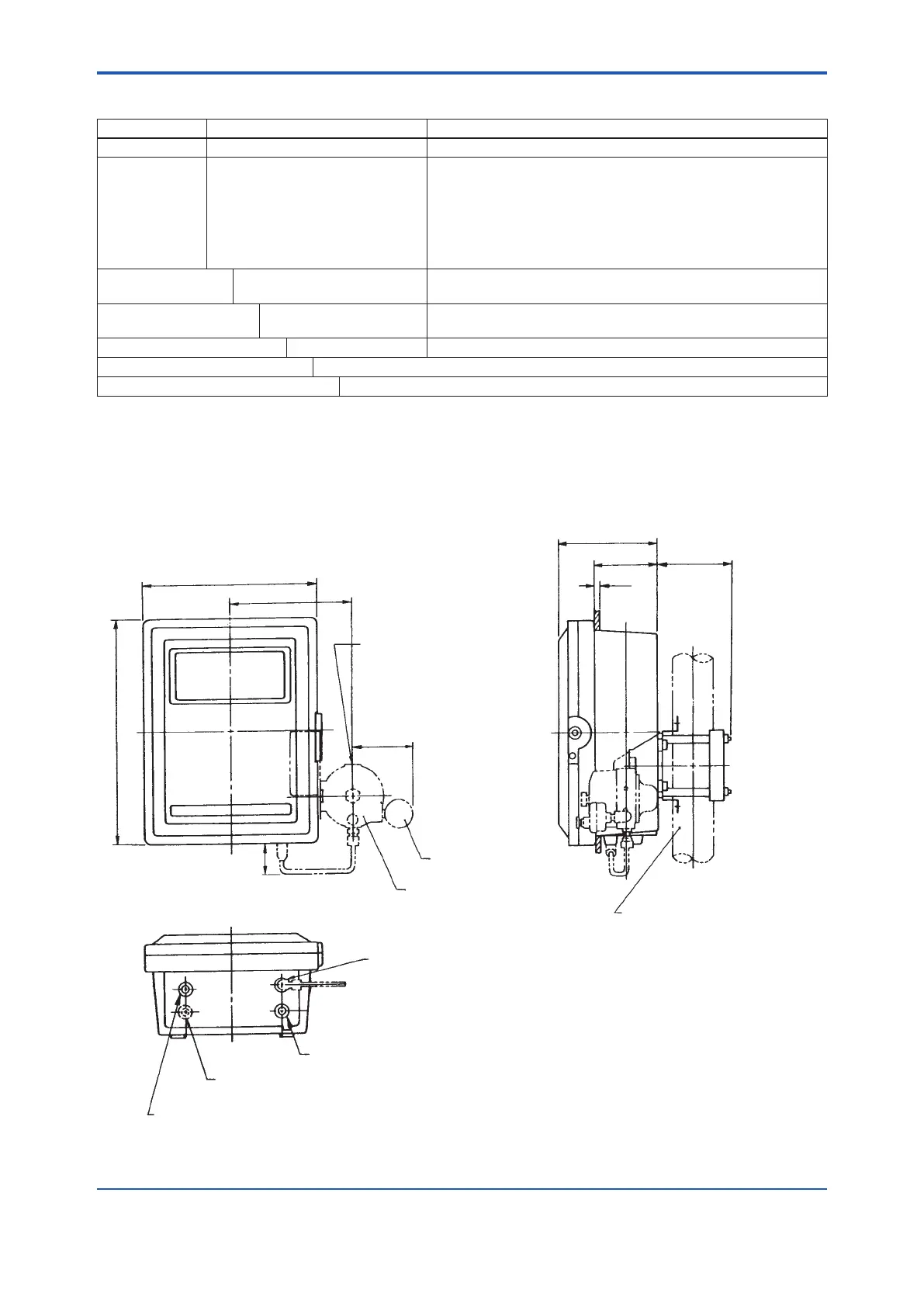

2.5 ExternalDimension
Air Supply Connection
(Without Air Supply Set)
Output Connection
Optional Connection
Process Connection
Nominal 50 mm (2-inch) Pipe
(Supplied by User)
Air Supply Connection
(With Air Supply Set)
Air Supply Gauge
(Option)
Air Supply Set
(Option)
Unit: mm
F0206.ai
149
95
1 to 10
108.5
89
182.5
260
340
56
