Helical Element (P51 and P52) and Mounting Parts

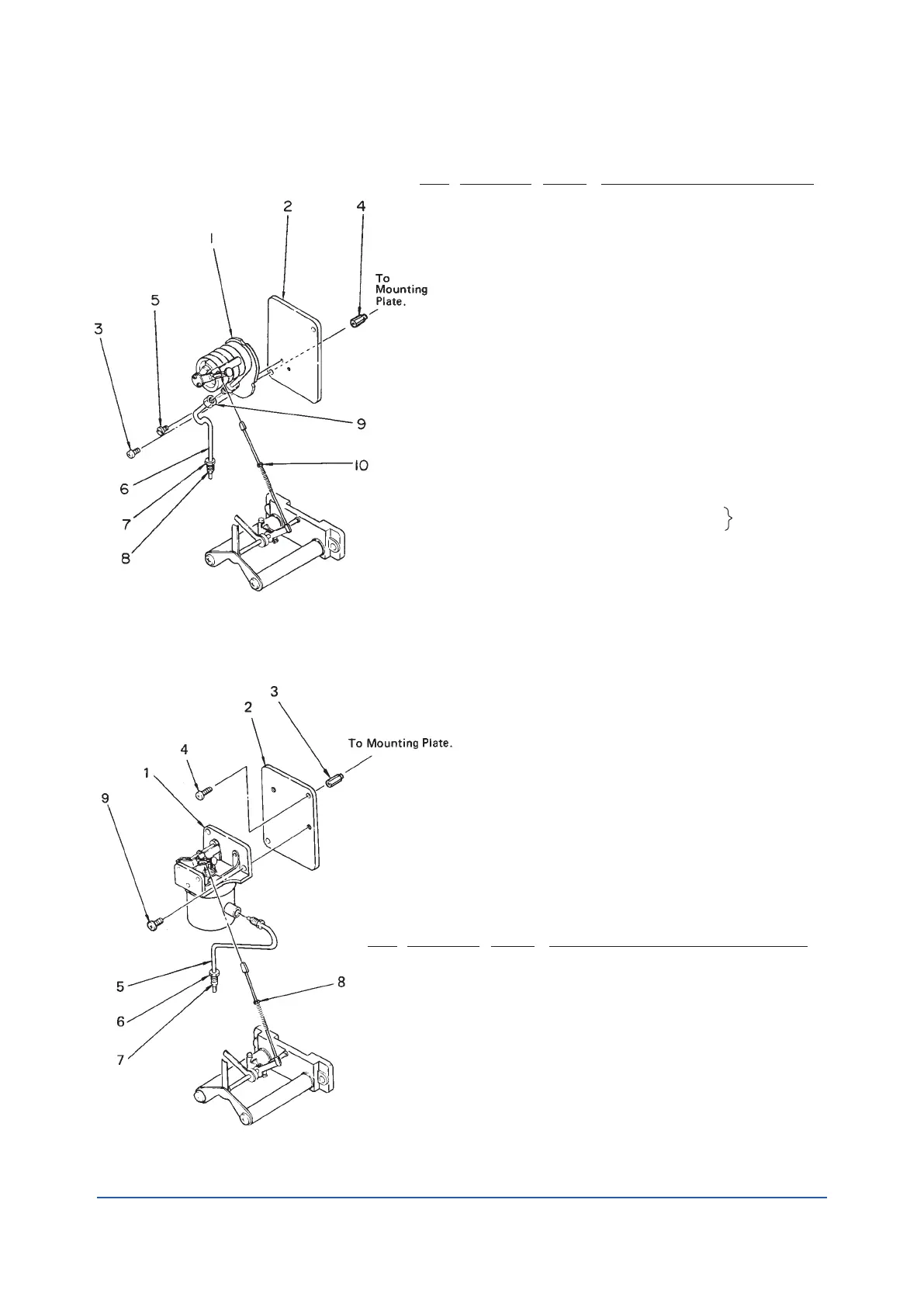

Helical Element Assembly
for ranges 1.37 to 1.51 MPa
for ranges 1.52 to 1.85 MPa
for ranges 1.86 to 2.28 MPa
for ranges 2.29 to 2.76 MPa
for ranges 2.77 to 3.44 MPa
for ranges 3.45 to 4.13 MPa
for ranges 4.14 to 5.51 MPa
for ranges 5.52 to 7.00 MPa
for ranges 7.0 to 8.2 MPa
for ranges 8.3 to 13.7 MPa
for ranges 13.8 to 20.6 MPa
Adapter Plate
Pan H. Screw, M4 x 8
Column
Screw
Tube (not over 9.7 MPa)
Tube Assembly (9.8 MPa or greater)
Compression Screw
Sleeve
Nut
Link Assembly
1
2
3
4
5
6
7
8
9
10
Below
P0106MA
P0106MB
P0106MC
P0106ME
P0106MF
P0106MK
P0106ML
P0106MM
P0106MN
P0106MR
P0106MS
0041518
Y9408JS
F9123JJ
F9147CW
F9123JQ
F9120PE
B0102XK
B0102XL
P0106KF
X0101BE
1
1
2
2
1
1
1
1
2
1
1
Item Part No. Description
Qty
(not over
9.7 MPa)
Receiver Element (PR1) and Mounting Parts
Receiver Element Assembly
for ranges, 20 ~ 100 kPa and 0.2 ~ 1.0 bar
Adapter Plate
Column
Pan H. Screw, M4 x 8
Tube
Compression Screw
Sleeve
Link Assembly
Screw
1
2
3
4
5
6
7
8
9
U0101CP
U0101AN
F9123JJ
Y9408JS
F9123JM
U0100CB
X0107AA
X0101BM
0006537
1
1
2
2
1
2
2
1
2
Item Part No. Description
Qty
