2
CMPL
12D08B02-23E
2nd Edition : Nov
.2008 (YK)
2
(Option Code :
/SCT)
Option Code :
/H
/H2
(Option Code :
/P
M)
3

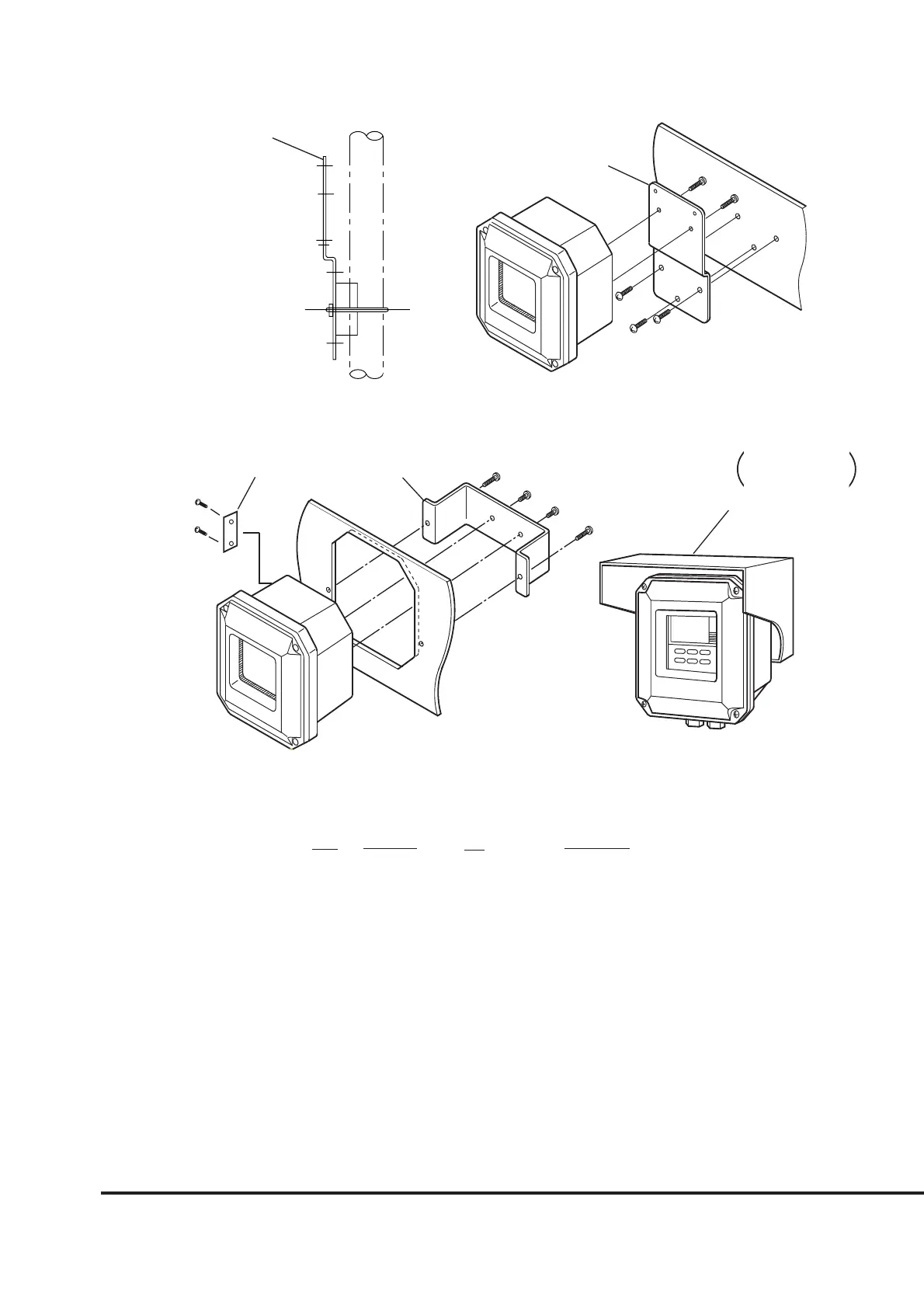

Item
Parts No.
Qty
Description
1
K9171SS
1
Universal Mount Set (/U)
K931
1BT
1
T
ag Plate (/SCT)
2
K931
1KA
1
3
K931
1KG
1
4
K9660JA
1
4
Fitting Assembly
(/PM)
Hood Assembly
(/H)
Hood Assembly
(/H2)
1
Pipe/W
all Mounting Hardware
(Option Code : /U)
Panel Mounting Hardware
1
Hood to sun protection
107
109
Table of Contents
Default Chapter
2
Table of Contents
2
Preface
5
1 Introduction and General Description
10
Instrument Check
10
Application
12
2 General Specifications
14
Specifications
14
Operating Specifications
15
Model and Suffix Codes
18
Control Drawing SC202S Ma HART ® Specification (Iecex)
19
Control Drawing SC202S Ma HART ® Specification
21
Control Drawing of SC202S Ma HART ® Specification (CSA)
23
Control Drawing of SC202S FF/PB Specification (Iecex)
24
Control Drawing of SC202S FF/PB Specification (ATEX)
25
Control Drawing of SC202S FF/PB Specification
26
Control Drawing of SC202S FF/PB Specification
28
Control Drawing of SC202S FF/PB Specification
30
Control Drawing of SC202S FF/PB Specification
31
Control Drawing of SC202S FF/PB Specification (CSA)
32
3 Installation and Wiring
34
Installation and Dimensions
34
Installation Site
34
Mounting Methods
34
Preparation
36
Cables, Terminals and Glands
36
Wiring of Sensors
37
General Precautions
37
Additional Precautions for Installations in Hazardous Areas - Intrinsic Safe
37
Installation In: Hazardous Area-Non-Incendive
38
Wiring of Power Supply
38
General Precautions
38
Connection of the Power Supply
38
Sensor Wiring
39
Other Sensor Systems
40
Sensor Cable Connections Using Junction Box (BA10) and Extension Cable (WF10)
40
4 Operation; Display Functions and Setting
43
Operator Interface
43
Explanation of Operating Keys
44
Setting Passcodes
45
Passcode Protection
45
Display Examples
45
Display Functions
46
5 Parameter Setting
47
Maintenance Mode
47
Introduction
47
Commissioning Mode
48
Introduction
48
Range
49
Hold
50
Temperature Compensation
51
Temperature Compensation Selection
52
Service Code
53
5-3.Service Codes
54
Parameter Specific Functions
54
Temperature Measuring Functions
56
Temperature Compensation Functions
58
Ma Output Functions
60
User Interface
62
Communication Setup
64
General
64
Test and Setup Mode
64
6 Calibration
66
When Is Calibration Necessary
66
Calibration Procedure
67
Calibration with HOLD Active
68
7 Maintenance
69
Periodic Maintenance for the EXA 202 Transmitter
69
Periodic Maintenance of the Sensor
69
8 Troubleshooting
70
Diagnostics
70
Off-Line Checks
70
On-Line Checks
70
9 Usp Water Purity Monitoring
72
9-1.What Is USP
72
9-2.What Is Conductivity Measurement According to USP
72
9-3.USP in the SC202
72
9-4.Setting up SC202 for USP
73
10 Spare Parts
74
User Setting for Non-Linear Output Table (Code 31And 35)
75
User Entered Matrix Data (Code 23 to 28)
75
11 Appendix 1
75
Matrix Data Table (User Selectable in Code 22)
76
Sensor Selection
77
General
77
Selecting a Temperature Sensor
77
Setup for Other Functions
77
User Setting Table
78
Error Codes
80
Device Description (DD) Menu Structure
81
Preface
83
12 Appendix 2
83
Wiring Diagrams
84
Example of Non-Explosionproof System
84
Example of Intrinsically Safe Explosionproof System
84
Sensor Wiring
86
Supplement of Parameter Setting
87
Set Cell Constant (Service Code 03)
87
Temperature Sensor (Service Code 10)
87
Automatic Return (Service Code 50)
87
Error Setting (Service Code 53)
88
E5 and E6 Setting (Service Code 54)
88
Communication with PH201G (Style B) Distributor (Service Code 60)
88
13 Appendix 3 QUALITY INSPECTION
89
SC202G 2-Wire Conductivity Transmitter
89
SC202S 2-Wire Conductivity Transmitter
93
SC202G, SC202S 2-Wire Conductivity Transmitter
97
(Fieldbus Communication)
97
SC202G, SC202S 2-Wire Conductivity Transmitter
101
(Profibus Communication)
101
Parts List
105
Revision Record
109
4
