IM 12D08B02-01E
2-4 Appendix
12-3. Sensor wiring
Refer to figure 12-1, which includes drawings that outline sensor wiring. The EXA SC202 can be used
with a wide range of commercially available sensor types if provided with shielded cables, both from
Yokogawa and other manufacturers. The sensor systems from Yokogawa fall into two categories, the
ones that use fixed cables and the ones with separate cables.
To connect sensors with fixed cables, simply match the terminal numbers in the instrument with the iden-
tification numbers on the cable ends. For details, refer to corresponding IMs.
11
12
13
14
15
16
Electrode
Temperature
Electrode
11
12
13
14
15
16
Electrode
11
12
13
14
15
16
SC4AJ Conductivity Sensor
(two-electrode type)
SC8SG Conductivity Detector
(two-electrode type, four-electrode type)
SC210G Conductivity Detector
(two-electrode type)
Temperature
Temperature

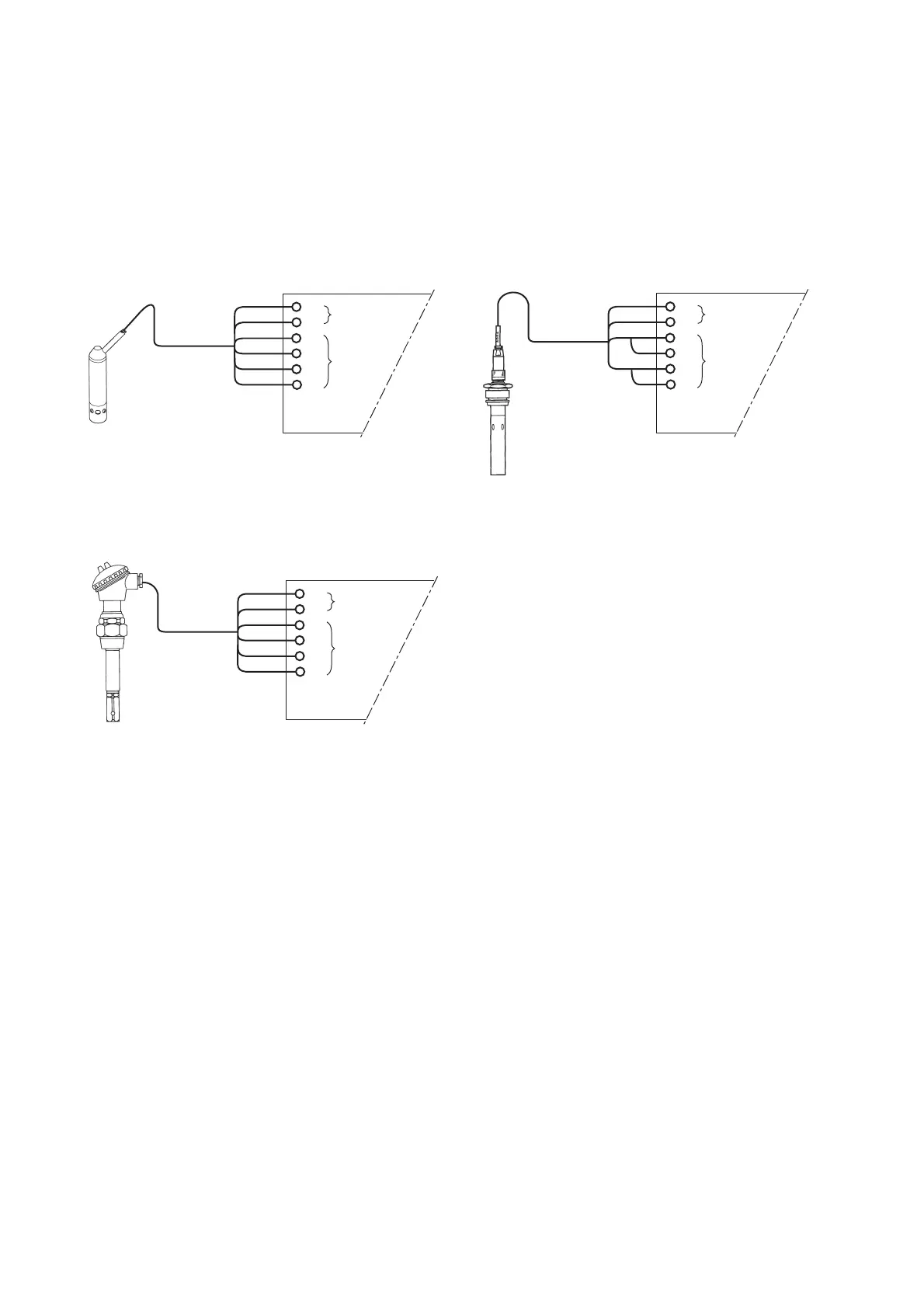

Figure 12-1. Sensor wiring diagrams
To Next Page
