YOKOGAWA SC202G User Manual

IM 12D08B02-01E
2-6 Specifications

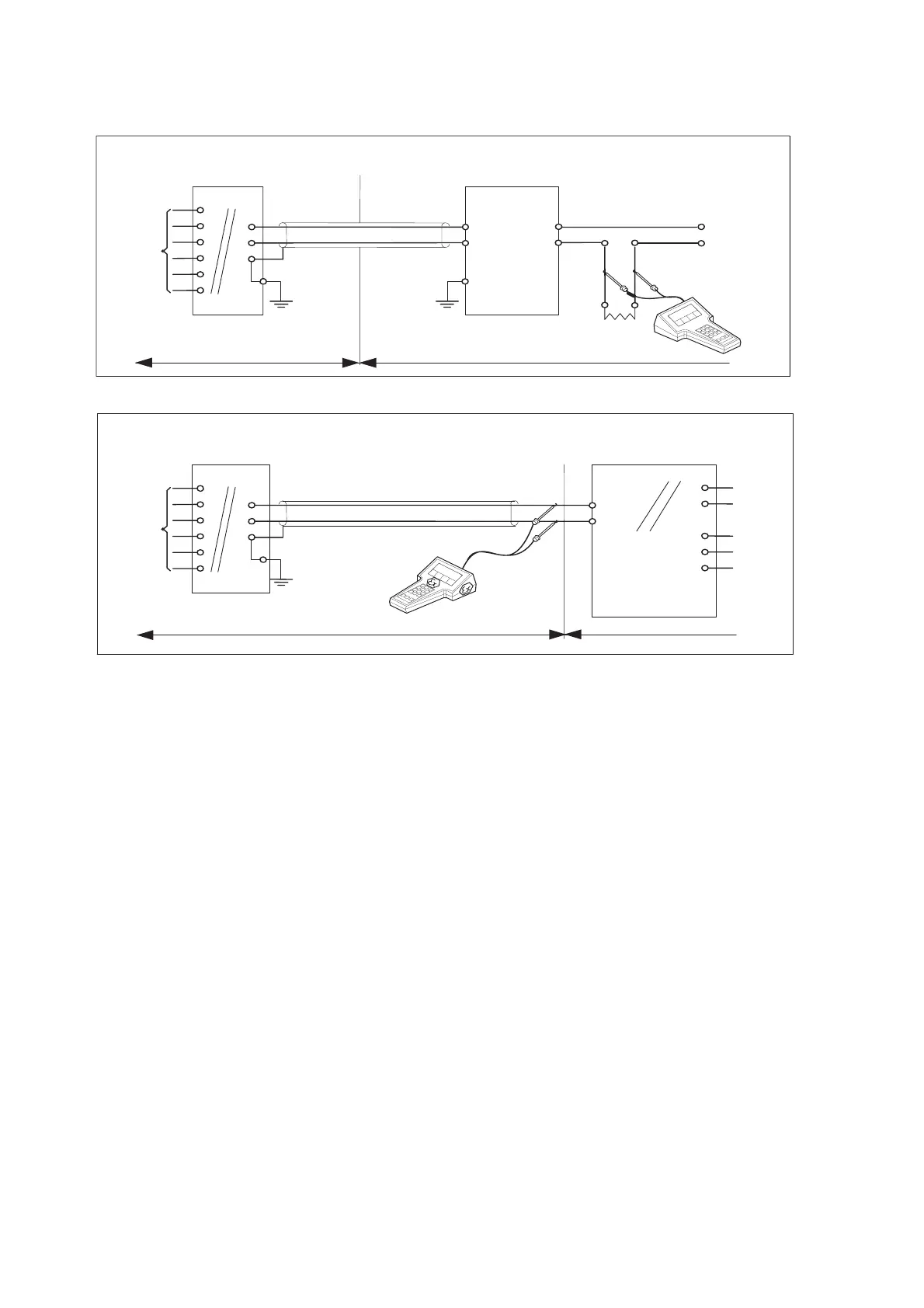

2-4. Control Drawing SC202S mA HART
®
Specification (IECEx)
SC202S
(Conductivity/Resistivity-transmitter)
Safe area
Uo = 31.5 Volt DC
Io = 100 mA
Po = 1.2 Watt
Ex ia or ib Certified Repeater
Power Supply
(HART Compatible)
Output
Supply
SENSOR(S)
terminals 11-16
+
_
G
SENSOR(S)
terminals 11-16
Zone 0 or 1
Hazardous area Safe area
+
_
G
Functional
earth
earth
Intrinsically safe design
IECEx standard Ex ia IIC: T4 for ambient temp. < 55°C
T6 for ambient temp. < 40°C
Certificate nr. IECEx KEM 06.0053X
SC202S
+
_
Load
Resistance
Ex ia or ib
Certified safety barrier or power
with Rint=300
:
Io = 100 mA
Uo = 31.5 Volt DC
Zone 0 or 1
Hazardous area
earth
+
_
24 volts DC Nominal
Supply Voltage.
Intrinsically safe design
IECEx standard Ex ia IIC: T4 for ambient temp. < 55°C
T6 for ambient temp.< 40°C
Certificate nr. IECEx KEM 06.0053X
(HART compatible)
(Conductivity/Resistivity-transmitter)
Functional
Functional
・ Sensor(s) are of a passive type to be regarded as ‘simple apparatus’.
・ Electrical data of the SC202S.
- Supply and output circuit (terminals + and -):
Maximum input voltage U
i
= 31.5 V. Maximum input current I
i
= 100 mA.
Maximum input power P
i
= 1.2 W.
Effective internal capacitance C
i
= 22 nF.
Effective internal inductance L
i
= 35 PH.
- Sensor input circuit (terminals 11 through 16):
Maximum output voltage U
o
= 14.4 V. Maximum output current I
o
= 13 mA.
Maximum allowed external capacitance Co = 59 nF (for SC202S-A),
Co = 2.9 PF (for SC202S-N).
Maximum allowed external inductance Lo = 200 mH (for SC202S-A),
Lo = 450 mH (for SC202S-N).
・ Barriers and power supply specification must not exceed the maximum values
as shown in the diagram above. These safety descriptions cover most of
the commonly used industry standard barriers, isolators and power supplies.
・ The Hand Held Communicator must be of a IECEx certified intrinsically safe type
in case it is used on the intrinsically safe circuit in the hazardous area or of a
IECEx certified non-incendive type in case it is used in the non-incendive circuit
in the hazardous area.
