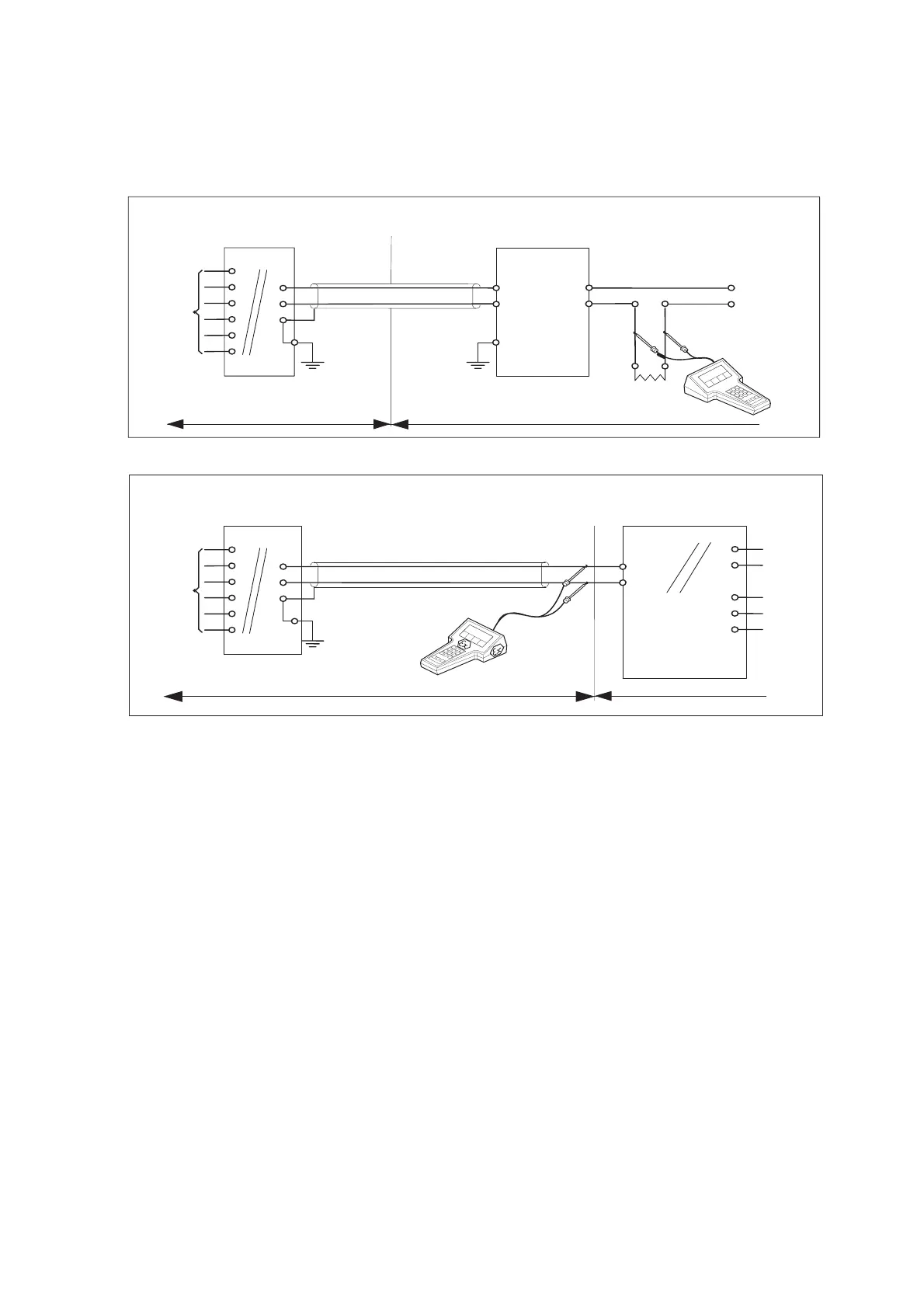

2-5. Control Drawing SC202S mA HART
®
Specifi cation (ATEX)
SC202S
(Conductivity/Resistivity-transmitter)
Safe area
Uo = 31.5 Volt DC
Io = 100 mA
Po = 1.2 Watt
EEx ia or ib Certified Repeater
Power Supply
(HART Compatible)
Output
Supply
SENSOR(S)
terminals 11-16
+
_
G
SENSOR(S)
terminals 11-16
Hazardous area Safe area
+
_
G
earth earth
Intrinsically safe design
CENELEC standard EEx ia IIC: T4 for ambient temp. < 55°C
T6 for ambient temp. < 40°C
Certificate nr. KEMA 06ATEX0220 X
SC202S
+
_
Load
Resistance
EEx ia or ib
Certified safety barrier or power
with Rint=300
:
Io = 100 mA
Uo = 31.5 Volt DC
Hazardous area
+
_
24 volts DC Nominal
Supply Voltage.
Intrinsically safe design
CENELEC standard EEx ia IIC: T4 for ambient temp. < 55°C
T6 for ambient temp.< 40°C
Certificate nr. KEMA 06ATEX0220 X
(HART compatible)
(Conductivity/Resistivity-transmitter)
Zone 0 or 1
Zone 0 or 1
Functional
Functional
earth
Functional
・ Sensor(s) are of a passive type to be regarded as ‘simple apparatus’.
・ Electrical data of the SC202S.
- Supply and output circuit (terminals + and -):
Maximum input voltage U
i
= 31.5 V. Maximum input current I
i
= 100 mA.
Maximum input power P
i
= 1.2 W.
Effective internal capacitance C
i
= 22 nF.
Effective internal inductance L
i
= 35 PH.
- Sensor input circuit (terminals 11 through 16):
Maximum output voltage U
o
= 14.4 V. Maximum output current I
o
= 13 mA.
Maximum allowed external capacitance Co = 59 nF (for SC202S-A),
Co = 2.9 uF (for SC202S-N).
Maximum allowed external inductance Lo = 200 mH (for SC202S-A),
Lo = 450 mH (for SC202S-N).
・ Barriers and power supply specification must not exceed the maximum values as
shown in the diagram above. These safety descriptions cover most of the commonly
used industry standard barriers, isolators and power supplies.
・ The Hand Held Communicator must be of a ATEX certified intrinsically safe type in
case it is used on the intrinsically safe circuit in the hazardous area or of a ATEX
certified non-incendive type in case it is used in the non-incendive circuit in the
hazardous area.
